Ding dong.
Made for each other.

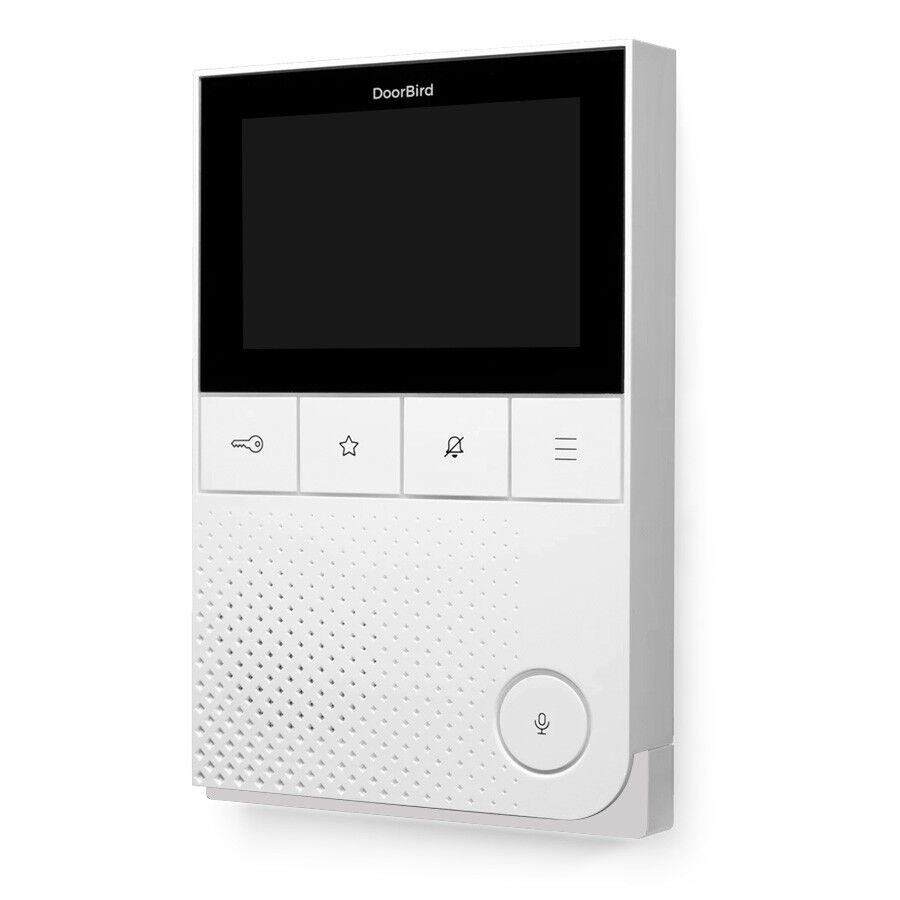

The DoorBird Video Indoor Station is the perfect addition to your DoorBird Video Intercom.
PLAY THE VIDEO
Made in Germany.
DoorBird combines innovative features with precision German engineering.
4“ True colour display
Interactive, true-colour touch display protected by scratch-resistant tempered Gorilla® glass.
2-Way audio
The built-in microphone and speaker (up to 105dB) provides excellent, crisp 2-way communication.
Doorbell chimes
Choose from over 50 built-in doorbell sounds and adjust their volume to suit your preference.
Free cloud recording
Free cloud recording means you will never miss a visitor – playback from anywhere using your smartphone.
Door / Gate release
With the press of a button, you can unlock your gate or door strikes connected to your DoorBird Intercom.
Easy installation
Includes wall-mount bracket and supports Wi-Fi or PoE (Power over Ethernet) for easy installation.
How it works.
Installation and setup is simple – anyone can do it.
Your DoorBird Intercom and Indoor Video Station connects to your local network via Wi-Fi or a network cable. If connected using a network cable, it can also be supplied with power via Power over Ethernet (PoE).
The finer details
General | |
| Mounting: | Surface-mounted - mounting bracket included |
| Dimensions: | 179.5 x 115 x 25 mm (H x W x D) |
| Weight: | 336 g |
| Operating conditions: | 0 to +55°C - Humidity 0% to 85% (non condensing) |
| Power supply: | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Power consumption: | 5 W |
| Connectors: | • LAN/PoE (T+, T-, R+, R-) • Digital input (0 V, 0 A (NO)) #1 (e.g. for storey-call button) • Digital input (0 V, 0 A (NO)) #2 (e.g. for second storey-call button) • Bi-stable latching relay #1 (max. 24 V DC / AC, 1 Ampere - e.g. for electric door opener or elevator) • Bi-stable latching relay # 2 (max. 24 V DC / AC, 1 Ampere - e.g. for electric door opener or elevator) • Bi-stable latching relay # 3 (max. 24 V DC / AC, 1 Ampere - e.g. for electric door opener or elevator) • 15 - 48 V DC input (+, -) - max. 15 W |
Display | |
| Dimensions: | 4“ True Color LCD |
| Touch: | Yes, capacitive |
| Resolution: | 800 x 480 px |
| IPS:: | Yes - In-Plane Switching Technology |
| Glass: | Scratch-resistant tempered Gorilla® glass |
Audio | |
| Audio components: | Speaker and microphone, echo and noise cancellation (AEC, ANR) |
| Audio streaming: | Two-way duplex |
Network | |
| WiFi: | 802.11 b/g/n 2.4 GHz |
| Ethernet: | Connector, PoE 802.3af Mode-A |
