Grandstream 2.5 GigE PoE Injector

SKU: GS-POE-MG Category:

Price range: $35.00 through $42.00

The Grandstream GS-POE15W-MG (15W) and GS-POE30W-MG (PoE+ 30W) are reliable Power over Ethernet (PoE) injectors designed for both home and commercial networks. They provide power and data over a single Ethernet cable—ideal for powering Wi-Fi access points, IP phones, IP cameras and other PoE devices where a power outlet isn’t nearby. Perfect for clean installations in homes, offices, retail and warehouses, these Grandstream PoE injectors offer a simple, cost-effective way to add PoE or PoE+ to your network without needing to upgrade your network switch.

Free 12 Month Extended Warranty included: 2 Years

Earn up to 42 Reward Points.

Found this product at a lower price?
Description

Grandstream

2.5 GigE PoE or PoE+ Injector.
grandstream-2-5-gige-poe-injector-head
  • Standards - IEEE 802.3 af

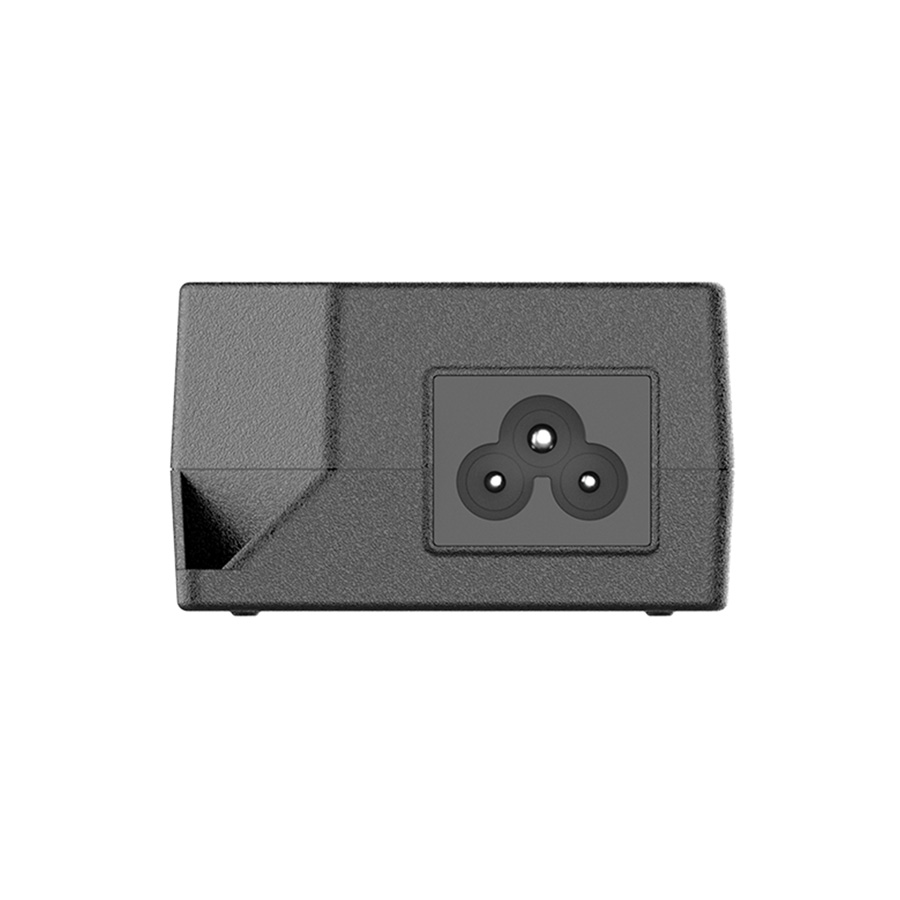

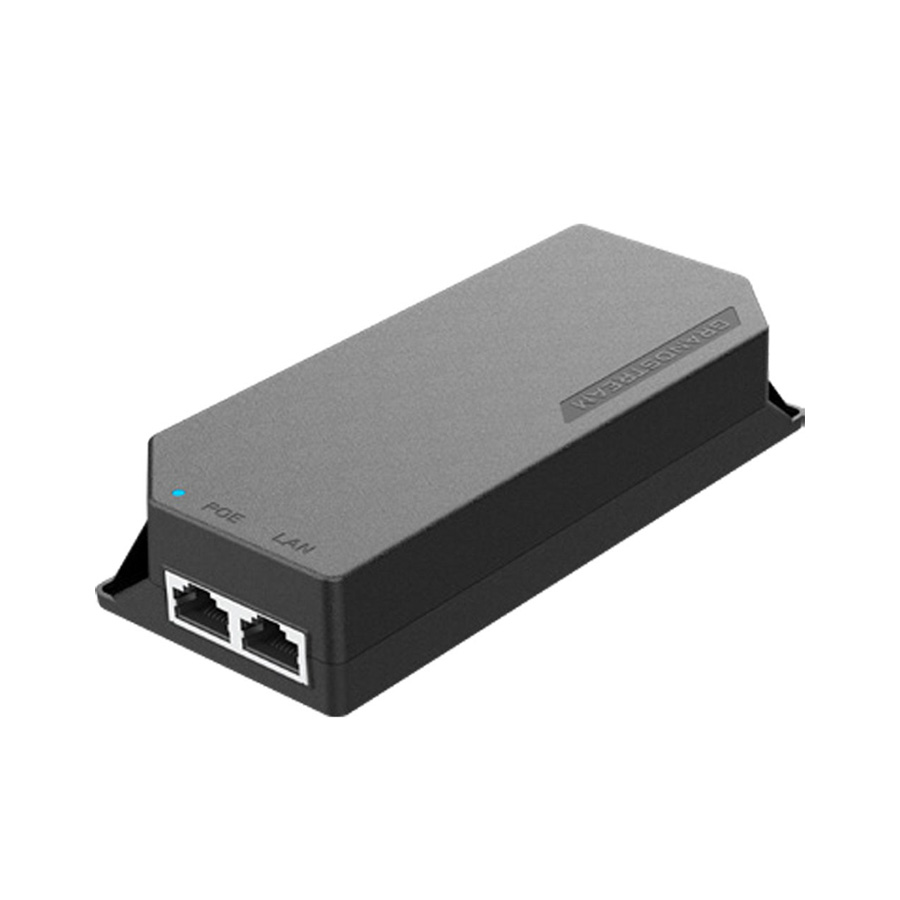

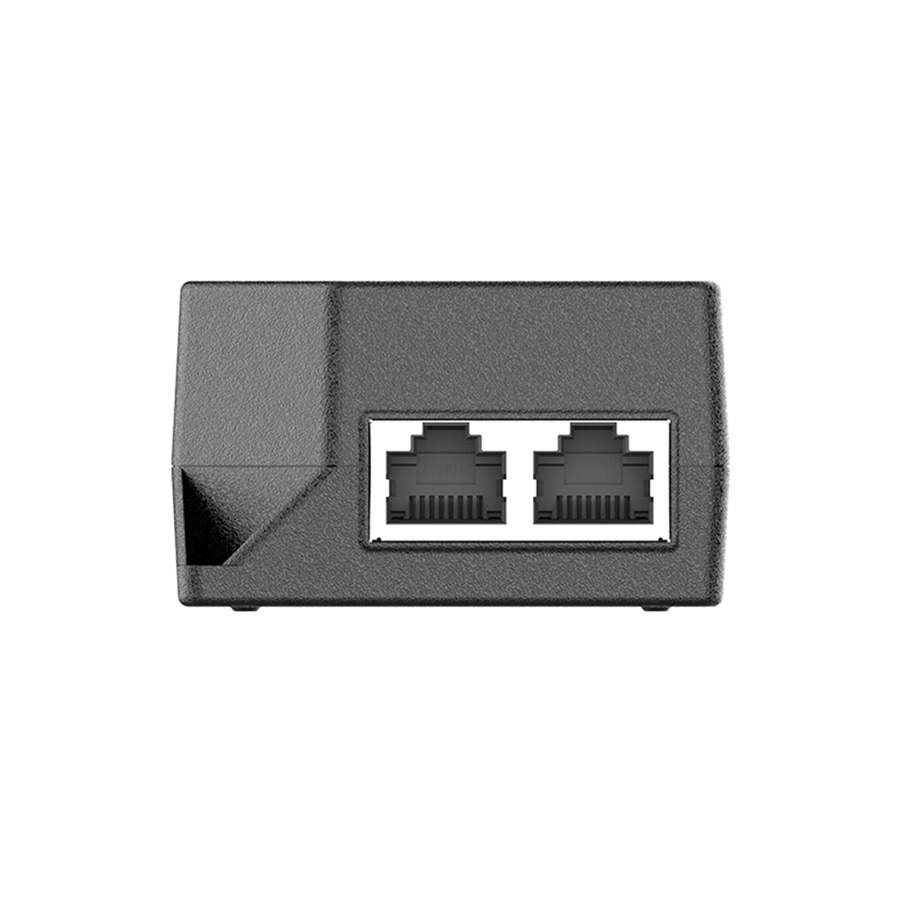

  • Interface Ports - 1xAC power Jack, 1x2.5Gbps RJ45 LAN IN, and
    1x2.5Gbps RJ45 LAN OUT with PoE
  • Input Voltage - 100~240VAC, 50/60Hz
  • Output Voltage -  54VDC, 1,2 +; 3,6 -
  • PoE Output Power - 20W (GS-POE15W-MG) or 30.2W (GS-POE30W-MG)
  • LED - Power On: Blue, PoE Load: Purple

The finer details

Specification GS-POE15W-MG (15W) GS-POE30W-MG (PoE+ 30W)
Standards IEEE 802.3af IEEE 802.3af/at
Interface Ports 1x AC power jack
1x 2.5Gbps RJ45 LAN IN
1x 2.5Gbps RJ45 LAN OUT with PoE
1x AC power jack
1x 2.5Gbps RJ45 LAN IN
1x 2.5Gbps RJ45 LAN OUT with PoE
Input Voltage 100–240VAC, 50/60Hz 100–240VAC, 50/60Hz
Output Voltage 54VDC (pins 1,2 +; 3,6 -) 54VDC (pins 1,2/4,5 +; 3,6/7,8 -)
PoE Output Power 20W 30.2W
LED Indicators Power On: Blue
PoE Load: Purple
Power On: Blue
PoE Load: Purple
Environmental Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (Non-condensing)
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (Non-condensing)
Dimensions (without cable) Unit: 140.55mm x 60.3mm x 35.4mm
Entire Package: 225mm x 130.5mm x 46mm
Unit: 140.55mm x 60.3mm x 35.4mm
Entire Package: 225mm x 130.5mm x 46mm
Weight Unit: 175g
Entire Package: 400g
Unit: 175g
Entire Package: 400g
Package Content GS-POE15W-MG
1.2m AC Cable
Quick Installation Guide
Certification regulatory paper
GS-POE30W-MG
1.2m AC Cable
Quick Installation Guide
Certification regulatory paper
Compliance FCC, CE, RCM, IC FCC, CE, RCM, IC
