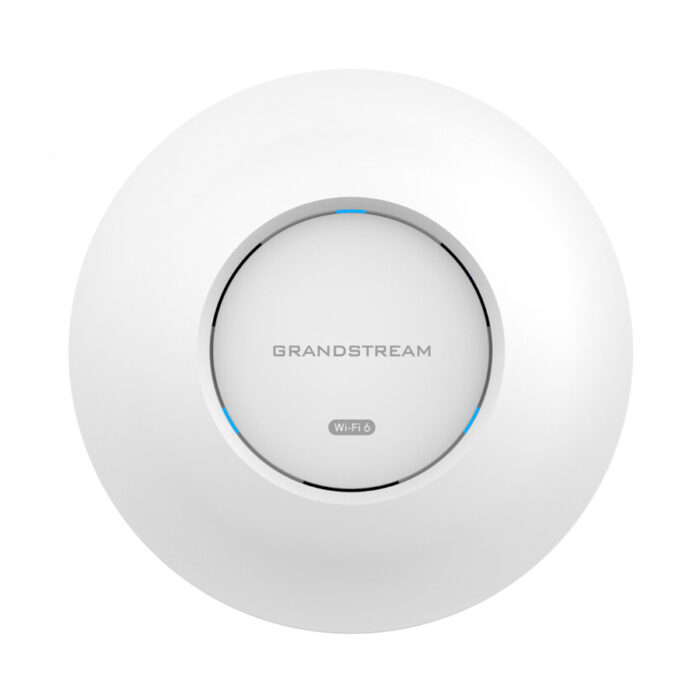

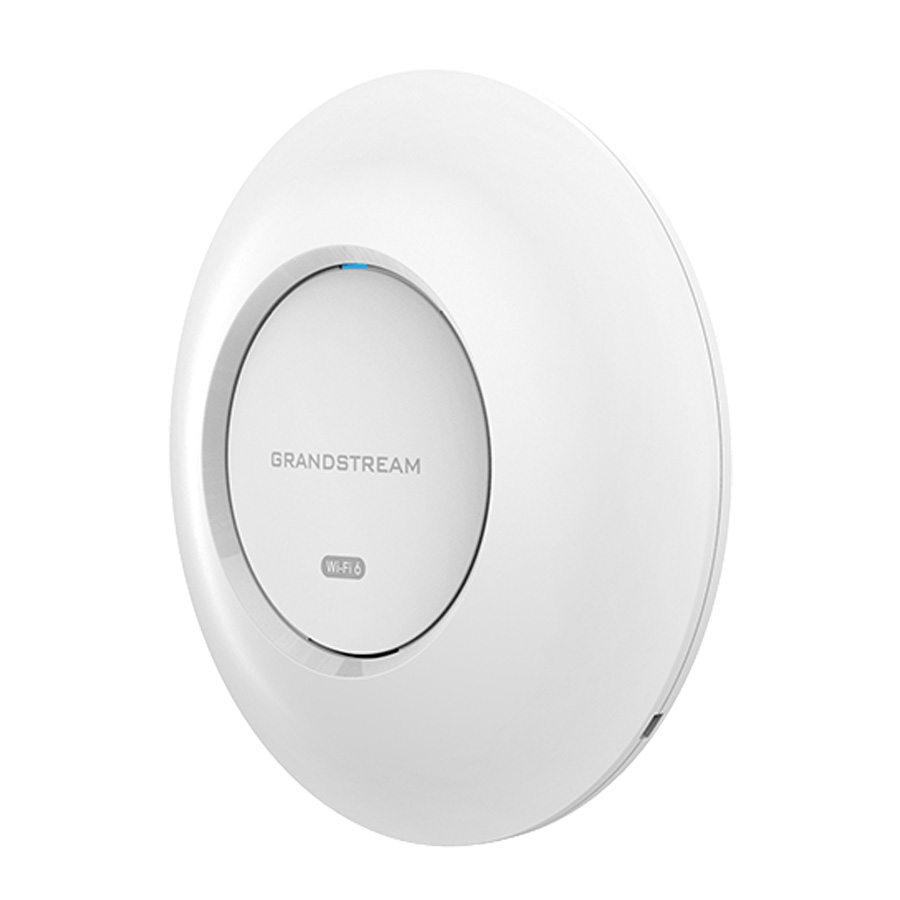

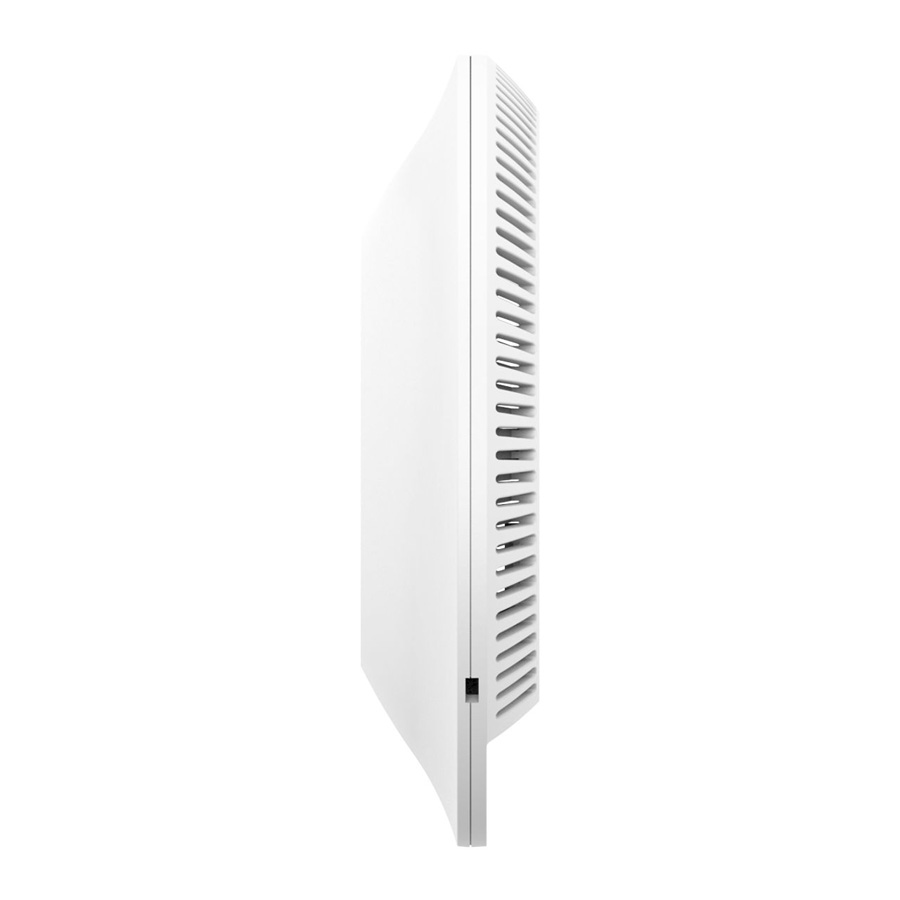

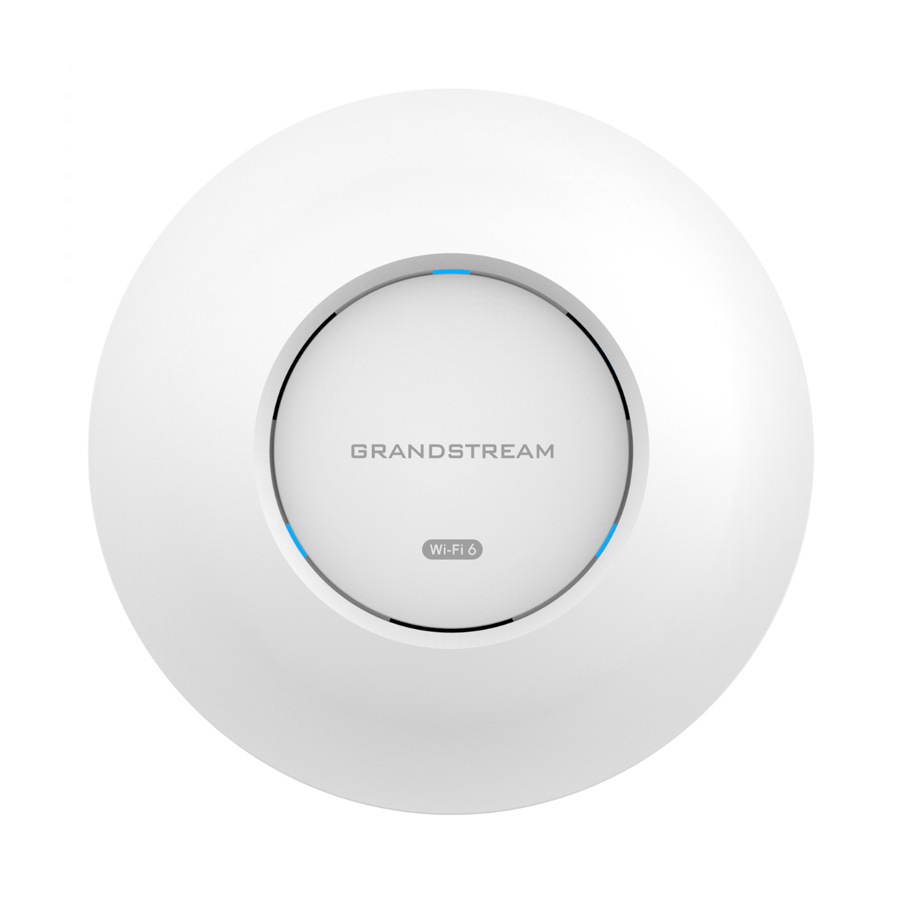

Grandstream Dual-Band Wi-Fi 6 Access Point
$141.00
The Grandstream GWN7660E is a high-performance Wi-Fi 6 (802.11ax) dual-band access point built for both modern homes and busy business networks. It delivers faster speeds, better coverage and improved efficiency for high-device environments – perfect for streaming, gaming, smart homes and work-from-home setups – as well as offices, retail and multi-user workplaces. With business-grade security, flexible management options and easy deployment, the GWN7660E is an ideal upgrade for anyone wanting reliable, future-ready wireless Wi-Fi.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream
Dual-Band Wi-Fi 6 Access Point
- 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
- Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
Dual-Band MIMO
Dual-band 2.4G 2×2:2 and 5G 3×3:2 MU- MIMO with XTRA Range Wi-Fi technology.
Gigabit
3Gbps aggregate wireless throughput and 1Gigabit wireline port.
Huge coverage
Up to 175-meter coverage
range.
Up to 256 devices
Supports up to 256 concurrently connected Wi-Fi wireless client devices.
PoE
Self power adaptation upon auto detection of PoE or PoE+.
Advanced security
Anti-hacking secure boot and critical data/control lockdown via unique digital device signatures.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
Easy management
Embedded controller and free cloud can manage itself and up to 50 GWN APs.
Full network control.
Intelligent QoS allows you to prioritise critical data streams to guarantee a smooth experience for high-bandwidth services and applications for everyone on your network.
Content and URL filtering.
Admins can easily monitor and manage network traffic thanks to URL filtering and content blocking while accessing detailed network and traffic statistics, reports and alerts.
Parental control keeps families safe.
Built-in parental controls can manage and control online time, block inappropriate content and offer network usage statistics to keep families or employees safe while online.
The finer details
| Specification | GWN7660E |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas |
5 individual internal antennas 2.4GHz x 2, gain 4.0dBi 5GHz x 3, gain 5.0dBi |
| Wi-Fi Data Rates (5GHz) |
802.11ax: 7.3 Mbps to 2402 Mbps 802.11ac: 6.5 Mbps to 867 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wi-Fi Data Rates (2.4GHz) |
802.11ax: 7.3 Mbps to 573.5 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands |
2.4GHz radio: 2400–2483.5MHz 5GHz radio: 5150–5850MHz |
| Channel Bandwidth |
2.4GHz: 20 and 40MHz 5GHz: 20, 40, 80 and 160MHz |
| Wi-Fi & System Security |
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Anti-hacking secure boot and critical data/control lockdown via digital signatures Unique security certificate and random default password per device |
| MIMO |
2x2:2 (2.4GHz) 3x3:2 (5GHz) |
| Coverage Range | Up to 175 meters |
| Maximum TX Power |
5GHz: 24dBm 2.4GHz: 24dBm |
| Receiver Sensitivity (2.4GHz) |
802.11b: -96dBm@1Mbps, -88dBm@11Mbps 802.11g: -93dBm@6Mbps, -75dBm@54Mbps 802.11n 20MHz: -73dBm@MCS7 802.11n 40MHz: -70dBm@MCS7 802.11ax 20MHz: -60dBm@MCS11 802.11ax 40MHz: -58dBm@MCS11 |
| Receiver Sensitivity (5GHz) |
802.11a: -92dBm@6Mbps, -74dBm@54Mbps 802.11n 20MHz: -73dBm@MCS7 802.11n 40MHz: -70dBm@MCS7 802.11ac 20MHz: -67dBm@MCS8 802.11ac 40MHz: -63dBm@MCS9 802.11ac 80MHz: -59dBm@MCS9 802.11ax 20MHz: -60dBm@MCS11 802.11ax 40MHz: -58dBm@MCS11 802.11ax 80MHz: -56dBm@MCS11 802.11ax 160MHz: -52dBm@MCS11 |
| SSIDs | 32 SSIDs total (16 per radio: 2.4GHz and 5GHz) |
| Concurrent Clients | 256 |

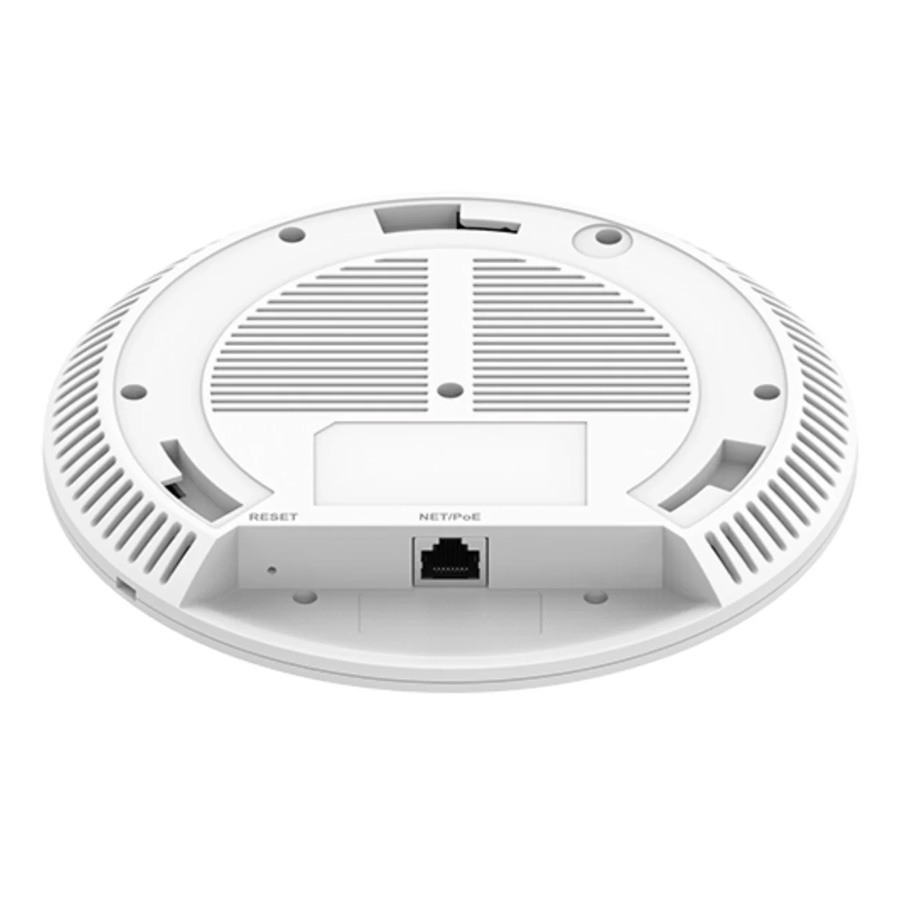

| Network Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Port |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Indoor wall mount or ceiling mount (kits included) |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management |
Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power & Green Energy Efficiency |
PoE 802.3af / 802.3at Maximum Power Consumption: 12.95W |
| Environmental |
Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% (Non-condensing) |
| Physical |
Unit Dimension: 180.4mm x 180.4mm x 40.8mm (TBD) Unit Weight: 385g Package Dimension: 228.5mm x 220mm x 79mm (TBD) Package Weight: 630g |
| Package Content | GWN7660E Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
