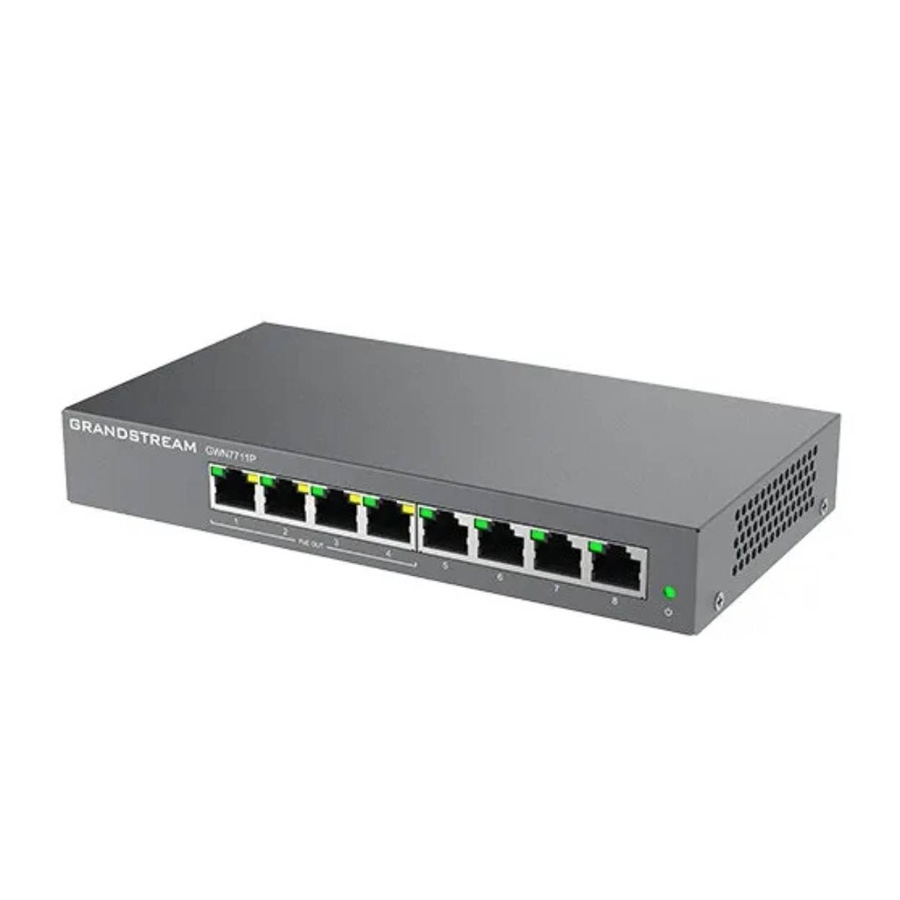

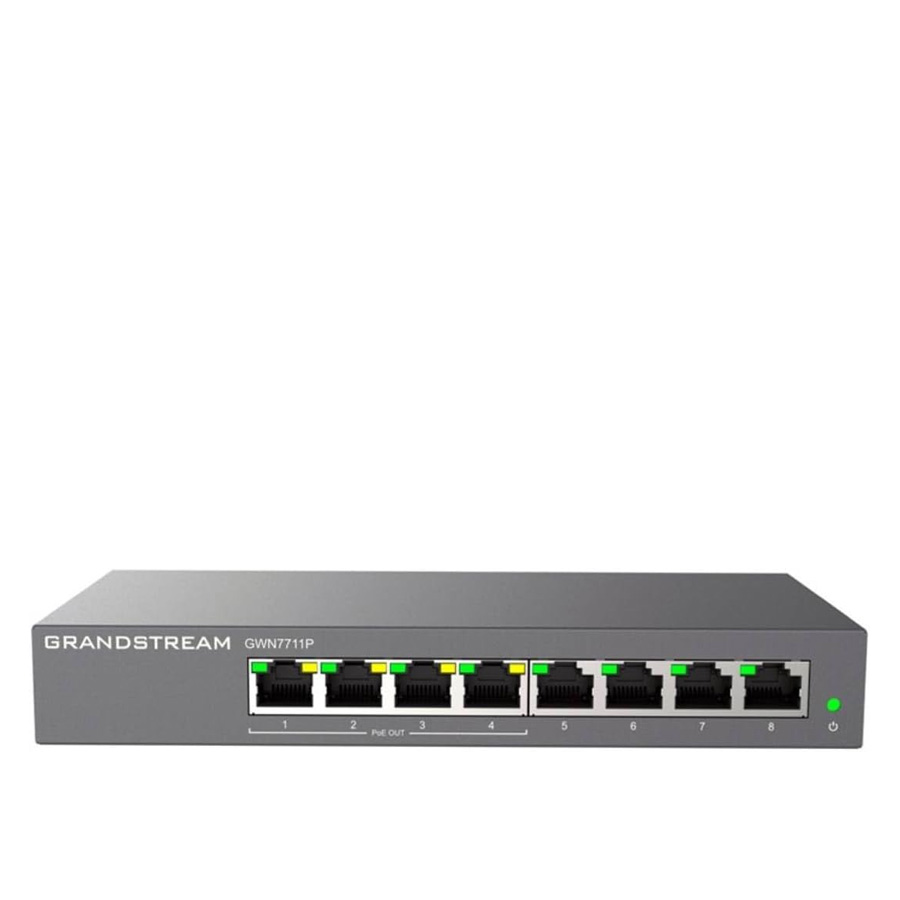

Grandstream Managed Network Switch – 8 Ports (4 x PoE)
$109.00
The Grandstream GWN7711P is a dependable managed 8 port (4 x PoE) switch designed for both smart homes and commercial networks. It powers and connects devices like Wi-Fi access points, IP cameras, IP phones and intercoms using a single Ethernet cable, making installations cleaner and more flexible. With essential managed switch features to help control traffic and improve network stability, the GWN7711P is a great fit for home offices, retail, and small business setups that need reliable PoE networking.
Only 2 left in stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream
Managed Network Switch – 8 Ports (4 x PoE)
- 8 Gigabit Ethernet ports (4 x PoE)
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports Loop Detection, Cable Test, and Port Mirror to quickly locate network faults
- IGMP snooping to improve multicast forwarding efficiency
- LLDP for automatic discovery, provisioning and management of endpoint devices
- GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms; Embedded controller to manage switch
- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
- Built-in QoS allows for prioritization of network traffic
8 x Gigabit
8 x Gigabit RJ45 Ethernet ports
4 x PoE
Smart power control to support dynamic PoE/PoE+ power allocation per port.
Fault detection
Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults.
Endpoint management
LLDP for automatic discovery, provisioning and management of endpoint devices.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
Storm Control
Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels.
Easy management
Web management; GWN App management; GDMS Networking remote management via SSH tunneling.
The finer details
| Specification | GWN7711P |
|---|---|
| Network Protocol | IPv4, IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3at |
| Gigabit Ethernet Ports | 8 |
| PoE Out Ports | 4 |
| Power Supply | External 48–53.5VDC / 1.22A |
| PoE Output |
Ports 1–4 support 802.3af/at PoE out (up to 30W per port), total 60W budget Ports 1–4 support 24VDC passive mode via UI: • Port 1 (up to 30W): 24V 4-pair VH mode 1.3A (pins 1,2,4,5 + ; 3,6,7,8 -) • Ports 2–4 (up to 15W): 24V 2-pair mode 0.65A (pins 4,5 + ; 7,8 -) Port 1 supports 48V 4-pair passive mode (up to 60W) |
| Max Total PoE Output Power | 60W |
| Maximum Output Power per PoE Port | 30W |
| Auxiliary Ports | 1× Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total Non-Blocking Throughput | 8Gbps |
| Switching Capability | 16Gbps |
| Forwarding Rate | 11.9Mpps |
| Packet Buffer | 4Mb |
| MAC Address Table | 8K MAC address capacity |
| Jumbo Frame | 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 12K / 15K |
| VLAN |
Up to 32 VLANs (out of 4K VLAN IDs) Port-based VLAN, 802.1Q VLAN Voice VLAN |
| LAG | 4 |
| Multicast | IGMP Snooping, Report Message Suppression |
| QoS |
Auto prioritization of incoming port Priority mapping; Queue scheduling (SP, WRR, WFQ) Port priority, 802.1p priority, DSCP priority Bandwidth control; Rate limit |
| DHCP | DHCP client |
| Maintenance | Backup/restore, reboot, factory reset, firmware upgrade, MAC address search, SNMP, LLDP |
| Monitoring | Port statistics, port mirroring, cable test, ping |
| Security |
Storm control; DHCP Snooping; Spanning tree; Loop prevention; PoE Watchdog; Kensington Security Slot support |
| Mounting | Desktop / Wall-mount |
| LED Indicators |
Per port: Link/Activity (Green) Ports 1–4: PoE power state (Yellow) Per device: Power (Green) |
| Environmental |
Operating: 0 to 40°C Storage: -20 to 60°C Humidity (operating/storage): 10% to 90% non-condensing |
| Dimensions (L × W × H) | Unit: 190 × 100 × 28mm; Package: 230 × 210 × 51mm |
| Enclosure | Metal |
| Weight | Unit: 0.44kg; Entire Package: 0.92kg |
| Package Content | 1× Switch, 1× QIG, 1× Power Adapter |
| Compliance | FCC, CE, RCM, IC |
