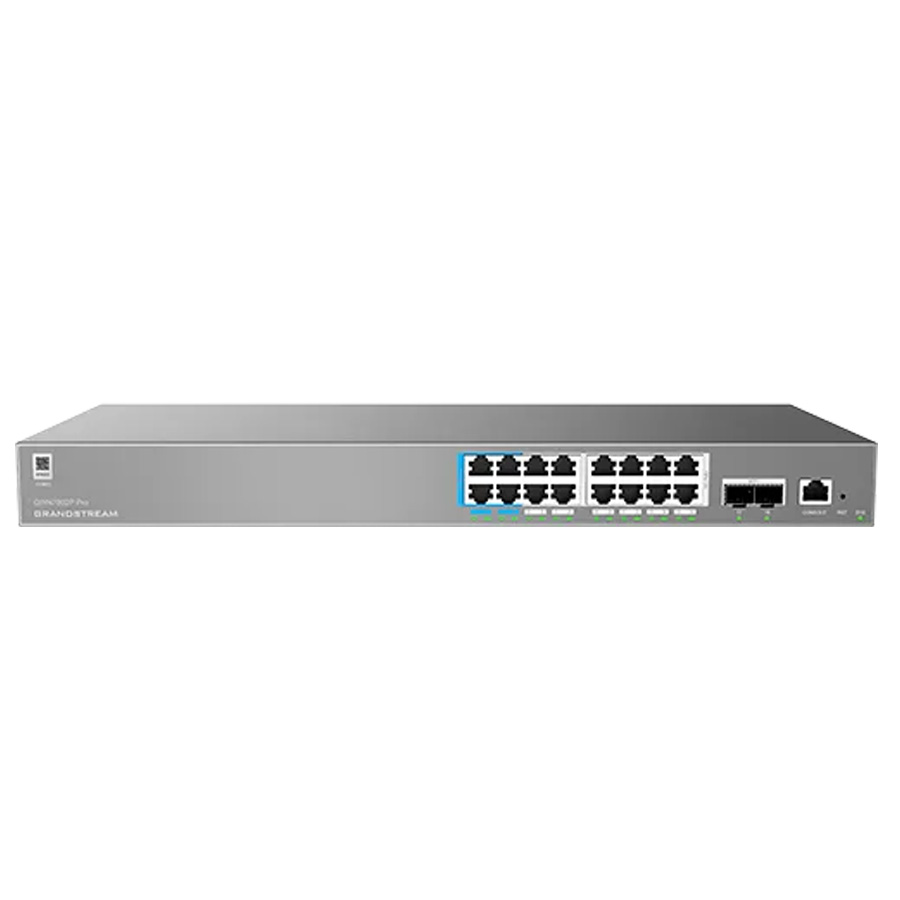

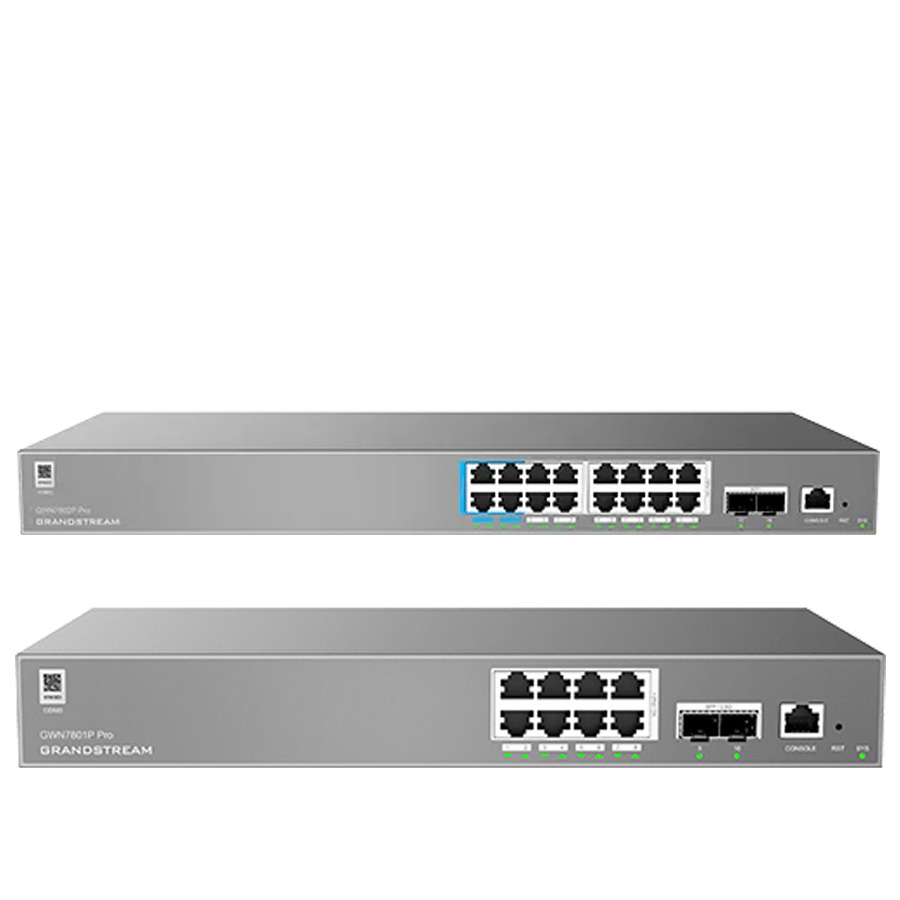

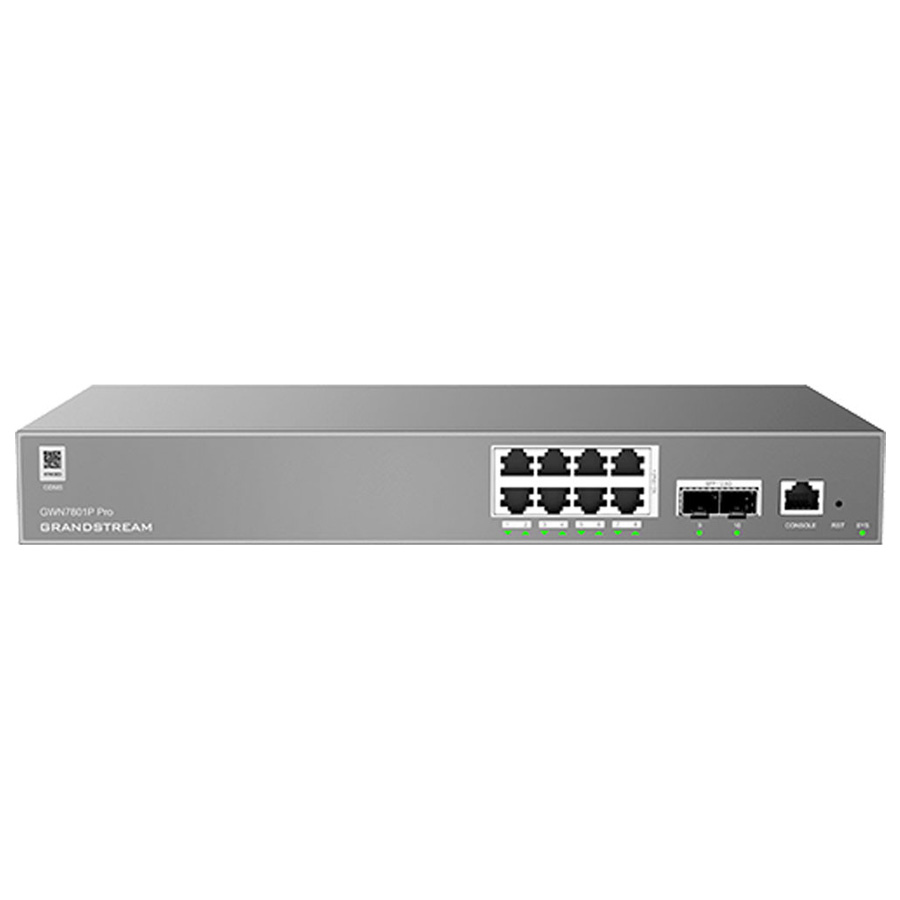

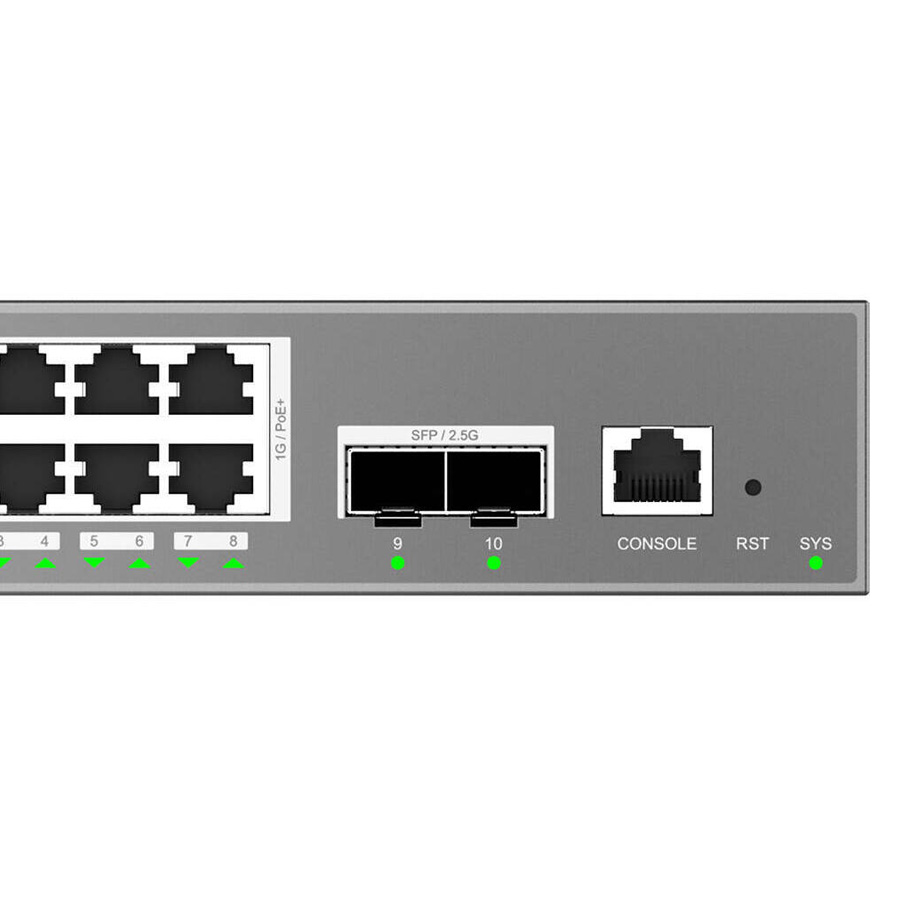

Grandstream Managed PoE Pro Network Switches
Price range: $237.00 through $397.00
The Grandstream GWN7800P Pro Series (8 or 16 port) are high-performance managed PoE switches built for both advanced home networks and commercial deployments. Designed to power and connect devices like Wi-Fi access points, IP cameras, IP phones, intercoms and smart building gear, they deliver data and power over a single Ethernet cable for clean, flexible installs. With business-grade Layer 2+ management, including VLANs, QoS, link aggregation and security controls, the GWN7800P range is ideal for smart homes, home offices, retail and growing business networks that need reliable PoE and stronger network visibility and management.
FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream
Managed PoEÂ 1 GigE Pro Network Switches
- 8 (GWN7801PPro) or 16 (GWN7802PPro) 1 Gigabit Ethernet ports
- Both models include high-speed SFP or SFP+ ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ and power allocation per port
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
1 Gigabit
8 or 16, 1 Gigabit Ethernet ports with 2 SFP or 2 SFP+ ports.
PoE
Smart power control to support dynamic PoE/PoE+/PoE++ power allocation per port.
IPv4 & IPv6
Supports deployment in IPv6 and IPv4 networks.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
Advanced security
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping.
Easy management
Web management; GWN App management; GDMS Networking remote management via SSH tunneling.
The finer details
| Specification | GWN7801P Pro | GWN7802P Pro |
|---|---|---|
| Interfaces | ||
| Gigabit Ethernet Ports | 8 | 16 |
| SFP / SFP+ Ports | 2× 2.5G SFP | 2× SFP+ |
| MGMT Ports | 1× Console port | |
| Auxiliary Ports | 1× Reset pinhole | |
| System | ||
| Flash | 32MB Nor Flash | 32MB Nor Flash |
| RAM | 128MB | 256MB |
| CPU | Single-core, MIPS interAptive™ 1GHz | Single-core, MIPS interAptive™ 1GHz |
| Forwarding Mode | Store-and-forward | |
| Total non-blocking throughput | 13Gbps | 36Gbps |
| Switching Capability | 26Gbps | 72Gbps |
| Forwarding Rate | 19.344Mpps | 53.568Mpps |
| Power over Ethernet | ||
| PoE Standards | IEEE 802.3af/at | |
| PoE Out Ports | 8 | 16 |
| Max Total PoE Output Power | 120W | 250W |
| Max Output Power per PoE Port | 30W | 60W |
| Physical | ||
| Mounting | Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included) | Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included) |
| Environmental & Reliability | ||
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | -10°C to 60°C | |
| Operating Humidity | 10% to 90% RH (Non-condensing) | |
| Storage Humidity | 5% to 95% RH (Non-condensing) | |
| MTBF | 70,000H | |
| Fan | / | 2 |
| Key L2 / L3 (Software Specs) | ||
| Stacking | Yes, up to 8 devices | |
| Jumbo Frame | Max 12288 | |
| VLANs | 4K VLANs; port-based VLAN; IEEE 802.1Q VLAN tagging; QinQ; Voice VLAN (auto voice VLAN, tagged/untagged OUI) | |
| Spanning Tree | STP/RSTP/MSTP/PVST(+)/RPVST(+); 16 instances (MSTP/PVST(+)/RPVST(+)) | STP/RSTP/MSTP/PVST(+)/RPVST(+); 64 instances (MSTP/PVST(+)/RPVST(+)) |
| MAC Address Table | 16K | 32K |
| Link Aggregation (LAG) | Up to 8 LAG groups; up to 8 members per LAG | Up to 32 LAG groups; up to 8 members per LAG |
| Static Routes | 32 (IPv4) / 32 (IPv6) | 1K (IPv4) / 1K (IPv6) |
