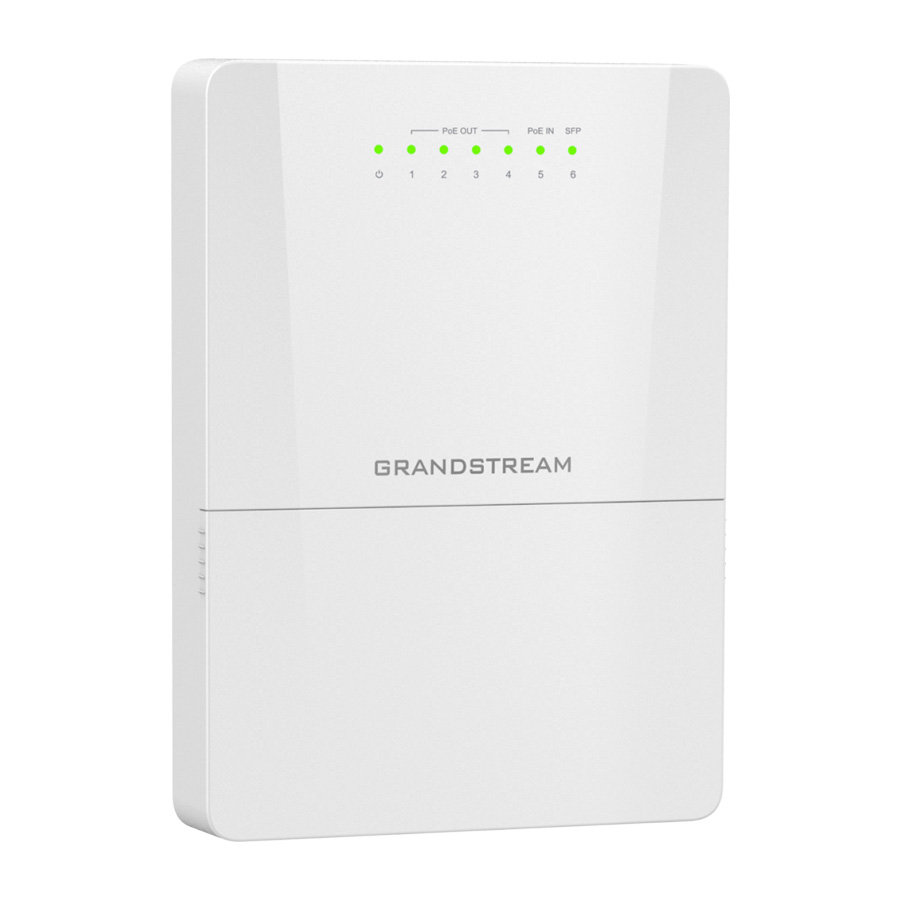

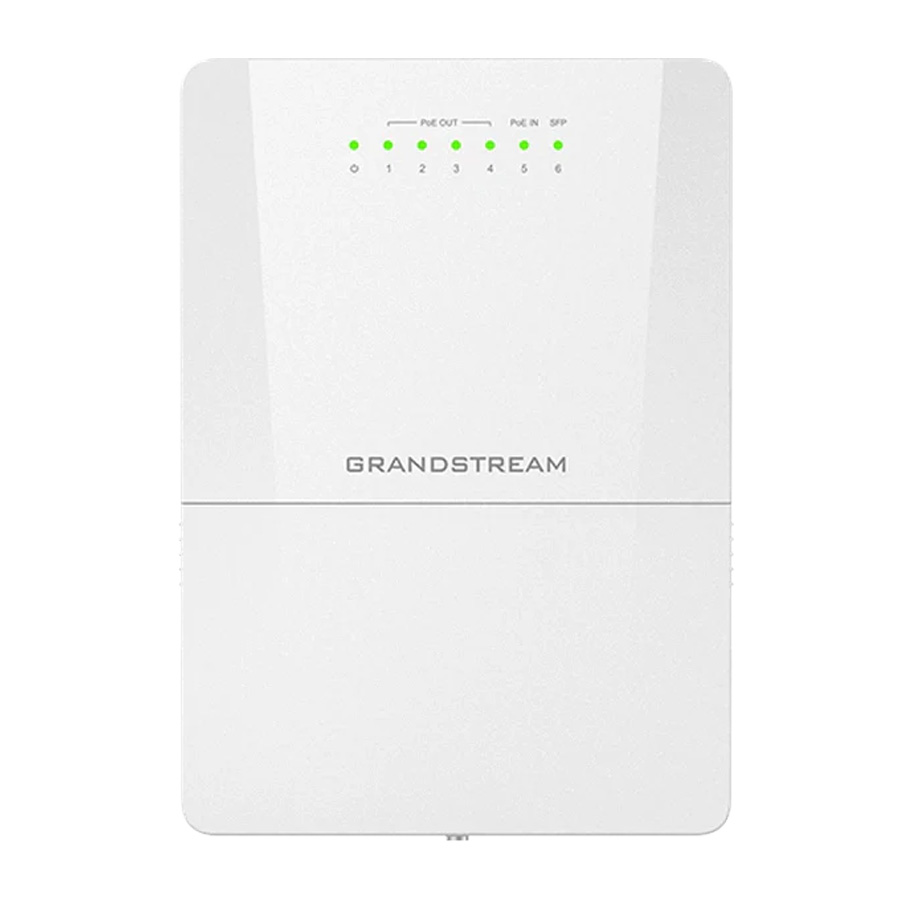

Grandstream Outdoor Managed 6 Port Switch
$173.00
The Grandstream GWN7710R is a rugged outdoor managed 6-port (5GE+1SFP) network switch built for reliable connectivity in homes, rural properties and commercial sites. Suitable for harsh environments, it’s ideal for powering and connecting outdoor network devices like Wi-Fi access points, IP cameras, intercoms and gate systems across sheds, workshops, barns, warehouses, yards and outdoor areas. With managed switch features for traffic control and network stability, the GWN7710R is a smart choice for extending secure, dependable Ethernet to places where indoor switches can’t be installed.
Only 2 left in stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream
Outdoor Managed 6 Port Switch

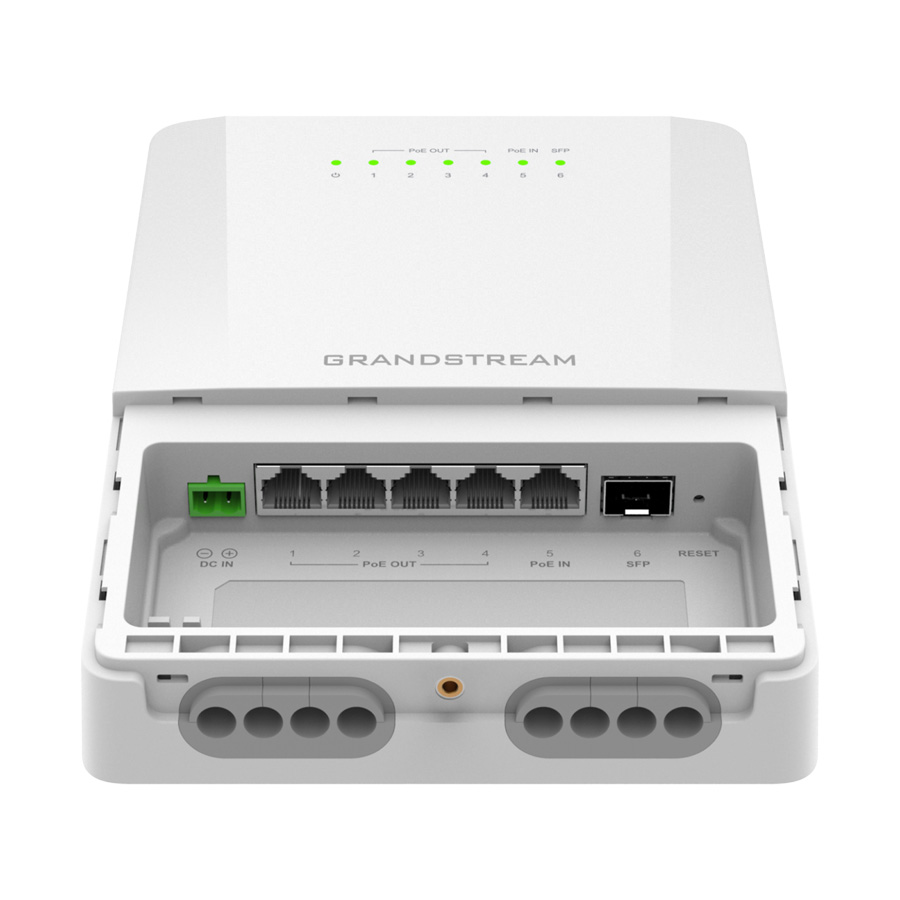

- 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
- IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
- SFP Fiber Port for long-distance transmission
- DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
- IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
- Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
- STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
- Built-in QoS allows for prioritization of network traffic
PoE
IEEE 802.3 at/af or 24V/48V DC passive PoE out, Up to 60W on Port 1 and up to 30W on Port 2-4.
Gigabit
5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port).
SFP Port
SFP Fiber Port for long distance transmission.
DHCP Snooping
Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe.
Outdoor rated
IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
STP/RSTP
Fast convergence, ensuring network stability and provides link load balance and redundancy.
Easy management
Supports intelligent local Web configuration, GWN
Manager, and GDMS Network Management.
The finer details
| Specification | GWN7710R |
|---|---|
| Product Type | 6-Port (5GE + 1 SFP) Outdoor L2 Lite Managed PoE Switch |
| Network Protocols / Standards | IPv4, IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3at |
| Communication Ports |
5× Gigabit Ethernet Ports 1× 1G/2.5G SFP Port |
| Power Supply |
12V–57V DC input Standard PoE / PoE+ / PoE++ |
| PoE In / PoE Out Ports |
PoE In: Port 5 PoE Out: Port 1 – Port 4 |
| PoE Output Modes |
Standard PoE output mode (default) Passive 24VDC or 48VDC output mode (configured via UI) |
| PoE Output Power Budget |
Powered by Standard PoE In (802.3af/at/bt): 802.3af input: 3W output budget 802.3at input: 15W output budget 802.3bt input: 60W output budget Powered by DC In (12V–57V): DC In > 12V: 60W output budget DC In > 24V: 72W output budget DC In > 36V: 100W output budget |
| Max Output Power Per PoE Port |
Standard PoE output mode: Port 1–4 up to 30W each Passive PoE output mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W Port 2–4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W *4-pair powered pins: 1,2,4,5(+), 3,6,7,8(-) *2-pair powered pins: 4,5(+), 7,8(-) |
| Auxiliary Ports | 1× Reset pinhole |
| Forwarding Mode | Store-and-forward |
| Total Non-Blocking Throughput | 6Gbps |
| Switching Capability | 15Gbps |
| Forwarding Rate | 11.16Mpps |
| Packet Buffer | 4Mb |
| MAC Address Table | 8K MAC address capacity |
| Jumbo Frame | 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 12K / 15K |
| VLAN |
Supports up to 32 VLANs (out of 4K VLAN IDs) Port-based VLAN, 802.1Q VLAN Voice VLAN |
| LAG | 3 |
| Multicast | IGMP snooping, Report Message Suppression |
| QoS |
Auto prioritization of the incoming port of the packet Supports port priority, 802.1P priority, and DSCP priority Bandwidth control Rate limit |
| DHCP | DHCP client |
| Maintenance & Monitoring |
Backup and restore, System reboot, Factory reset, Firmware upgrade, MAC address search, SNMP, LLDP Port statistics, Port mirroring, Cable test, Ping |
| Security Features | Storm control, DHCP Snooping, Spanning Tree, Loop prevention, PoE Watchdog |

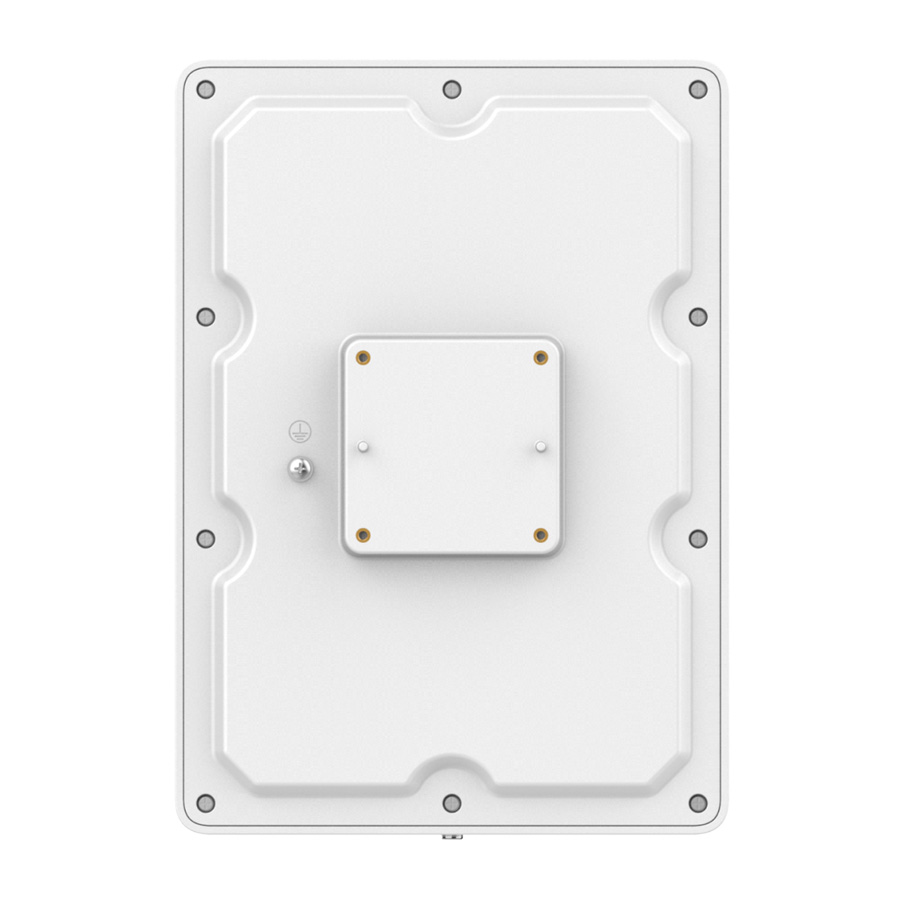

| Mounting | Pole / Wall-Mount / DIN-Rail |
| LED Indicators |
System on: Green Per Ethernet port Link/Activity: Green Per Passive PoE out port 48VDC: Orange Per Passive PoE out port 24VDC: Blue Support LED indicator switch |
| ESD Protection | ±16kV Air, ±16kV Contact |
| Environmental |
Operating Temperature: -40 to 60°C (-40 to 140°F) Storage Temperature: -40 to 70°C (-40 to 158°F) Operating Humidity: IP66 waterproof support Storage Humidity: 10% to 95% (Non-condensing) |
| Dimensions (L × W × H) | Unit: 210 × 150 × 52mm; Package: 466 × 286 × 258mm |
| Weight | Unit: 0.75kg; Entire Package: 1.35kg |
| Package Content |
1× Switch Rack-mounting Standard Brackets 1× Quick Installation Guide (QIG) 4× assembled screw, 4× expansion screw 2× Metal straps 1× Phoenix connector |
| Compliance | FCC, CE, RCM, IC |
