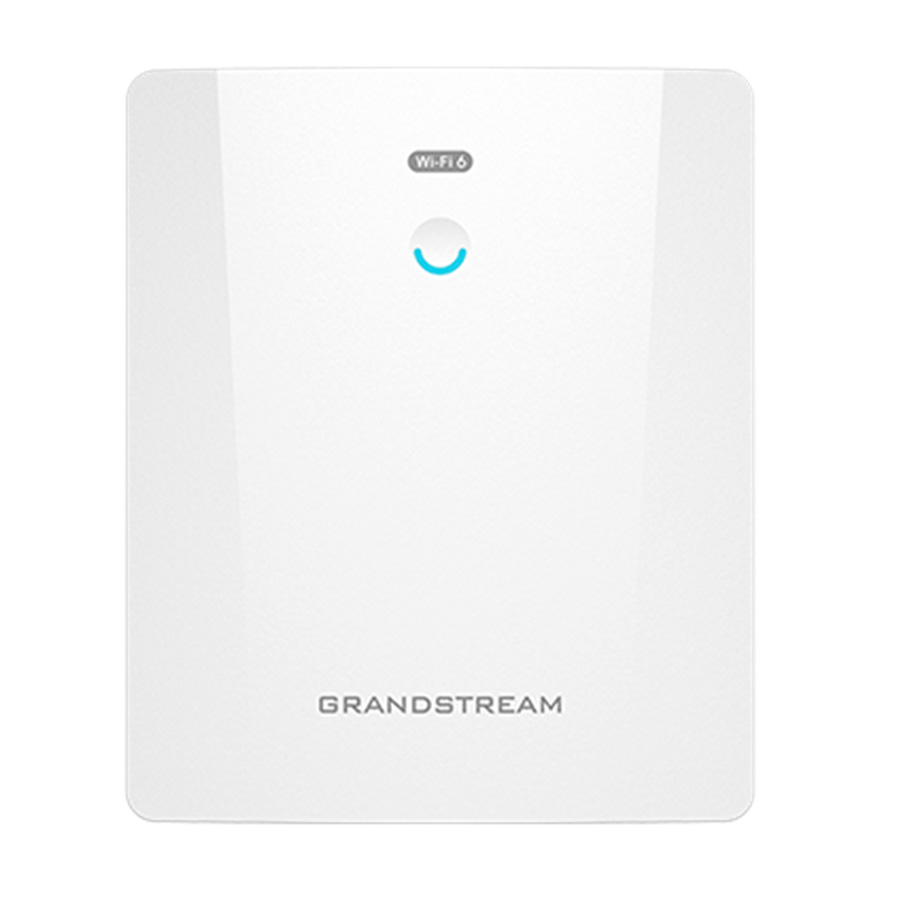

The Grandstream GWN7660ELR is a rugged Wi-Fi 6 (802.11ax) outdoor (IP68) long-range access point built for homes, rural properties and commercial sites that need reliable coverage beyond the walls. It’s ideal for extending Wi-Fi (up to 300m) to sheds, workshops, driveways, barns, paddocks, outdoor areas, warehouses and large yards – with faster speeds and better efficiency for many connected devices. With business-grade security and flexible management options, the GWN7660ELR is a strong choice for stable, high-capacity outdoor Wi-Fi in tough environments.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Self-power adaptation upon auto-detection of PoE or PoE+
Support 256 concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Flexibility of 5 internal antennas
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Supports up to 256 concurrently connected Wi-Fi wireless client devices.
PoE
Self power adaptation upon auto detection of PoE or PoE+.
Advanced security
Anti-hacking secure boot and critical data/control lockdown via unique digital device signatures.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
Easy management
Embedded controller and free cloud can manage itself and up to 50 GWN APs.
Full network control.
Intelligent QoS allows you to prioritise critical data streams to guarantee a smooth experience for high-bandwidth services and applications for everyone on your network.
Content and URL filtering.
Admins can easily monitor and manage network traffic thanks to URL filtering and content blocking while accessing detailed network and traffic statistics, reports and alerts.
Parental control keeps families safe.
Built-in parental controls can manage and control online time, block inappropriate content and offer network usage statistics to keep families or employees safe while online.
The finer details
Specification
GWN7660ELR
Wi-Fi Standards
IEEE 802.11 b/g/n/ac/ax
Antennas
5 individual internal antennas
2.4GHz x 2, gain 5.5 dBi
5GHz x 2, gain 6.0 dBi
BT gain 4.5 dBi
Wi-Fi Data Rates (5GHz)
802.11ax: 7.3 Mbps to 2403 Mbps
802.11ac: 6.5 Mbps to 1734 Mbps
802.11n: 6.5 Mbps to 300 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4GHz: 20 and 40 MHz
5GHz: 20, 40, 80 and 160 MHz
System Security
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3
Anti-hacking secure boot and critical data/control lockdown via digital signatures
Unique security certificate and random default password per device
Wall mount or pole mount; kits included (mounting kits adjustable/rotatable by 60°)
LEDs
1 tri-color LED for device tracking/status; 1 single-color LED for SFP
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller manages up to 50 local GWN APs
GWN.Cloud: free cloud platform for unlimited GWN APs
GWN Manager: on-premise software controller for up to 3,000 GWN APs
Power & Green Energy Efficiency
PoE 802.3af / 802.3at
Maximum power consumption: 13W
Environmental
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% (Non-condensing)
Physical
Unit dimension: 270mm x 230mm x 57mm
Unit (including brackets): 1kg
Entire package dimension: 439mm x 329mm x 137mm
Entire package weight: 2.4kg
