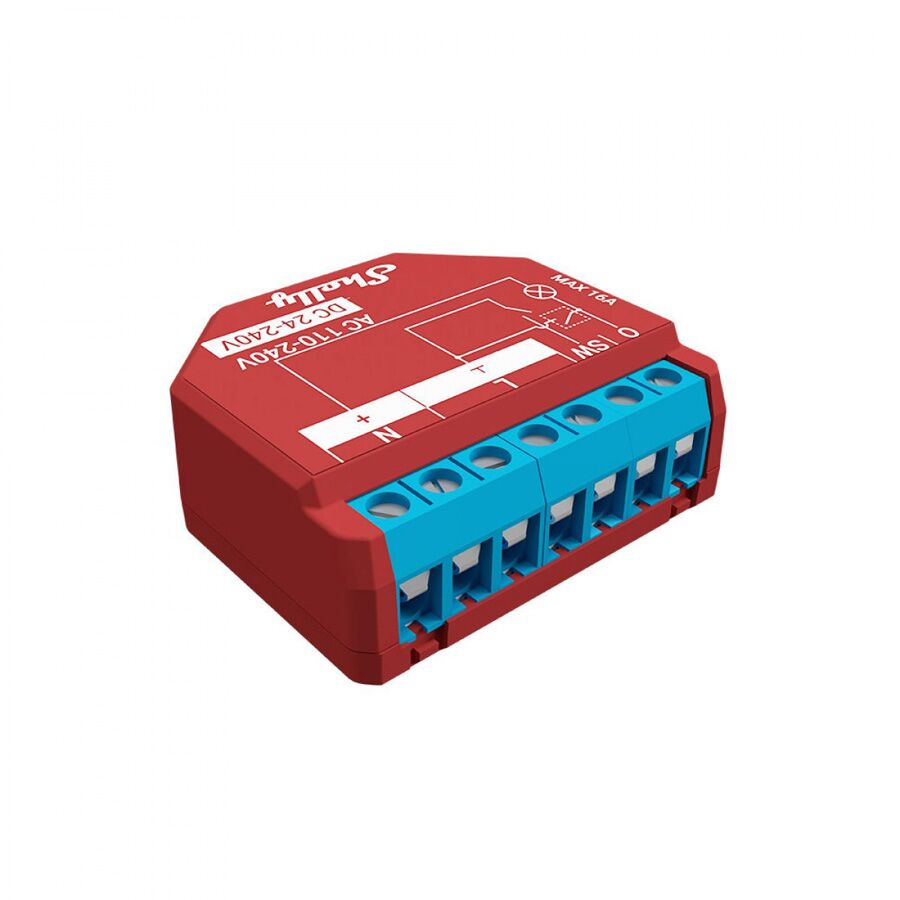

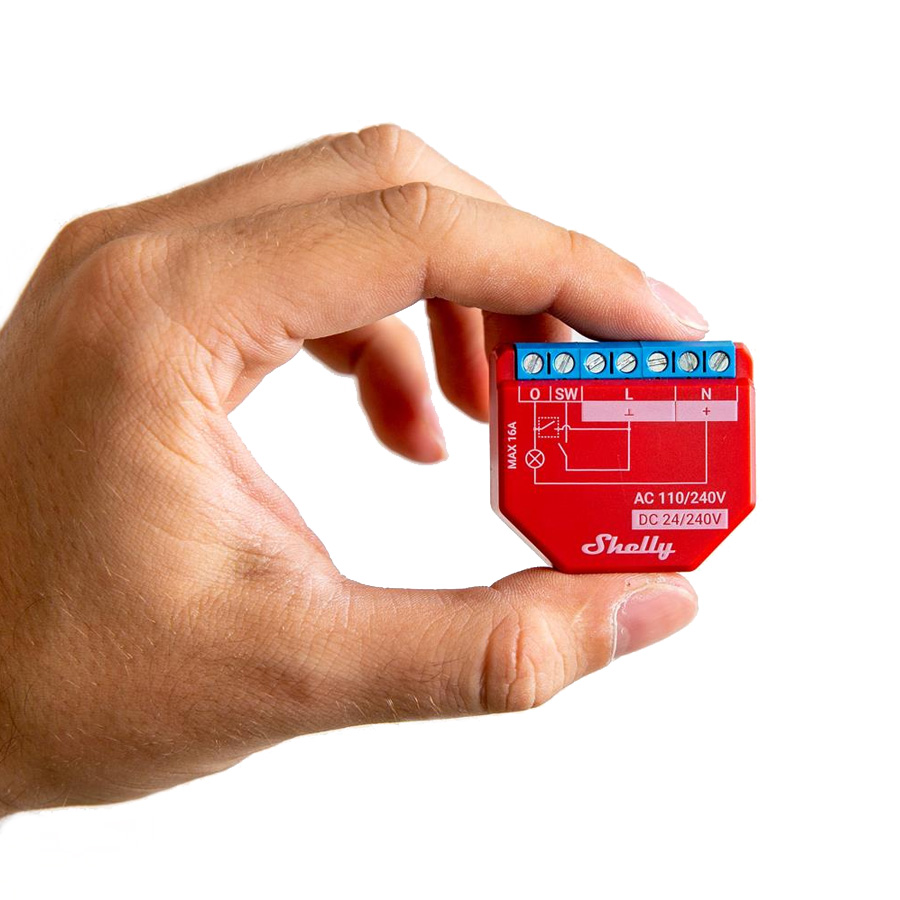

The Shelly Plus 1PM (with power monitoring) is the upgraded version of the popular Shelly 1PM.
Wi-Fi operated
Connect Shelly Plus 1PM directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Low voltage support
Shelly Plus 1PM can control and be be powered by 110-240 VAC or 24-30 VDC.
Power metering
Shelly Plus 1PM provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
PLAY THE VIDEO
Next generation.
The Shelly Plus 1PM is the next generation of the popular Shelly 1PM. It has been upgraded in every way possible.
Monitor.
Control.
From anywhere in the World.
With Shelly Plus 1PM you can automate lighting and almost any electrical appliance in your home and control it remotely. Shelly Plus 1PM can even control appliances with large loads (up to 16A) which makes it perfect for kitchen appliances and domestic systems monitoring and control.
Comfort.
Automate.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly Plus 1PM will allow you to automate your lights and appliances on a schedule or when certain conditions around your home are met (e.g. when your Shelly Door / Window Sensor is triggered).
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | 24 – 30V |
| Maximum load: | 16A |
| Device power consumption: | < 1 W |
Special functions | |
| Dry contacts: | No |
| Roller shutter mode: | No |
| Device temperature protection: | Yes |
| Overload protection: | Yes |
| Power measurement: | Yes |
| Working without a neutral wire: | No |
Features | |
| Control channels: | 1 On/Off Relay Channel |
| Operational temperature: | 0°C to + 40°C |
| Intelligent On/Off: | Yes |
| Local and smart control: | Yes |
| Sunrise/Sunset timer: | Yes |
| Built-in weekly scheduler: | Yes |
Connectivity | |
| Wi-Fi protocol: | 802.11 b/g/n |
| Radio frequency: | 2400 – 2500 MHz |
| Radio signal power: | 1mW |
| Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth: | Yes |
Dimensions | |
| Size: | 41mm x 36mm x 16mm |
