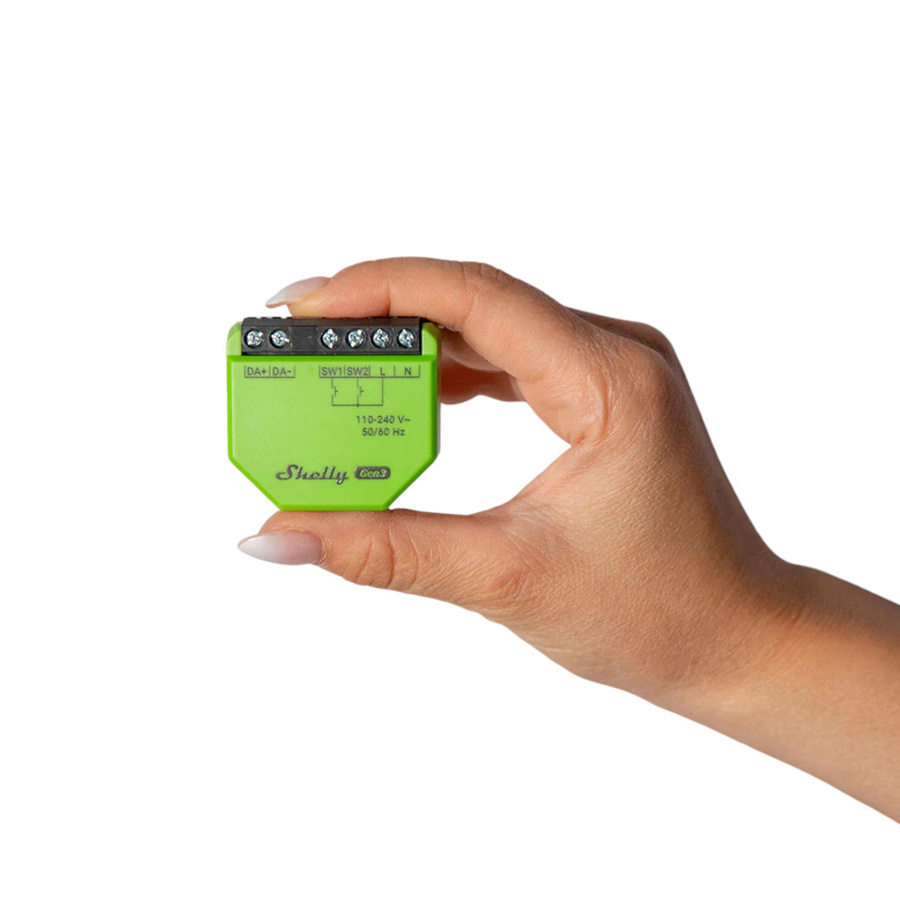

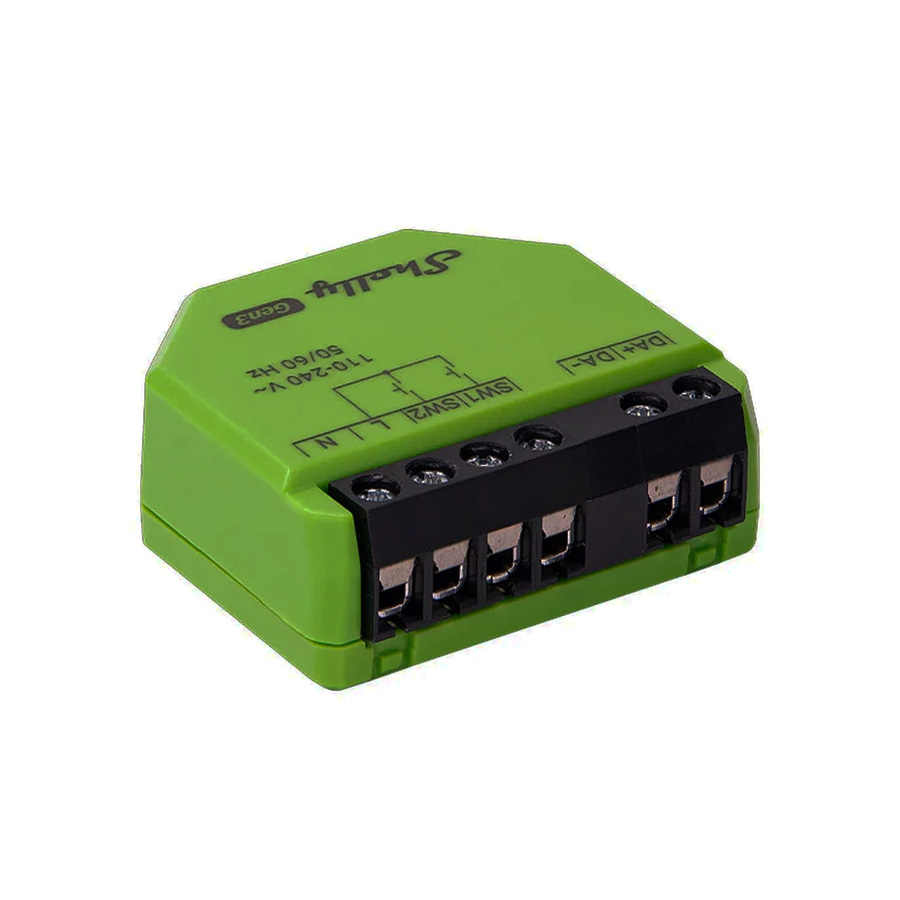

Shelly Gen3 WiFi DALI Dimmer
$64.99
Control high-end DALI luminaires with Shelly DALI Dimmer Gen3 and integrate them into your Shelly smart ecosystem. Experience a predictable and repeatable brightness control of DALI lights with additional functions for easy maintenance. Excellent integration with external Shelly sensors or input controls enhance and automate the usability of your home or office space.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
DALI.
Wi-Fi Dimmer.
Elevate your lighting control with the Shelly DALI Dimmer Gen3 – your ultimate device for dimmable control of DALI network of lights.
Please note this is not a standard dimmer module – it only works with DALI lighting systems.
Wi-Fi operated
Connect Shelly DALI Dimmer Gen3 directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App.
DALI Type 6
DALI single master application controller.
Supports LED control gear (DALI Part 207 gear).
Bus power supply
Bus power supply guaranteed 10mA (up to 5 DALI control gear units).
Extremely fast processor
Gen3 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Built-in over-heating sensor.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
Broad range of cloud connections and local integrations with much lower integration cost.
Shelly Gen3.
More memory. More power.
The Gen3 series ensures the quality and reliability of Shelly devices by using their own proprietary, powerful Shelly chipset. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Virtual components.
The Shelly Gen3 Series introduces “virtual components”. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the road to Matter.
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
Like magic.
With Shelly Dimmer Gen3 as part of your automation system, your lights can turn on when motion is detected, by voice, app control, remote control, schedule or the wall switch.
You are in full control.
App Control.
With the best cloud service in the World, user-friendly interface, scenes, bulk control and much more… the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.
Voice control.
Shelly devices are fully compatible with Amazon Alexa and Google Home.
“Hey Google, turn off the bedroom light.”
“Alexa, dim lights to 50%.”
Flexible control.
Shelly Wi-Fi devices can work without a hub… but they are also compatible with…
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Physical |
|
| Dimensions: | 42x37x17 mm |
| Weight: | 18 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
Environmental |
|
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical |
|
| Power supply AC: | 110 - 240 VAC ±10% 50/60Hz |
| Power consumption: | < 2 W |
| Power supply DC: | None |
| Bus power supply: | Guaranteed 10mA (up to 5 DALI control gear units), Short circuit current < 35 mA |
| Bus voltage: | 16V nominal |
| Neutral wire: | Required |
Sensors, meters |
|
| Internal-temperature sensor: | Yes |
Connectivity |
|
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2401 - 2495 МHz |
| Wi-Fi Max. RF power: | < 20 dBm |
| Wi-Fi range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes (4.2 with BLE) |
| Bluetooth radio frequency: | 2400 - 2483.5 MHz |
| Bluetooth Max. RF power: | < 4 dBm |
| Bluetooth range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit |
|
| CPU: | ESP32-C3 Shelly |
| Flash memory: | 8MB |
Features |
|
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
