Professional.

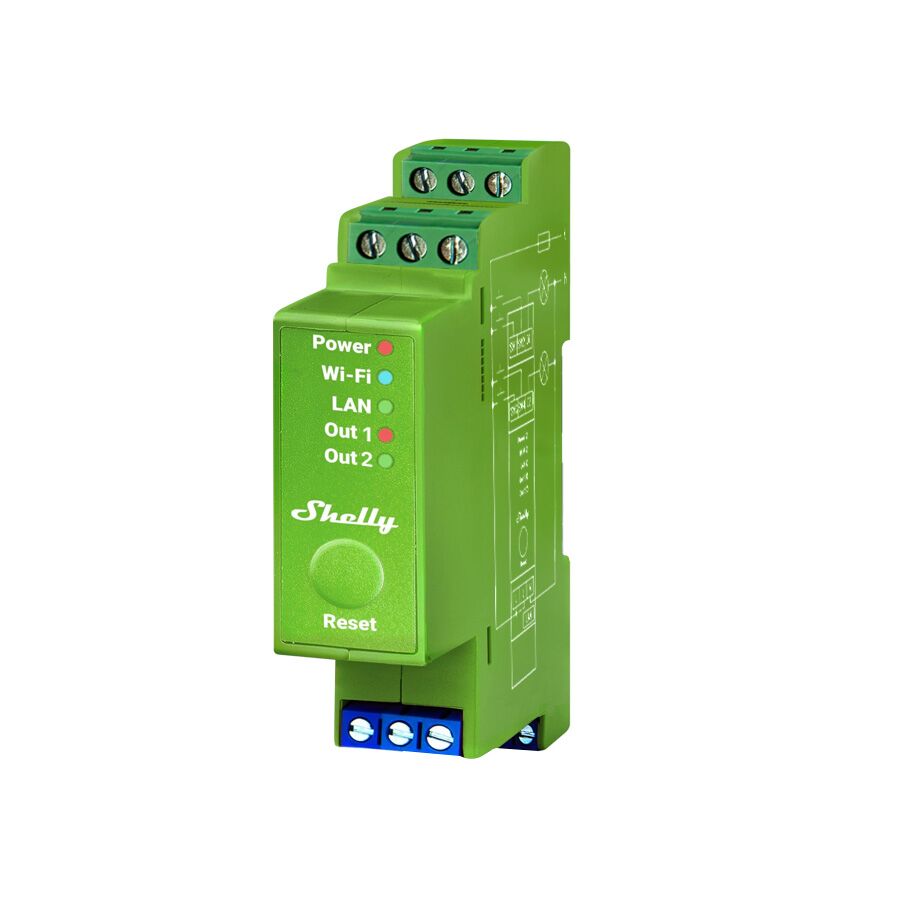

DIN-Rail 2 Output Dimmer.
Wi-Fi or Ethernet
Connect Shelly Pro Dimmer 2PM directly to your network. No Smart Hub required.
Bluetooth
DIN Rail mountable
Power monitoring
Shelly Pro Dimmer 2PM provides precise power monitoring of the connected loads.
Extremely fast processor
Flexible switch control
Use it with your existing light switches, no matter if they’re single or dual button / switch.
Enhanced security
Improved API interface
Monitor.
Shelly Pro Dimmer 2PM stands as an ideal solution for various dimming and power-metering needs – from expansive multi-room residences to the sophisticated demands of hotels or office spaces. As part of the professional line series, the device is engineered for seamless integration into a DIN Rail enclosure, which allows you to precisely control and monitor the lights in different rooms. Thus, you can plan your business expenses better, and strategically optimise the energy consumption for enhancing efficiency and cost-effectiveness.
2x Control.
Smart and manual control.
Shelly Pro Dimmer 2PM gives your fine-tuned control to tailor your lighting to perfection. Set the minimum and maximum brightness levels to match both your personal preferences and the capabilities of your bulbs, ensuring that the lighting in your home is always just right. You can control and dim two independent sets of lights manually from connected wall switches – or via your smartphone from anywhere in the World.
Automate.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly Pro Dimmer 2PM will allow you to automate your lights on a schedule or when certain pre-defined conditions around your home are met.
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
Power supply AC: | 110 - 240 V~ 50/60 Hz |
Power supply DC: | No |
Maximum load: | 200 W per Channel |
Dimming type: | Trailing edge |
Device power consumption: | < 2 W |
Special functions | |
DIN Rail mountable: | Yes |
Dry contacts: | No |
Roller shutter mode: | No |
Device temperature protection: | Yes |
Overload protection: | Yes |
Power measurement: | Yes |
Working without a neutral wire: | No |
Features | |
Control channels: | 2 Independent On/Off / Dimming Channels |
Operational temperature: | -20°C to + 40°C |
Intelligent On/Off: | Yes |
Local and smart control: | Yes |
Sunrise/Sunset timer: | Yes |
Built-in weekly scheduler: | Yes |
Connectivity | |
Wi-Fi protocol: | 802.11 b/g/n |
Radio frequency: | 2400 – 2500 MHz |
Radio signal power: | 1mW |
Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth: | Yes |
Ethernet: | Yes |
Dimensions | |
Size: | 69mm x 19mm x 94mm |
