Shelly Z-Wave PRO 2PM Dimmer
$149.00
Professional 2-channel DIN rail smart Z-Wave dimmer with power monitoring (for control of two independent dimmable loads). Suitable for home and commercial automation setups. DIN-rail mountable inside a breaker box. Includes enhanced safety features.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Professional.
Z-Wave 800 Series.

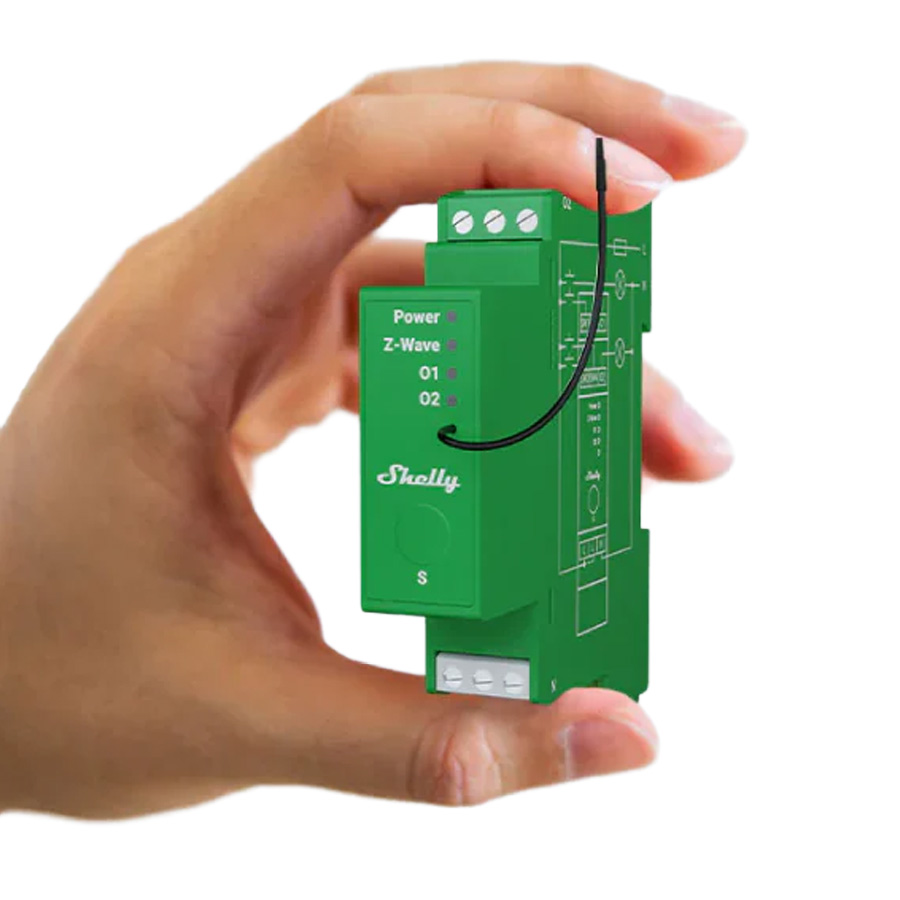

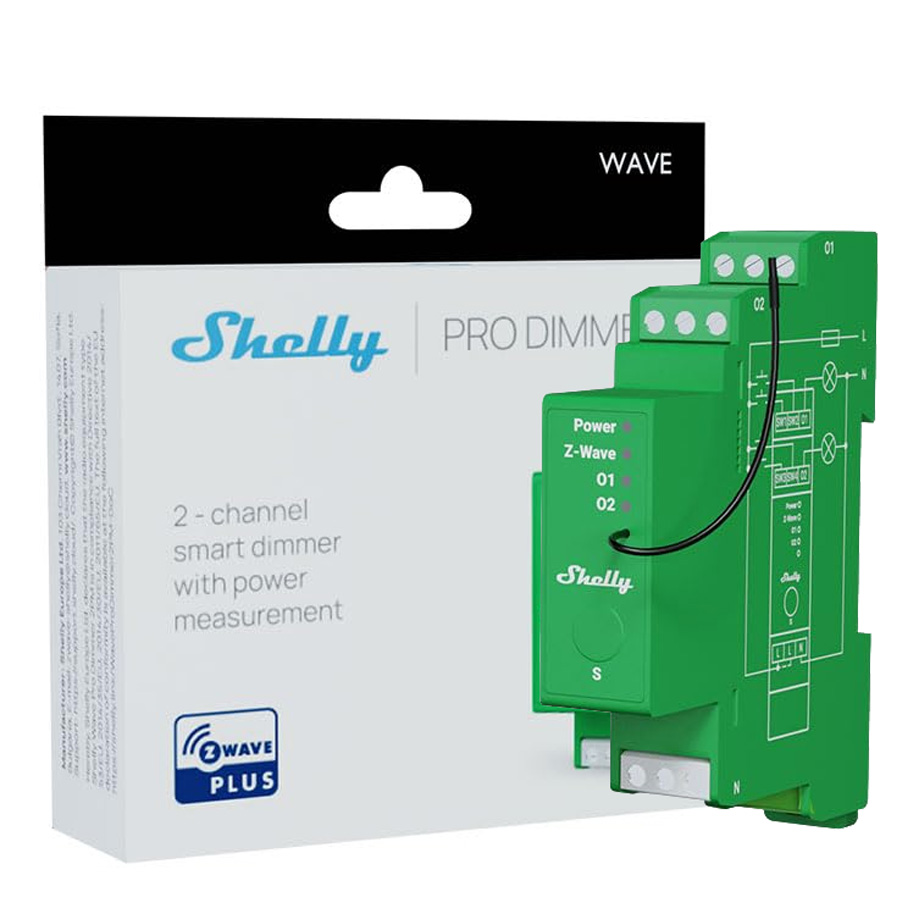

Wave Pro 2PM Dimmer (with power monitoring) is a two-channel DIN rail mountable dimmer for professional lighting automation* in residential or commercial applications.
*Requires a Z-Wave compatible hub or software.
Z-Wave operated
Compatible with all certified Z-Wave gateways and features the latest 800 series chipset.
Extended wireless range
Up to 40m indoors and acts as a Z-Wave signal repeater for other Z-Wave devices.
Bulletproof security
S2 (Security 2) AES 128 encryption for the ultimate in security of your Z-Wave network.
Easy setup
SmartStart for easy inclusion into your Z-Wave system – scan the QR code and you are done.
High reliability
Communicates wirelessly on your dedicated Z-Wave mesh network – far removed from Wi-Fi.
Associations
Establish direct communication between Z-Wave devices which work even if your hub fails!
Dimmable
Control of 2 independent loads up to 200W each – supports manual wall switch control.
Z-Wave.
Works with any Z-Wave gateway or software.
Shelly Wave devices work with over 4000 Z-Wave certified devices and gateways, using the latest Z-Wave 800 Series chipset.
Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected lighting from anywhere using your smartphone or tablet.
Aeotec Dual Z-Wave & Zigbee Z-Stick 10 Pro
The Z-Stick 10 Pro lets you create a custom smart home hub with full control and flexibility. Supporting both Z-Wave (800 Series) and Zigbee (3.0), it seamlessly connects devices and works with platforms like Home Assistant for a secure, cloud-free experience. With a compact design and cross-platform compatibility, it ensures reliable local control of your Z-Wave and Zigbee smart devices.
Aeotec Smart Home Hub
The Aeotec Smart Home Hub (works as a SmartThings hub) enables you to automate and control a huge range of smart devices and make them work in unison to create a seamless smart home. The hub utilises Matter, Zigbee, Z-Wave and Wi-Fi protocols. The SmartThings app for iOS and Android enables monitoring and control of your connected devices from anywhere. You'll also receive alerts from connected devices when there is unexpected activity. Voice control is available via Alexa and Google Assistant.
Home Assistant Green
The affordable Home Assistant Green is the easiest way you can start using Home Assistant - The World's most popular open-source smart home software. It's plug-and-play hardware is perfectly tuned to make sure you get the most out of the pre-installed Home Assistant software. More than 1,000 built-in integrations support hundreds of thousands of smart devices and online services, with more regularly added by the HA community.
Homey Bridge
Homey Bridge combines all your wireless and smart home devices into a single, easy-to-use smart home system. With over 50,000 smart devices supported, your home will not only be smarter... it will also be unified into one clever, more secure and comfortable home. Homey Bridge includes chipsets to support Z-Wave, Zigbee, Wi-Fi, 433 MHz and Infra-red - making it the most complete and compatible smart home hub in the World. Add up to 5 devices free... or go Premium for $4.49 per month for unlimited devices and access to Homey Insights, Logic & Variables.
Homey Pro Smart Hub (2026)
The Homey Pro (new 2026 version) is the world's most advanced smart home hub. Supporting all smart wireless technologies including Wi-Fi, Z-Wave Plus, Bluetooth, Zigbee, 433 MHz, Infrared, Thread & Matter allowing for support of over 50,000 popular smart devices and services. Private, local, secure and powerful - Control, automate and monitor your entire smart home with Homey Pro.
Aeotec Z-Wave USB Z-Stick 7
The new Aeotec Z-Stick 7 (700 series) is a Z-Wave USB dongle designed to work with the all of the most popular automation software solutions, including openHab and Home Assistant. When attached to a host processor (PC, Raspberry Pi, etc), it becomes a Z-Wave communication device, which allows Z-Wave software to communicate with your Z-Wave devices.
Home Assistant ZWA-2 Connect Z-Wave Adapter
The ultimate way to connect Z-Wave devices to Home Assistant. Fully certified and includes the latest 800-series Z-Wave chipset. The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to improve reliability and maximise range. Easy plug-and-play setup with Home Assistant via its USB adapter.
Fibaro Z-Wave Home Center 3 Lite
The new Home Center 3 Lite is a smaller version of the most advanced smart home hub in the world. This clever smart home controller has been modelled on the solutions used in the popular Home Center 3 platform. This central unit can be connected with other Z-Wave devices which you can use while controlling electronics and household appliances, lighting, blinds, HVAC, alarm or watering system - with just a single button, app, gesture or word. Home Center 3 Lite is recommended for smaller smart home installations.
Overheating protection
If the device detects unsafe temperatures or a rapid rise, it will turn off and notify you. An internal sensor checks the temp every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
The finer details
| Power supply: | 110 - 240 V AC, 50/60 Hz |
| Power consumption: | < 0.3 W |
| Power measuring: | Yes |
| External protection: | 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Dimming type: | Trailing edge |
| Dimming channels: | 2 |
| Max. output power: | 200 W (per channel) |
| Overheating protection: | Yes |
| Overcurrent protection: | Yes |
| Overvoltage protection: | Yes |
| Dry contact: | No |
| Distance: | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ frequency bands: | 919.8 MHz (Australia & New Zealand) |
| Max. radio frequency power: | < 25 mW |
| Size (H x W x D): | 94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 in |
| Weight: | 75 g / 0.92 oz. |
| Mounting: | DIN rail |
| Screw terminals max. torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft. |
