Do it once.
Do it right.
Professional-grade features at an affordable price.
Built-in sensors provide alarm triggers, including line crossing, intrusion detection, motion detection, dynamic analysis, tampering alarm, network disconnect and IP address filtering.
HikVision is the professional’s choice – for good reason…
HD Resolution
What good is a security camera if you can’t make out detail in the video it captures? This HikVision camera supports video resolutions up to 3072 x 2048; so every detail is captured in Ultra-HD clarity.
SD Card Support
Conveniently built-in SD Card support allows you to capture HD video internally, ready for playback anytime directly from the camera. Supports SD/SDHC/SDXC cards up to 128GB.
Mobile Viewing
You can easily view your live camera feeds on your mobile device from anywhere in the World using the HikVision iVMS-4500 App – available free from the App Store (Apple) or Google Play (Android).
Easy DIY Installation
HikVision is the #1 choice of security professionals the World over. Although you don’t need to be a professional to install HikVision cameras yourself – if you can use a screwdriver… you’re qualified.
Power: DC12V or PoE
Power your HikVision camera via DC12V or you can take advantage of PoE (Power over Ethernet) – this means you can use the same network cable for both video and powering your camera.
Onvif Compliant
Fully compliant with the Onvif industry standard for IP-based physical security products. Connect HikVision cameras to any system that supports Onvif – regardless of manufacturer.
Dual Stream Video
As well as a full HD video stream, this HikVision camera features a second video sub-stream which you can independently adjust the resolution and data rates to help lessen network congestion.
3D Digital Noise Reduction
Hikvision cameras utilise 3D Digital Noise Reduction to digitally improve video images in low-light conditions. 3D DNR can also be used to enhance overall video quality and save bandwidth.
Wide Dynamic Range
Along with Digital Backlit Compensation, HikVision use proprietary WDR technology to overcome issues that cause some cameras to capture an overexposed foreground or dark background.
Weather Proof
Rated at IP67 for outdoor use… Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects – and neither will the harsh Australian sun.
Vandal Proof
Awarded the highest possible rating (IK10) under IEC 62262 and IEC 60068-2-75. Protects against 20 joules impact (equivalent to a 5 kg mass dropped from 400 mm above impacted surface).
Infra-Red Night Vision.
High intensity infra-red LEDs combined with HikVision’s proprietary Day/Night IR Cut Filter technology ensures you capture every detail…
…even in very dark conditions – up to 30m away.
Day
Night
Monitor, record, playback and control from anywhere with any device.
Free HikVision software and apps for any device… iPhone, iPad, OSX, Android or Windows.
Why does resolution matter?
Simple. The higher the resolution, the more detail captured and the clearer your video will be.
6MP (Ultra HD - 3072 x 2048)
2MP (Full HD - 1920 x 1080)
1MP (HD - 1280 x 720)
480p (SD - 720 x 480)
Which lens size?
Smaller lens type will offer the widest field of view. Higher lens type offers a more focused (zoomed) field of view.

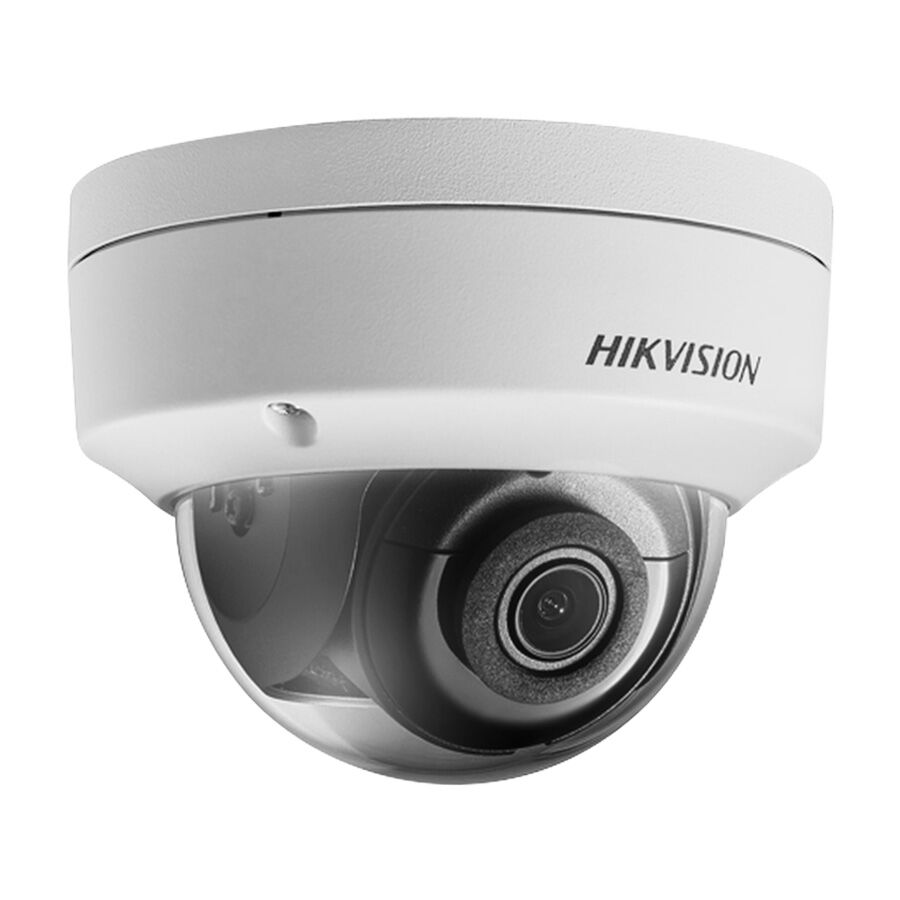

The 6MP HikVision WDR Dome IP Camera is available with four lens types…
2.8mm Lens
4mm Lens
6mm Lens
12mm Lens
The finer details
Camera | |
| Image Sensor: | 1/2.9" Progressive Scan CMOS |
| Min. Illumination: | Colour: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Lens: | 2.8 mm(horizontal field of view: 97°), 4 mm (horizontal field of view: 78°), 6 mm (horizontal field of view: 60°), 12 mm (horizontal field of view: 19°) |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| Day & Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
Compression | |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Tripple Stream: | Yes |
Image | |
| Max. Image Resolution: | 3072 x 2048 |
| Frame Rate: | 50Hz: 20 fps (3072 x 2048, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 x 2048, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI: | Support 1 fixed region for main stream and sub stream separately |
Network | |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Security: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | |
| Audio: | With –S model: 1 input (line in), 1 output |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | with -S model: 1 alarm input, 1 alarm output |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Smart Features | |
| Behaviour Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display |
| Exception Detections: | Scene change detection |
| Recognition: | Face Detection |
General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | 12 VDC ± 25%, 6.2 W ~ PoE(802.3af, class 3), 9 W |
| Impact Protection: | IK10 |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) |
| Weight: | 500g (1.1lbs) |
