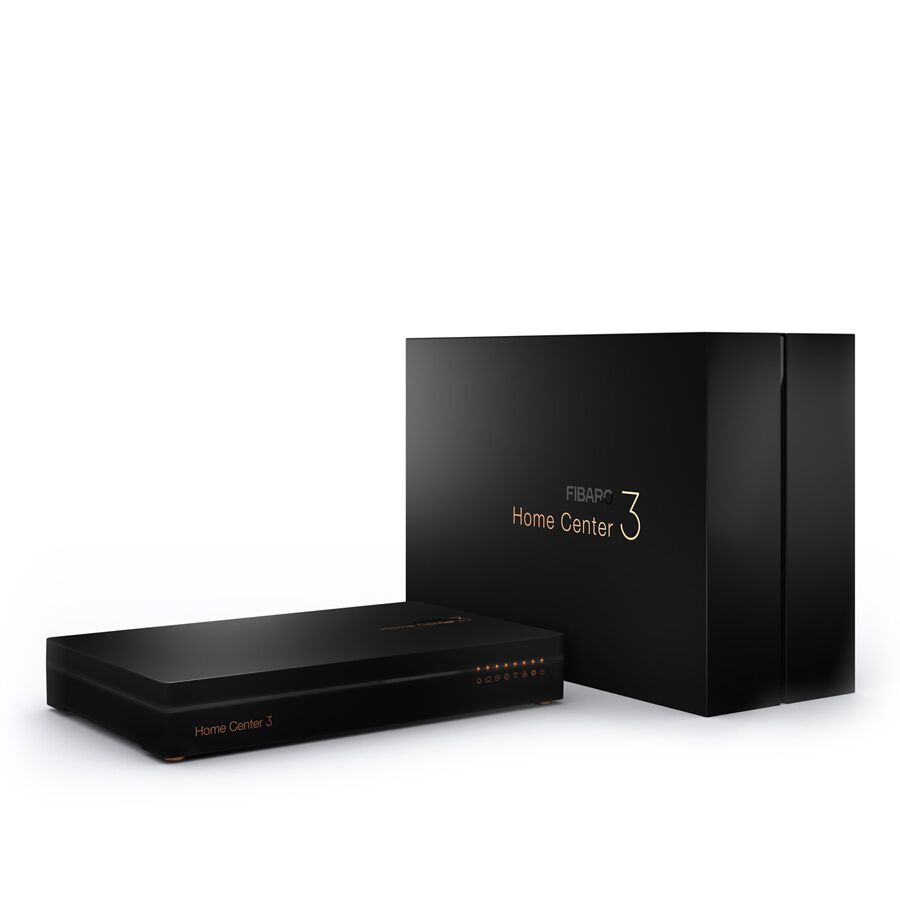

Home Center 3
App control.
Home Center App provides instant connection with your smart home and lets you manage it from anywhere in the World.
The mobile app’s beautiful UX and simplicity of use have resulted in winning the CES Innovation Award.
Car control.
Voice control.
Total control.
Set the scene.
Easy. Intuitive. Powerful.
“Scenes” are what automate your home. Typically they involve two parts… Triggers (if this is true) and Actions (then do that).
The Fibaro Block Scene Editor makes it easy to create simple or complex scenes with its drag-and-drop interface – with absolutely no program scripting required – anyone can do it.
Scene Actions can also be manually triggered using the Fibaro App or via your favourite voice assistant.
Secure.
No internet?
Home Center 3 Lite communicates with devices using Z-Wave – which in Australia uses the 921.4 MHz wireless frequency – far removed from the Wi-FI spectrum. This means no interference. It also means even if your internet or Wi-Fi goes down, unlike cloud based automation systems, Home Center keeps working.
Reliable wireless.
Every Z-Wave device that connects to power also repeats the wireless signal – providing a strong, robust wireless mesh network.
Unlike Wi-Fi, as you grow your smart home system, your Z-Wave network becomes stronger.
Beyond Z-Wave...
Compatible with over 2000 popular smart devices and systems.
Home Center allows you to connect not only all Z-Wave devices but also other manufacturers equipment such as smart TVs, cameras, thermostats, alarm systems, media players and more. Get unlimited smart home features with over 2000 smart devices ready to work within your smart home system – and the list is growing all the time.
Visit FIBARO Compatibility ›
Visit FIBARO Marketplace ›
Perfectly upgraded.
The Fibaro Home Center 2 has been the pinnacle of smart home control for nearly 10 years now.
The Home Center 3 builds on this solid foundation… and takes it to the next level…
50% better range
Twice the RAM than Home Center 2 for a significantly faster user experience.
2x more RAM
Twice the CPU cores than Home Center 2 for significantly faster processing power.
40% faster CPU
Never run out of space – Significantly more super-fast SSD storage than Home Center 2.
4x more storage
Too much power?
The Fibaro Home Center 3 is an absolute beast – sometimes, it may be too over-powered for a smaller smart home setup…
so allow us to introduce you to the Fibaro Home Center 3 Lite…
Fibaro | Home Center 3 | Home Center 3 Lite |
|---|---|---|
| Application | Versatile application in building automation: houses, apartments | Smaller houses (recommended up to 100 m2) and apartments |
| Number of supported devices | Up to 230 Z-Wave devices | Recommended up to 40 Z-Wave devices |
| Communication technology | Z-Wave 500, NICE 433MHz | Z-Wave 700 |
| Future implementations | Zigbee, BLE, NICE 921MHz | Not available |
| Network technologies | Ethernet, Wi-Fi 2.4GHz / 5GHz | Wi-Fi 2.4GHz |
| Processor | Quad-Core ARM Cortex A53 1,2GHz | Single-Core ARM Cortex A7 900 MHz |
| RAM | 2 GB | 512 MB |
| Flash RAM | 8 GB eMMC | 4 GB eMMC |
| Automations | LUA, block scenes, panels, schedules | LUA, block scenes, panels, schedules |
| Maximum scenes | Unlimited | Up to 20 scenes |
| IP Camera support | Unlimited | 1 x MJPG IP camera |
| Plugins and Quick App support | Unlimited | 5 plugins and 10 quick apps |
| Migration mode | Yes, from HCL, HC2 | None |
| Hubs paired mode | MASTER and SLAVE mode | SLAVE mode |
The finer details...
Physical Specifications | |
| Width: | 220 mm (W) x 35 mm (H) x 140 mm (D) |
| Weight: | 410 grams |
| Colour: | Black and copper |
| Temp. Range: | 0-40 °C |
| Operating Humidity: | max. 75% relative humidity (non-condensing) |
General Information | |
| Processor: | Quad-core Arm Cortex A53 (1.2GHz) |
| RAM: | 2GB LPDDR3 |
| Flash Memory: | 8GB eMMC |
| Z-Wave: | 500 series (Z-Wave Plus Version 2) - 921.4 MHz |
| Radio Protocol: | Z-WAVE (700 Series) - 921.4 MHz |
| Network Interface: | 10/100 (Base-T) Ethernet via RJ45 connector |
| USB Connectors: | 1x USB 2.0 |
| Power Supply: | 12V DC (adapter included) |
Wireless Protocols | |
| Z-Wave: | 500 series (Z-Wave Plus Version 2) - 921.4MHz (Australia and New Zealand) |
| RF: | 433MHz |
| Wi-Fi: | 802.11 b/g/n/a/ac (2400-2483MHz & 5150-5250MHz) |
