Dream Router.
The UniFi experience starts here.
Desktop gateway firewall with an integrated WiFi access point that powers your network and two other UniFi applications.

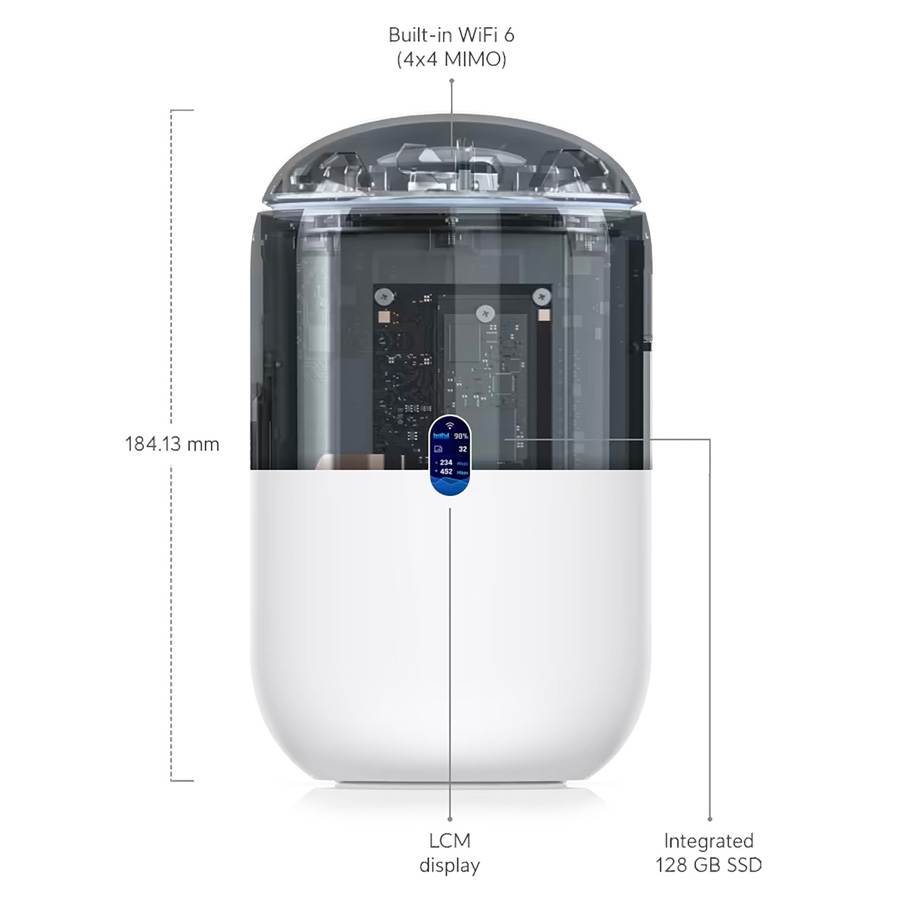

Built-in WiFi 6 access point.
(1) GbE RJ45 WAN port.
(2) PoE GbE RJ45 LAN ports.
(2) GbE RJ45 LAN ports.
128 GB SSD built-in.
microSD card slot for camera NVR.
Supports three UniFi applications.
NBN router compatible.
PLAY THE VIDEO
Hardware.
Built to perform.
A fully-featured all-in-one network security gateway, WiFi 6 access point, NBN router, NVR and ports supporting PoE output.
Deployment.
Made easy.
Powerfully simple, plug-and-play IT management for home and smaller office networks.
Control.
Full UniFi OS integration.
Run current UniFi OS applications from a single, intuitive interface and remotely access your network from anywhere with the UniFi OS portal. Tailor user, role, and group-level network use with a robust slate of management features.
Applications.
Dream Router (UDR) Supports up to three UniFi applications.
The UniFi application suite is thoughtfully constructed to serve a wide variety of technological needs within your home or business.
UniFi Protect
A license-free camera security platform with an AI-centric management experience, lightning-fast local storage, and cameras designed for every deployment.
UniFi Access
A modern access control system with touchscreen readers, live video, and mobile app credential support. Manage physical access to your home or business like never before.
UniFi Network
UniFi Network simplifies home and business IT by providing a central management interface where you can easily scale, monitor, and optimise every aspect of your network.
Management
Deployment Time
< 5 min
UniFi Devices
20+
Client Devices
150+
Performance
Networking
1 Gbps
Internet Throughput
700 Mbps
VLANs
255
Special Features
Integrated WiFi 6
4x4 MIMO
PoE Ports
(2) PoE
Storage
Integrated SSD, (1) microSD card slot
The finer details
Mechanical |
|
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Weight | 1.2 kg (2.5 lb) |
| Enclosure material | Polycarbonate |
Hardware |
|
| Processor | Dual-core Arm® Cortex® A53 at 1.35 GHz |
| System memory | 2 GB |
| Expansion slot | Micro SD memory card* *Requires a memory card with at least 128 GB of storage. |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) GbE RJ45 ports WAN: (1) GbE RJ45 port |
| PoE interface | (2) PoE (Pair B 4, 5+; 7, 😎 |
| Power method | Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V DC |
| Max. power consumption | 19.37W (Excluding PoE output) |
| PoE budget | 40W |
| Max. PoE wattage per port by PSE | 15.4W |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
3.4 dBi 4.3 dBi |
| Antenna | (1) Internal, dual-band, quad-polarity antenna |
| LCM display | (1) 0.96" screen |
| Button | Factory reset |
| LEDs | White/blue |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Gateway Features |
|
| Performance | WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
Software |
|
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
Supported Data Rates |
|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
