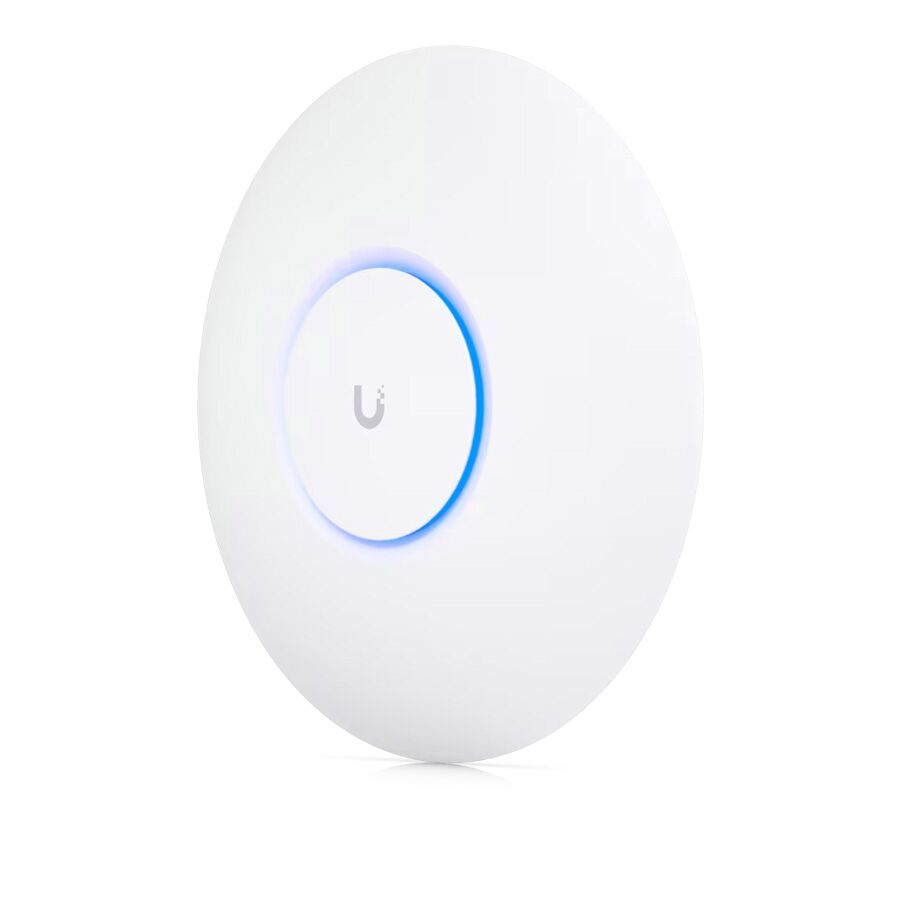

U6 Lite.
Perfect Wi-Fi.
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams ideal for smaller homes & offices.
Wi-Fi 6.
4 Spatial Streams.
Up to 115 m² Coverage.
300+ Connected Devices.
Powered using PoE.
GbE Uplink.
PLAY THE VIDEO
Hardware.
Perfect Wi-Fi for your home or office.
The Wi-Fi industry standard with exceptional radio performance and coverage.
Deployment.
Made easy.
Powerfully simple, plug-and-play IT management for home and smaller office networks.
The finer details
Mechanical | |
Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3") |
Weight | Without mount: 300 g (10.6 oz) With mount: 315 g (11.1 oz) |
Enclosure material | Polycarbonate, aluminum |
Mount material | Polycarbonate, SGCC steel |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Management interface | Ethernet Bluetooth |
Power method | PoE Passive PoE, 48V |
Power supply | PoE 48V, 0.32A PoE adapter (Not included) |
Supported voltage range | 44—57V DC |
Max. power consumption | 12W |
Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 23 dBm – |
MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 – |
Throughput rate 2.4 GHz 5 GHz 6 GHz | 300 Mbps 1201 Mbps – |
Antenna gain 2.4 GHz 5 GHz 6 GHz | 2.8 dBi 3 dBi – |
LEDs | White/blue |
Button | Factory reset |
Mounting | Wall, ceiling (Included) |
Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
Ambient operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software | |
WiFi standards | 802.11a/b/g/n/ac/ax |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 300+ |
Supported Data Rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
802.11ax (WiFi 6) | 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
Application Requirements | |
UniFi Network | Version 5.14.3 and later |
