16 Port Gigabit Switch.
With 8 PoE+ Ports.
An 16-port, Layer 2 PoE switch supporting silent fanless cooling.
PLAY THE VIDEO
Hardware.
Reliable and versatile network distribution.

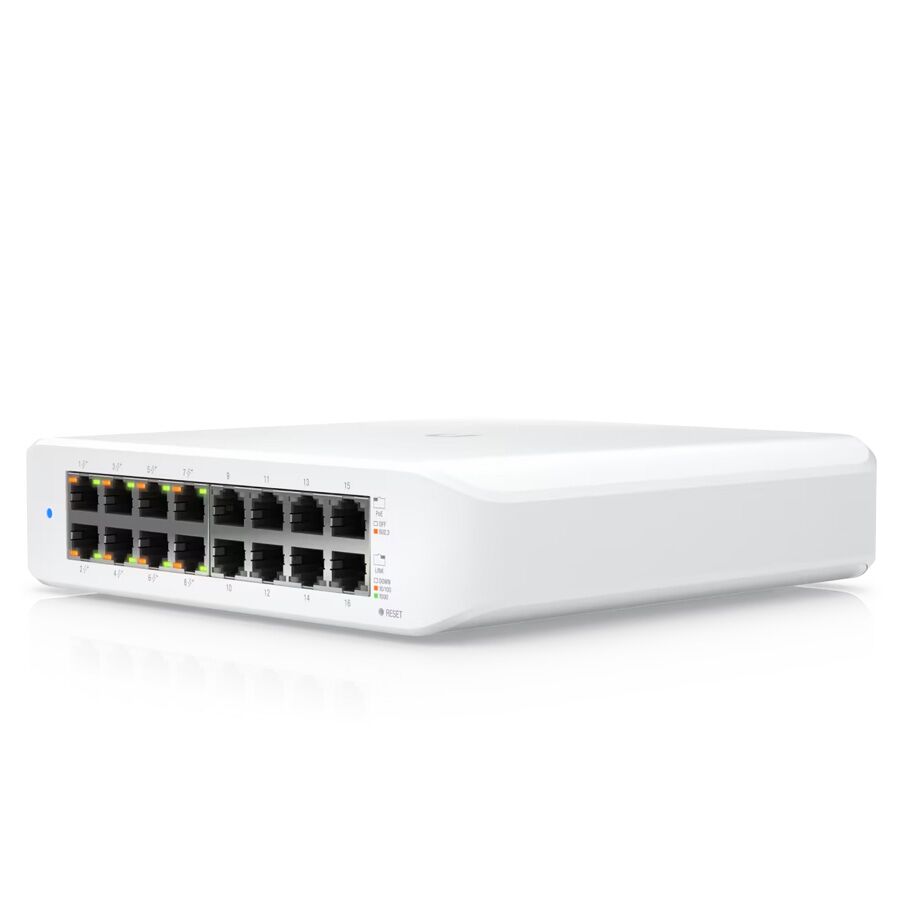

Wall-mountable, 16-port, Layer 2 PoE (8) switch with a fanless cooling system.
Deployment.
Made easy.
Powerfully simple, plug-and-play IT management for home and office networks.
The finer details
Mechanical | |
Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
Weight | 1.2 kg (2.6 lb) |
Enclosure material | Polycarbonate |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (16) GbE RJ45 ports |
PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
Total non-blocking throughput | 16 Gbps |
Switching capacity | 32 Gbps |
Power method | Universal input, 100—240V AC |
Power supply | AC/DC, internal, 60W |
Max. power consumption | 15W (Excluding PoE output) |
Total available PoE | 45W |
Max. PoE wattage per port by PSE | PoE+: 30W |
Button | Factory reset |
Ambient operating temperature | -15 to 40° C (5 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Switching Features | |
Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC |
Layer 3 features | – |
LEDs | |
System | Status |
Ethernet | PoE Speed/link/activity |
PoE | Link/activity |
Application Requirements | |
UniFi Network | Version 7.2.94 and later |
