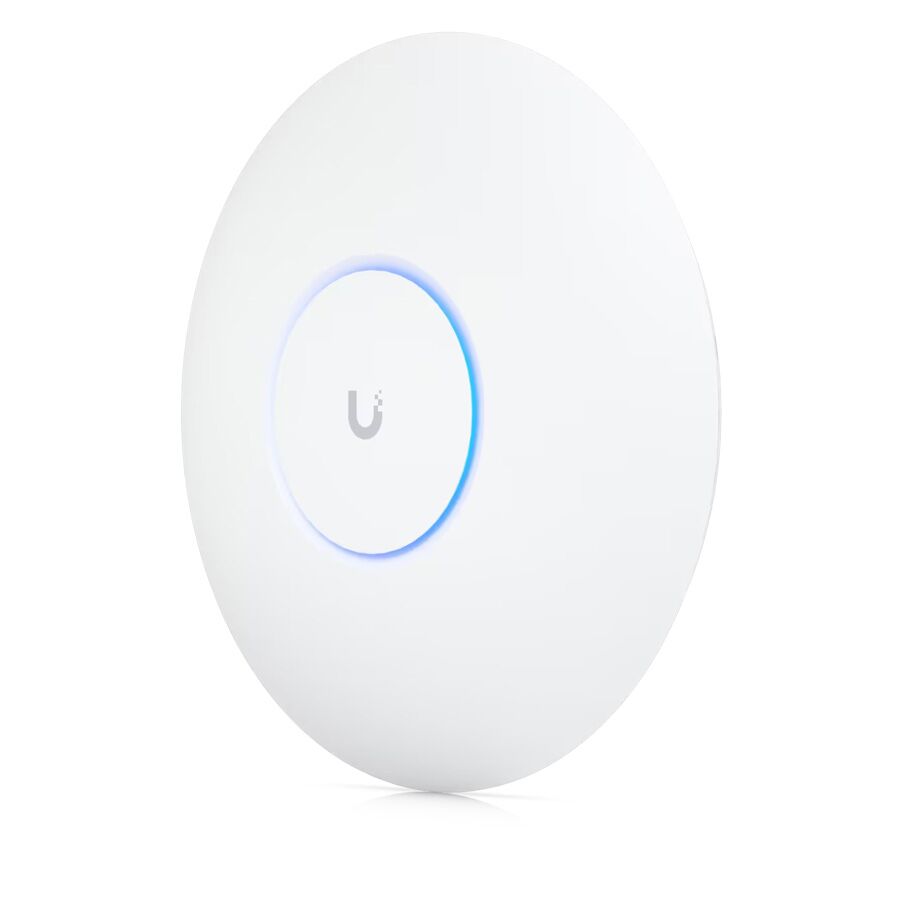

U6 PRO.
Perfected Wi-Fi.
Operates at full 4×4 MIMO with 160 MHz bandwidth for lightning fast Wi-Fi and extended coverage.
Wi-Fi 6.
6 Spatial Streams.
Up to 140 m² Coverage.
350+ Connected Devices.
Powered using PoE.
GbE Uplink.
PLAY THE VIDEO
Hardware.
Perfect Wi-Fi for your home or office.
The Wi-Fi industry standard with exceptional radio performance and coverage.
Deployment.
Made easy.
Powerfully simple, plug-and-play IT management for home and smaller office networks.
The finer details
Mechanical | |
| Dimensions | Ø197 x 35 mm (Ø7.8 x 1.4") |
| Weight | Without mount: 580 g (1.3 lb) With mount: 720 g (1.6 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE |
| Power supply | UniFi PoE switch PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 13W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 573.5 Mbps 4.8 Gbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 6 dBi – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Application Requirements | |
| UniFi Network | Version 6.1.56 and later |
