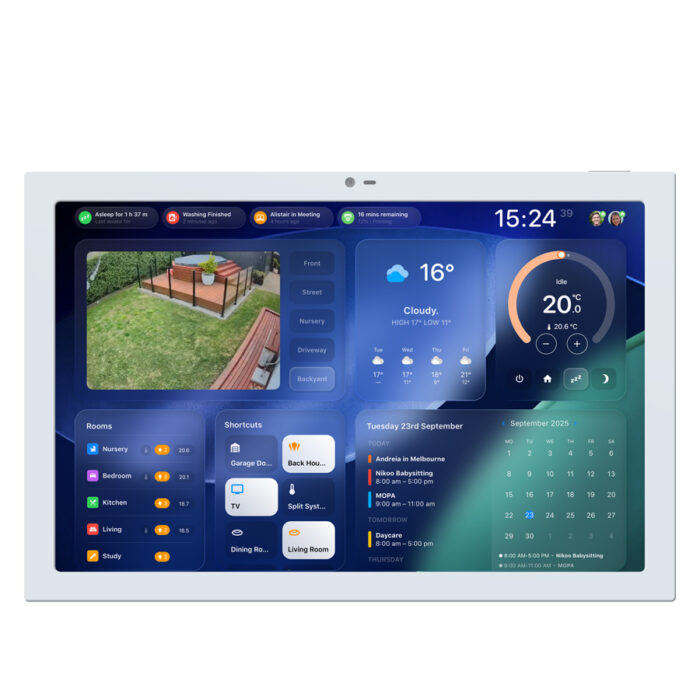

SmartHome Wall Tablet – Android Control Panel (10.1″ or 15.6″)
Price range: $499.00 through $649.00
A clean, purpose-built wall tablet for smart home control. Bonded full-hd IPS display, 10-point touch, Android 14, Wi-Fi 6, Bluetooth 5.3 and PoE-enabled Ethernet – ideal for a tidy, always-powered central smart home control station. View your Home Assistant dashboard, cameras or video doorbell (or any other app than runs on Android). Includes wall-hanging hardware and handy built-ins like mic/speakers, camera, light sensor, colour LED light up frame and temperature/humidity sensor. Available in 10.1″ or 15.6″.
FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Android wall mount tablet.
A central control panel for your entire smart home.
Keep the essentials front and centre – scenes, climate, lighting, blinds, security, cameras and video doorbell… all accessed from this easy to install and use Android wall mount tablet – always ready to serve.
Available in 10.1″ or 15.6″
Performance
Plenty of power with a RK3576S 8-core processor, 4GB RAM and 64GB storage.
Connectivity
Supports Wi-Fi 6 or Gigabit Ethernet for easy inclusion onto your home or business network.
Power
Power via PoE (Power over Ethernet) or DC plug pack (included) – the choice is yours.
Installation
All hardware and accessories are included for easy, DIY or professional in-wall mounting.
Touchscreen
Fully bonded HD IPS touchscreen (10-point touch) available in 10.1 or 15.6 inches.
Audio & Mic
Built-in speakers and microphone enable audio, announcements, chimes and intercom features.
LED Border
Controllable white and 16m colour LED border. Perfect for automations and at-a-glance alerts.
Google Play
Runs on modern Android 14 with access to the offical Google Play store and apps.
Your smart home. On the wall.
Stop unlocking your phone and searching for apps just to control your home.
Our wall tablet gives you a dedicated smart home dashboard that is always ready – perfect for quick control of lighting, climate, music, cameras and automations.
Apps.
Download virtually any app from the Google Play Store.
Enjoy full access to the official Google Play Store, allowing you to install the smart home apps you already use and love. From Home Assistant and Homey Pro to security cameras, intercoms, video doorbells and more.
Hardware.
Engineered for performance.
With 4GB RAM and 64GB SSD storage and driven by an advanced RK3576S processor, combining four high-performance Cortex-A72 cores with four energy-efficient Cortex-A53 cores to deliver an exceptional balance of processing power, speed and efficiency.
8-CORE RK3576S CPU
4GB RAM
64GB SSD STORAGE
Easy installation.
Everything you need is included.
Installation is simple and flexible, with power options to suit your setup… PoE (Power over Ethernet), or a DC plug pack (included), while the included mounting bracket allows for a clean and secure wall installation.
Step 1.
Choose a mounting location and check it is clear of studs, wiring, pipes or other obstructions.
Step 2.
Cut a 90mm (W) x 90mm (H) hole in the plaster.
Step 3.
Insert and clip the included C-Clip into the plaster cut-out.
Step 4.
Screw the included 4-hole Mounting Plate to the C-Clip.
Step 5.
Connect power to the tablet using either PoE or the DC plug pack inside the wall cavity.
Step 6.
Clip the Tablet onto the mounting plate. You are done.
Power.
You have 2 options…
Power over Ethernet (PoE)
DC Plug Pack (included)

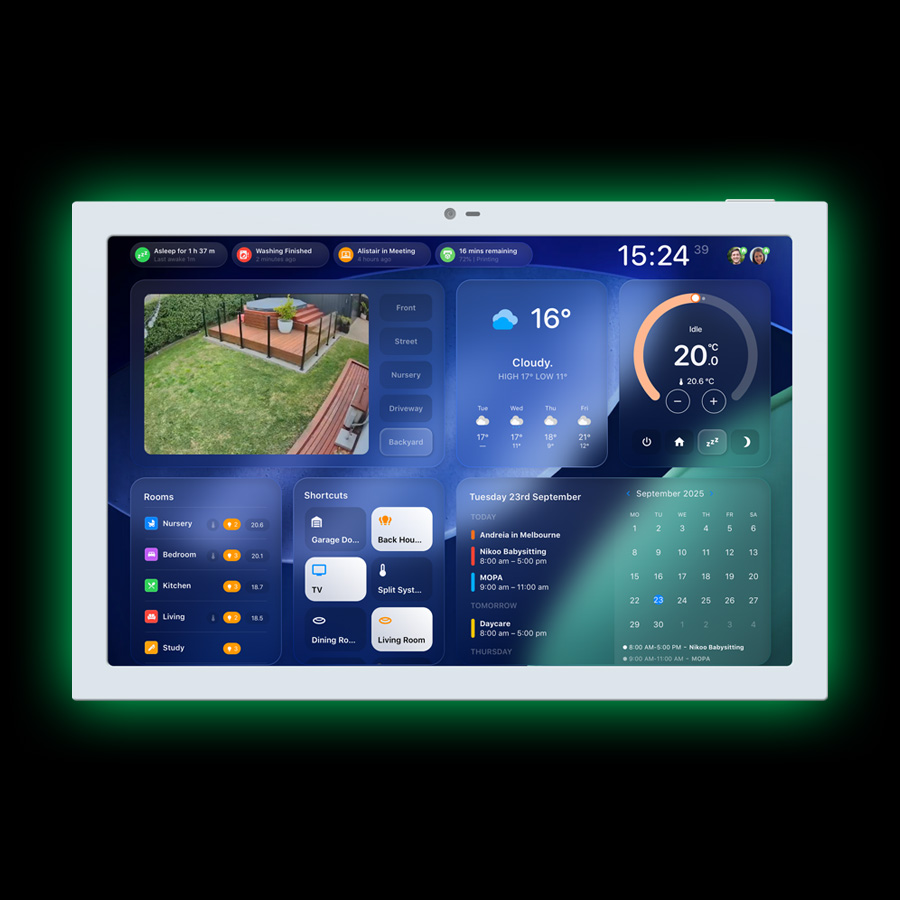

LED Edge Halo
Over 16 million colours.
The built-in LED Edge Halo gives your home a new language… beautiful white, soft hues or vibrant colour. Use it in your Homey Pro or Home Assistant automations to visually show what is happening in your home.
- Mailbox alert: glow red when there’s mail in the mailbox.
- Weather cue: glow blue if rain is expected today.
- Alarm status: glow green when the house is armed / amber when in “home” mode.
- Doorbell / visitor: glow white when the video doorbell rings.
- Garage door reminder: glow purple if the garage is left open after sunset.
- Meeting mode: glow red during a zoom call so the family knows not to interrupt.
10.1″ Dimensions
15.6″ Dimensions
The finer details
| Specification | 10.1 inch Model | 15.6 inch Model |
|---|---|---|
| Operating System | Android 14 | Android 14 |
| CPU | RK3576S (Quad-core Cortex-A53 + Quad-core Cortex-A72) | RK3576S (Quad-core Cortex-A53 + Quad-core Cortex-A72) |
| RAM | 4GB | 4GB |
| Storage | 64GB internal memory | 64GB internal memory |
| Touch Screen | 10-point capacitive touch | 10-point capacitive touch |
| Display | 10.1" fully bonded IPS “full view” screen | 15.6" fully bonded IPS “full view” screen |
| Resolution | 1280 × 800 | 1920 × 1080 |
| Aspect Ratio | 16:10 | 16:9 |
| Display Colours | 16.7M colours | 16.7M colours |
| Viewing Angle | 85/85/85/85 (L/R/U/D) | R/L 85/85, U/D 85/85 |
| Contrast Ratio | 800:1 | 1000:1 |
| Brightness (Luminance) | 250 cd/m² | 300 cd/m² |
| Backlight | ELed | ELed |
| Response Time | 30 ms | 30 ms |
| Wi-Fi | Wi-Fi 6 | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.3 | Bluetooth 5.3 |
| Ethernet | 10/100/1000 Mbps | 100/1000 Mbps |
| PoE | RJ45 Ethernet with PoE (IEEE 802.3at, PoE+, Class 4, 25.5W) | |

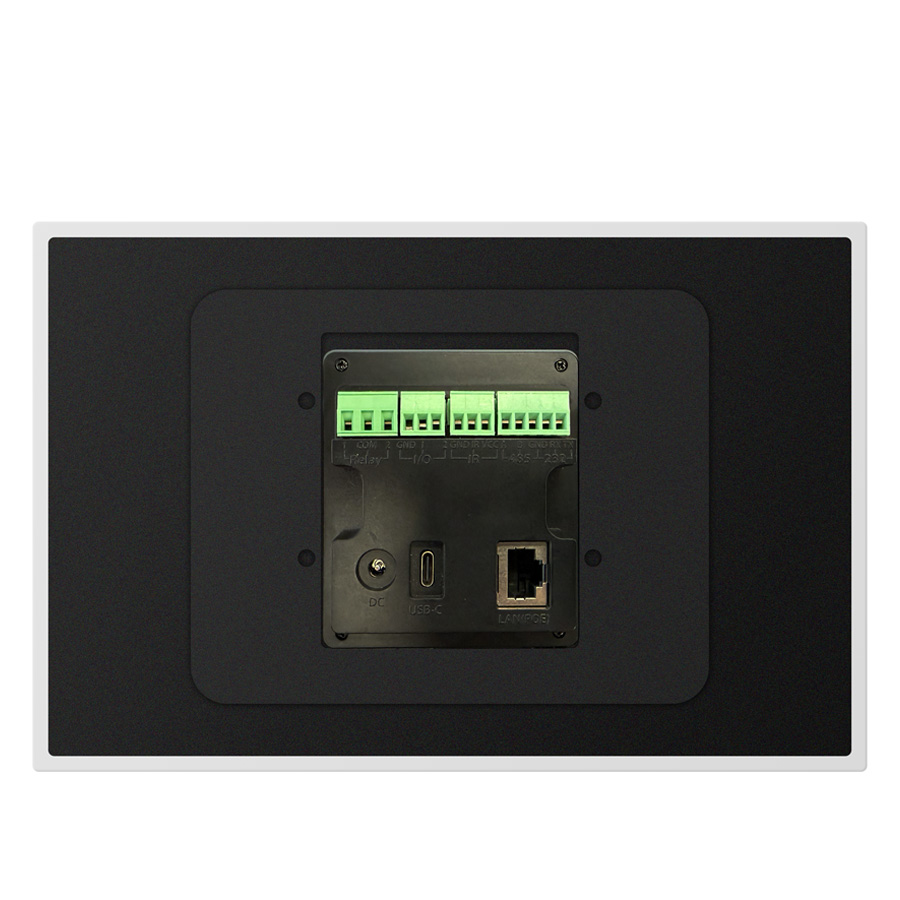

| Ports / Interfaces | Relay port (for relay-connected devices), I/O port, IR port (external plug-in receiver), RS-485 serial, RS-232 serial, RJ45 (LAN/PoE), USB-C (OTG), DC power jack | |
| Media Playback (Video) | MPEG-1/2/4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC (up to 4K) | |
| Media Playback (Audio) | MP3, WMA, AAC, WAV, OGG, etc. | |
| Media Playback (Photo) | JPEG, PNG, GIF, etc. | |
| Microphones | Four microphones | |
| Speakers | 2 × 2W (BOX chamber horn) | |
| Camera | 5MP | |
| LED Light Strip | RGB | |
| Sensors | Temperature & humidity sensor (Yes), light sensor (Yes) | |
| MQTT | Included | |
| Language | Multi-language | |
| Colour | White | |
| Mounting / Usage | Wall hanging (standard accessory) | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 60°C | |
| Operating Humidity | 20% to 80% RH | |
| Storage Humidity | 10% to 95% RH | |
| Dimensions: | 160mm (h) x 242mm (w) x 14mm (thickness) | 226mm (h) x 362mm (w) x 14mm (thickness) |
| Power Adapter | SAA certified adapter, 12V / 1.5A | SAA certified adapter, 12V / 2A |
| In the Box | Tablet, Wall Mount Brackets & Accessories, User Manual, USB-C Cable, DC Power Adapter | |
Reviews (0)
Questions & Answers (6)
Product Questions & Answers
-
What is the weight?
-
Q What is the weight?A
10" = 670 grams
15" = 1,380 grams
May I ask for a picture or a diagram of the wall mounting hardware these devices ship with?
-
Q May I ask for a picture or a diagram of the wall mounting hardware these devices ship with?A
Please send an email directly to [email protected] we can share an image with you.
how do the on board sensors and led integrate into home assistant ?
-
Q how do the on board sensors and led integrate into home assistant ?A
Via MQTT.
Can the halo RGB light be controlled by a flow in Homey? From the smart home app, I can only see on THEN cards Turn on, off or toggle.
-
Q Can the halo RGB light be controlled by a flow in Homey? From the smart home app, I can only see ...... Read moreA
Yes, you can certainly control the RGB Halo via Flows (including setting colour). You can also Play a custom audio file, control the built in relay and more via Flows.
Can I get the mounting specs for this please, so I know what size hole I need in the wall.... I need to know what depth into the wall I need to plan for.
-
Q Can I get the mounting specs for this please, so I know what size hole I need in the wall.... I n...... Read moreA
The hole size is approx. 75mm W x 90mm H x 23mm D (slightly more if you need connect a Cat6 cable).
Can this be used as a drop-in replacement for a MyAir tablet since it has integrated RS485 ?
-
Q Can this be used as a drop-in replacement for a MyAir tablet since it has integrated RS485 ?A
I doubt it very much - the MyAir use of RS485 is likely to be a proprietary communication.
