Shelly Wall Display
Original price was: $249.00.$195.00Current price is: $195.00.

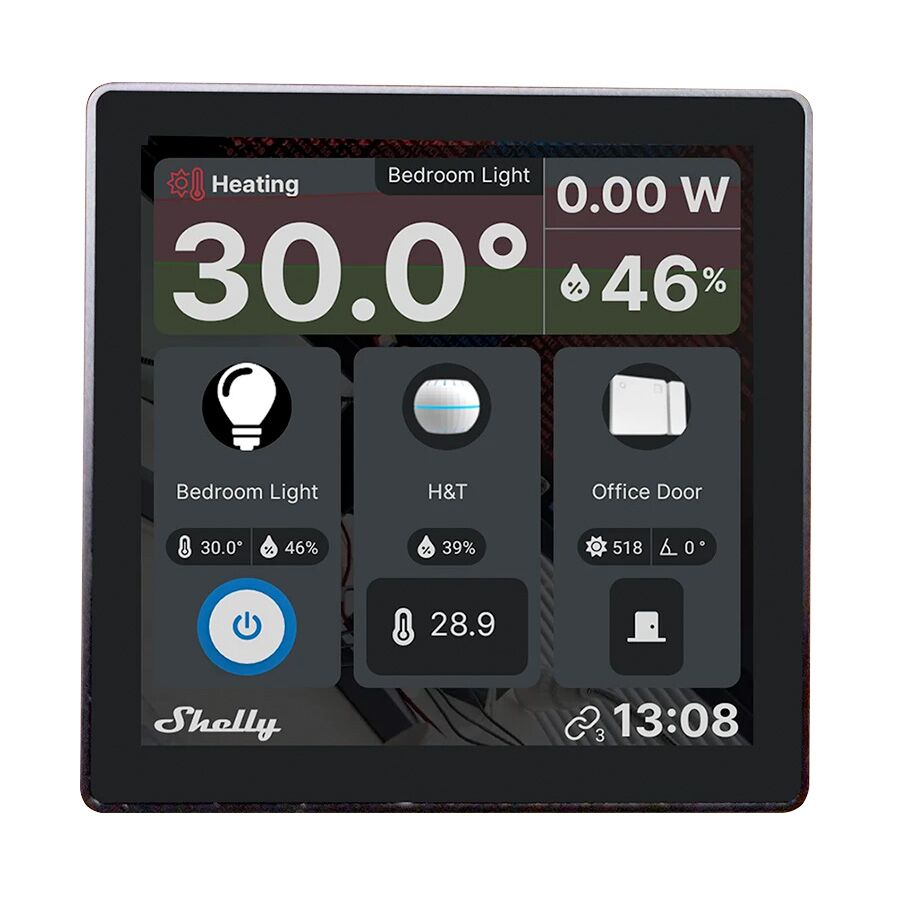

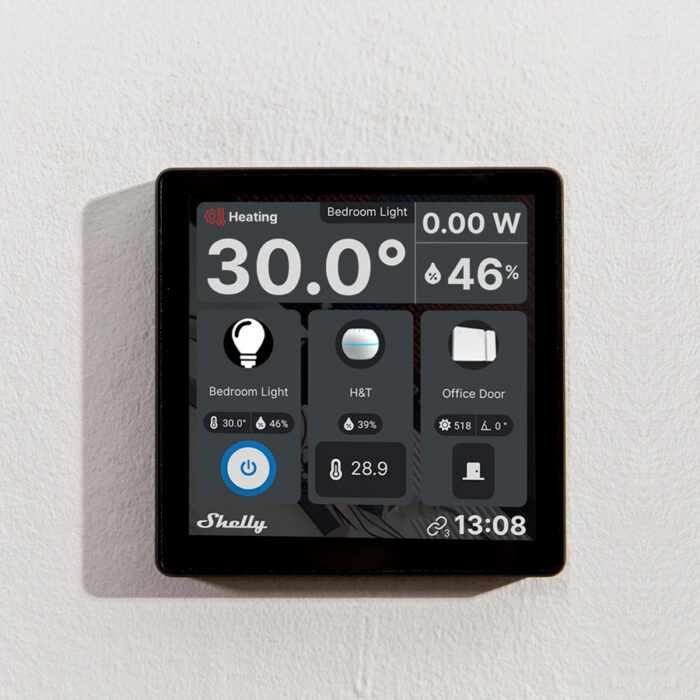

Shelly Wall Display is an intuitive 4” wall display that gives you easy, centralised control and monitoring of all your Shelly devices and scenes. With a beautiful, minimalistic look and customisable display, Shelly Wall Display will seamlessly blend with your interior décor and adjust perfectly to your needs. Featuring embedded sensors for temperature, humidity & LUX (light level). Includes built-in 5A relay switch.
Available in Black or White.
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
Wall display.
Your smart home at your fingertips.
Wi-Fi and Bluetooth
Connect it to your Wi-Fi network. No HUB required! Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Integrated switch
Built-in 5 A relay (on/off) switch for lighting or appliance control.
Embedded sensors
Integrated temperature, humidity & LUX sensors for monitoring and automations.
Power monitoring
Display all Shelly power measuring devices in your chosen room.
Thermostat control
Monitor, manage and fine-tune your heating or cooling settings (coming soon).
Easy navigation
Scroll through different menus and control your Shelly devices and scenes with just a tap.
Home screen.
Personalised just the way you like it.
Tailor your home screen just the way you like it. Effortlessly arrange and customise the layout to showcase up to 6 devices that matter most to you. You can switch devices on or off with a single tap, monitor humidity and temperature, and know the room’s current power consumption with just a glance.
Favourites.
Quick Control Center with your favourite devices.
This dedicated space lets you create an unlimited collection of your most-used devices, groups, and scenes, putting them all at easy access. Need to set the perfect ambiance? Want to control device groups with a single tap? Simply add them to your favourites and navigate to them instantly. Say goodbye to scrolling through menus – the Favourites Tab ensures that whatever you need is right where you expect it to be.
Devices.
Device tab (room-specific).
Groups.
Room specific Groups Tab.
Scenes.
Scenes Tab (room-specific).
The finer details
Physical Specifications | |
| Dimensions: | 85mm x 85mm x 30mm |
| Screen Size: | 4 Inches |
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
Power | |
| Power supply AC: | 230/240V VAC, 50/60Hz |
| Max switching current AC: | 5A |
| External protection: | 5 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Power consumption: | < 1 W |
| Neutral wire: | Required |
Sensors | |
| Temperature: | Yes |
| Humidity: | Yes |
| LUX (Light Level: | Yes |
Connectivity | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2400 - 2495 MHz |
| Signal power: | 1mW |
| Wi-Fi Range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes (4.2) |
Special Functions | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook |
| MQTT: | Yes |
| Scripting: | Yes |
Product Questions & Answers
- I have been unable to find much information about user security for this device. It looks like from the web interface it can be locked, presumably to display a single or multiple screens, but can it have a PIN such that a user can see the status of a connected device but not change it unless they enter the PIN? For example, I'd like to be able to display the status of a switch (like a Shelly 1PM) ... Read more
- Q I have been unable to find much information about user security for this device. It looks like fr...... Read moreA
I do not believe this is possible I am sorry to say.
