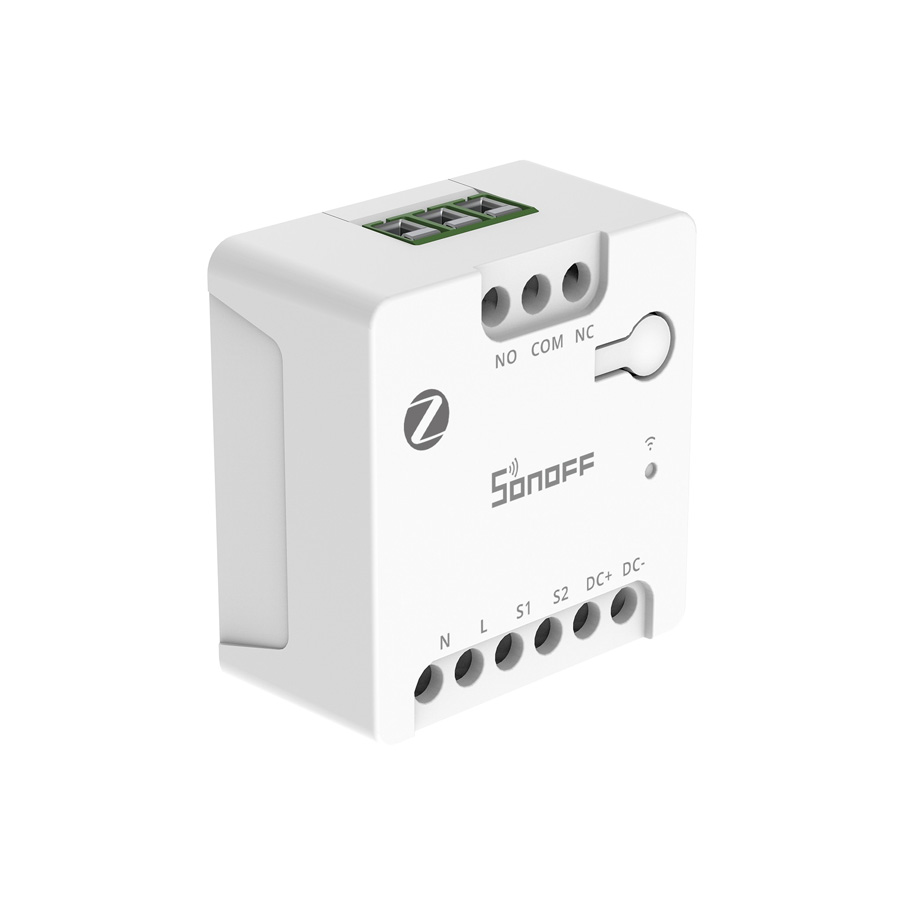

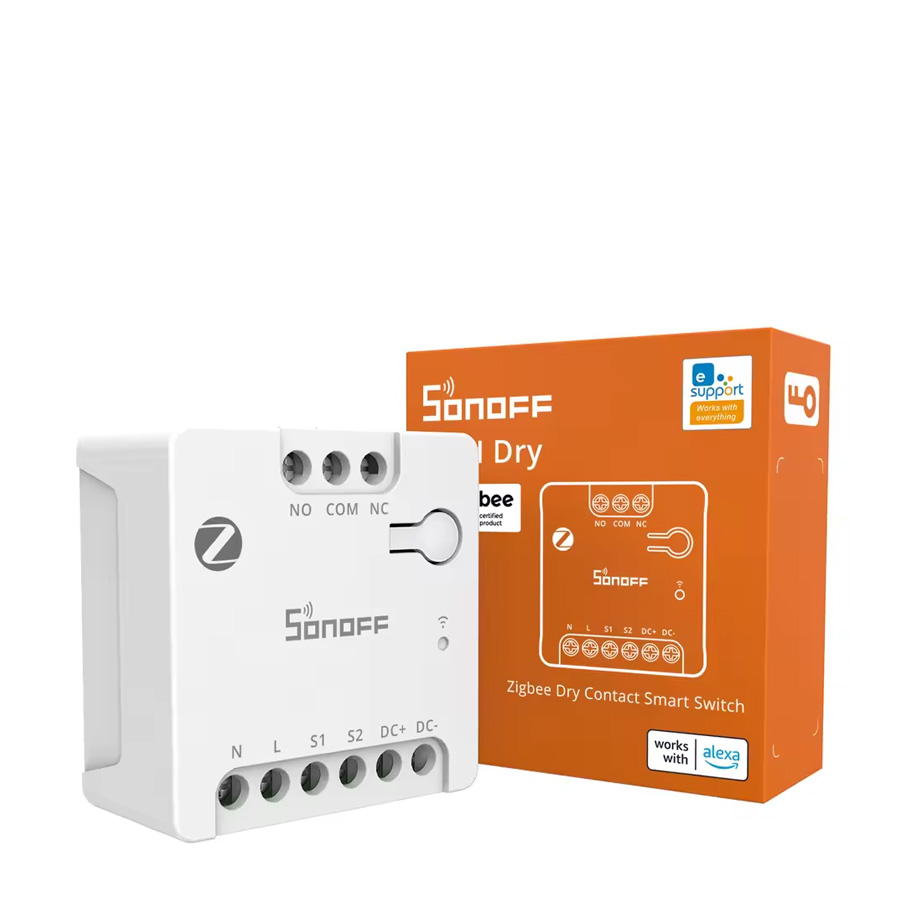

Sonoff Zigbee Dry Contact Relay Switch
$29.00
The SONOFF MINI-ZBD Zigbee Dry Contact Relay Switch provides smart control for garage doors, gates, boilers, access systems and other dry contact applications. Supporting AC or DC power, NO/NC relay outputs and Zigbee router functionality, it offers flexible integration with compatible Zigbee smart home systems.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
SONOFF
Zigbee Dry Contact Relay Switch.

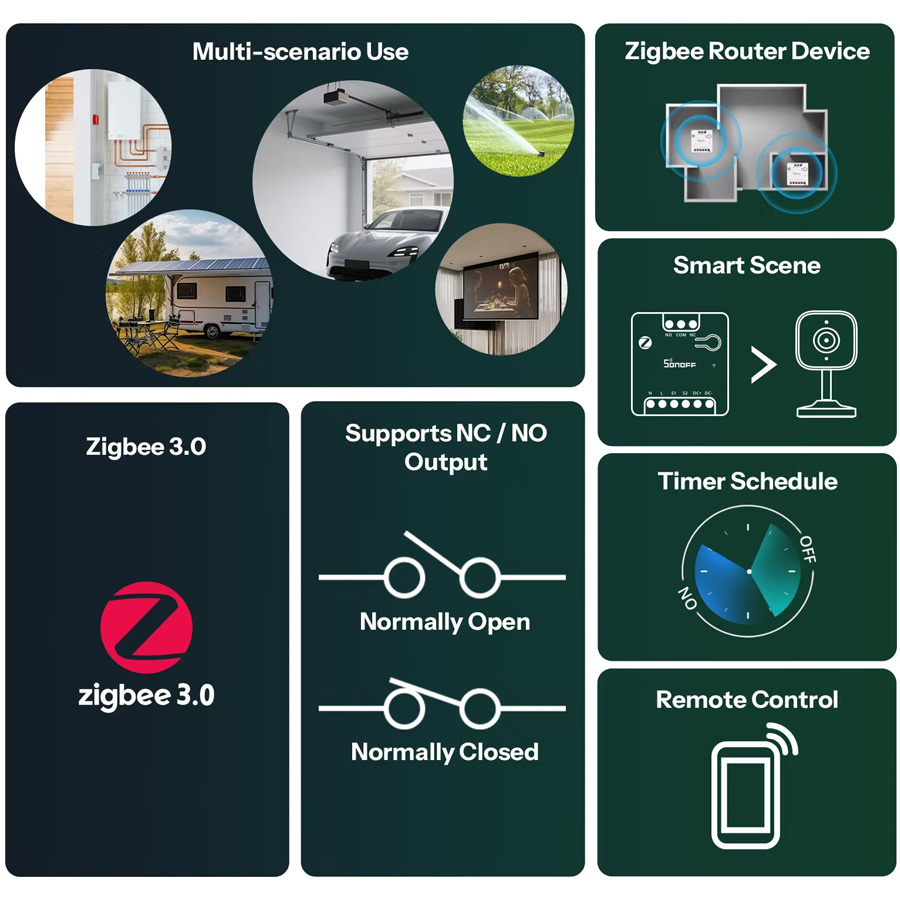

- Zigbee 3.0 connectivity enables remote control, voice control, scheduling and smart automations through a compatible Zigbee hub and supported smart home platform.
- Dry contact switching makes it ideal for controlling garage doors, gates, motors and other dry contact input devices.
- Supports both AC and low-voltage DC power supply for more flexible applications.
- Inching mode allows momentary switching for devices that require pulse-style trigger control.
- Ideal for upgrading traditional dry contact control systems with reliable smart control.
- Optional manual switch control while adding smart control via your Zigbee-compatible platform.
Dry contact.
Dry (or voltage-free) contact, works like a simple on/off (open/close) gate between two points. It is completely isolated from the module’s power supply.
Garage door.
Make your garage door motor smart with MINI-ZBD. You can open, close or check the status of your garage door from anywhere using your Zigbee compatible app.
Valves or motors.
Engineered to control DC low-power solenoid valves or motor loads up to 8W, offering smart control that is cost-effective and reliable for a wide range of DC low-power applications.
Contactors.
MINI-ZBD has a relay with a rated current output of 2A. When integrated with a “contactor”, a lower-power control circuit can safely and efficiently switch high-power electrical devices.
The finer details
| Model | MINI-ZBD |
|---|---|
| Product Type | Zigbee Dry Contact Smart Switch |
| Power Supply | AC 100–240V~ or DC 12–48V |
| Wireless Connection | Wi-Fi |
| Protocol | Zigbee 3.0 |
| Output Type | Dry Contact |
| Contact Type | NO / NC |
| Typical Applications | Garage doors, gates, boilers, access control panels and other dry contact input devices |
| DC Motor Support | Low-power DC motors up to 8W |
| Net Weight | 34.5g |
| Product Dimensions | 41 × 43 × 21.5mm |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 5%–95% RH, non-condensing |
| Certifications | C-Tick, CE / FCC / RoHS |
| SDoC | MINI-ZBD-Suppliers_Declaration_of_Conformity.pdf |
