Chuango Wireless Door / Window Sensor
Home SECURITY Chuango Wireless Alarm Chuango Sensors Chuango Wireless Door / Window Sensor
Chuango Wireless Motion Sensor $59.00 $49.00
Back to products
iSmartGate Garage Door and Gate Controller
iSmartGate Garage Door and Gate Controller $189.00 – $249.00
Chuango

Chuango Wireless Door / Window Sensor

SKU: DWC-102 Categories: Chuango Sensors, Chuango Wireless Alarm, SECURITY
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$35.00 $29.00

Wireless door/window sensors are used to detect when a door or window is opened. These are called Reed switches. They consist of the Reed switch sensor and a small magnet. The Reed switch is placed on either the frame of the door/window and the magnet on the opening part of the door/window. When they are separated the sensor sends a signal to the alarm control panel, if the alarm system is armed it will be triggered. Designed to work perfectly with the Chuango H4 Alarm System.

Free 12 Month Extended Warranty included: 2 Years

Purchase now and earn 29 Reward Points.
Found this product at a lower price?
Compare
Add to wishlist
FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $149
Only $10 shipping within Australia (free over $149). Great rates to New Zealand. Find out more.
  • Description
  • Reviews (1)
  • Questions & Answers (2)
Description

Open. Closed.

Protected.

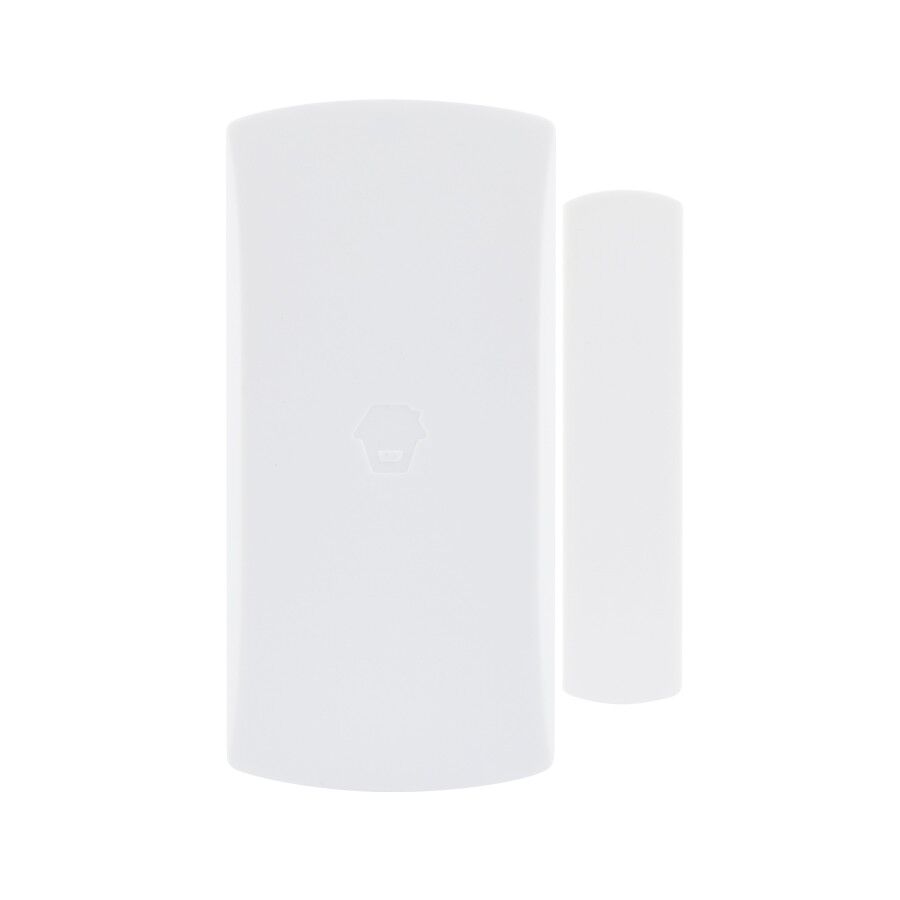

The Chuango Door / Window sensor can be installed on doors and windows or any other objects that open and close. The sensor transmits a signal to the H4 Security Console when the magnet mounted near the sensor is moved away (door or window is opened).
chuango-wireless-door-window-sensor-hl
chuango-wireless-door-window-sensor-hr
Secure when you are home or away.
Door/window sensors are a great way to monitor and protect perimeter entry points for your premises. This also means you can set your alarm at night and still move freely without setting the alarm off.

Installation is simple.

Mount the Chuango Wireless Door / Window Sensor onto any door or window you would like to monitor.

Pair the Door / Window Sensor to the H4 Security Console and you’re done – no wiring required.

The finer details

Physical Specifications

Sensor Dimensions: 71mm x 34mm x 17.5mm
Magnet Dimensions: 51mm x 12mm x 13.5mm
Weight: 80 grams
Temp. Range: -10 ~ 55 °C

Connectivity

Wireless frequency: 433MHz
Transmitting distance: < 80m (in open space) / 20m ~ 30m (through walls)

Power

Battery: DC 1.5V 2 x AA batteries (included)
Battery life: Up to 5 years
Reviews (1)

1 review for Chuango Wireless Door / Window Sensor

  1. Rated 5 out of 5

    Asher – October 19, 2021

    We have a large home with a lot of windows, so went with the biggest starter kit (and still had to order extras!) My husband was able to install everything pretty easily. A very good system so far.

Add a review Cancel reply

Your email address will not be published. Required fields are marked *

18 − one =

Questions & Answers (2)

Product Questions & Answers

    can i use the accessories such as door sensor, motion detector, etc without using the alarm panel? like can i add door sensor, PIR to the app directly?
  1. Q can i use the accessories such as door sensor, motion detector, etc without using the alarm panel...... Read more
    A You will need the main H4 hub for the accessories to work.
  2. When replacing the batteries for the sensor, is it just a matter of taking out the old battery and putting in a new one? Or do I have to reconfigure the sensor (as in like the first time i set it up) after replacing it with a new battery?
  3. Q When replacing the batteries for the sensor, is it just a matter of taking out the old battery an...... Read more
    A You will not need to reconfigure the Chuango door / window sensor after replacing batteries. All configurations are stored in "non-volatile" memory, which means the setting are saved even when power is lost.
