Grandstream Managed PoE Pro Network Switches
Price range: $237.00 through $397.00

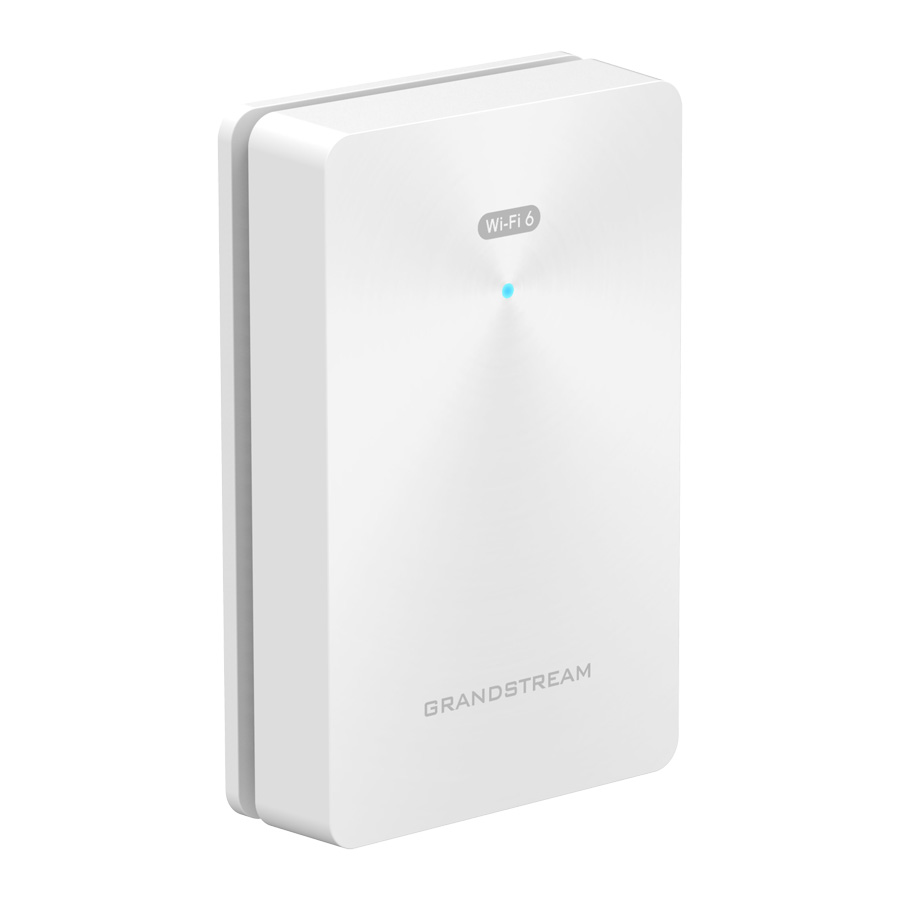

Grandstream In-Wall Wi-Fi 6 Access Point
$147.00
The Grandstream GWN7661E is a sleek in-wall Wi-Fi 6 (802.11ax) access point designed for fast, reliable wireless in both homes and commercial spaces. Ideal for hotel rooms, apartments, offices, and smart homes, it delivers stronger performance in high-device environments with improved speed, efficiency, and coverage. With business-grade security and flexible management options, the GWN7661E is a clean, professional solution for adding high-quality Wi-Fi exactly where it’s needed—without bulky hardware. Can be wall mounted or installed invisibly inside a wall cavity.
Only 2 left in stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream
In-Wall Wi-Fi 6 Access Point
- 3 Gbps wireless throughput and 4x Gigabit wireline ports
- 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology
- Supports up to 256 concurrent Wi-Fi client devices
- Self-power adaptation upon auto-detection of PoE or PoE+
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Dual-Band MIMO
2×2:2 (2.4G) and 3×3:2 (5G) MU-MIMO with OFDMA technology.
Gigabit
3 Gbps wireless throughput and 4x Gigabit wireline ports.
Huge coverage
Up to 100-meter coverage range.
Up to 256 devices
Supports up to 256 concurrently connected Wi-Fi wireless client devices.
PoE
Self power adaptation upon auto detection of PoE or PoE+.
Advanced security
Anti-hacking secure boot and critical data/control lockdown via unique digital device signatures.
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications.
Easy management
Embedded controller and free cloud can manage itself and up to 50 GWN APs.
The finer details
| Specification | GWN7661E |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas |
2× dual-band internal antennas, 1× 5G internal antenna Antenna1: 2.4G gain 3.0dBi, 5G gain 5.0dBi Antenna2: 2.4G gain 2.5dBi, 5G gain 4.5dBi 5G Antenna gain 4.5dBi |
| Wi-Fi Data Rates |
5G: 802.11ax: 7.3 Mbps to 2402 Mbps 802.11ac: 6.5 Mbps to 1732 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: 802.11ax: 7.3 Mbps to 573.5 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands |
2.4GHz: 2412 – 2483.5 MHz 5GHz: 5150 – 5895 MHz |
| Channel Bandwidth |
2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz |
| Wi-Fi & System Security |
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3 Anti-hacking secure boot and critical data/control lockdown via digital signatures Unique security certificate and random default password per device |
| MIMO | 2×2:2 (2.4GHz), 3×3:2 (5GHz) |
| Coverage Range | Up to 100 meters |
| Maximum TX Power |
2.4G: 24dBm 5G: 26dBm |
| Receiver Sensitivity |
5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps 802.11n 20MHz: -73dBm @MCS7; 40MHz: -70dBm @MCS7 802.11ac 20MHz: -67dBm @MCS8; 40MHz: -63dBm @MCS9; 80MHz: -59dBm @MCS9 802.11ax 20MHz: -60dBm @MCS11; 40MHz: -58dBm @MCS11; 80MHz: -56dBm @MCS11; 160MHz: -52dBm @MCS11 2.4G: 802.11b: -96dBm @1Mbps, -88dBm @11Mbps 802.11g: -93dBm @6Mbps, -75dBm @54Mbps 802.11n 20MHz: -73dBm @MCS7; 40MHz: -70dBm @MCS7 802.11ax 20MHz: -60dBm @MCS11; 40MHz: -58dBm @MCS11 |
| SSIDs | 32 total (16 per radio: 2.4GHz & 5GHz) |
| Concurrent Clients | 256 |
| Network Interfaces |
1× 10/100/1000M uplink Ethernet port with PoE/PoE+ 2× 10/100/1000M Ethernet port with PSE 1× 10/100/1000M Ethernet port |
| Auxiliary Ports | 1× Reset pinhole, 1× Kensington lock |

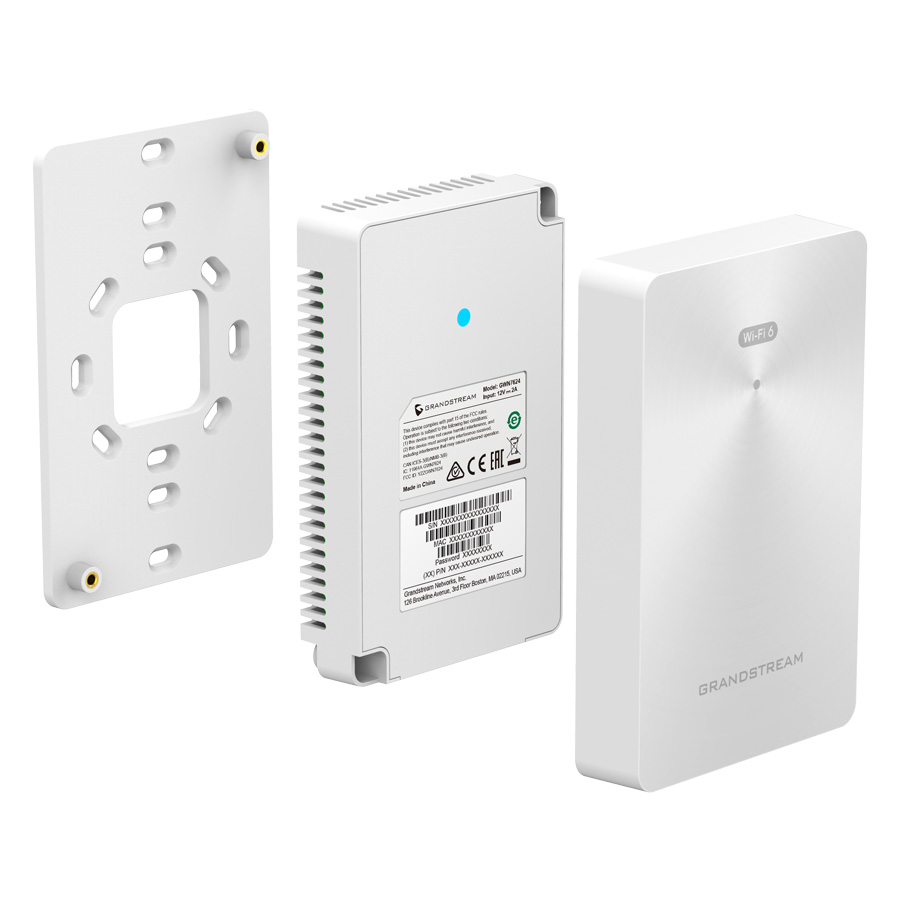

| Mounting | In-wall mountable |
| LEDs | 1 tri-color LED for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management |
Embedded controller manages up to 50 local GWN APs GDMS (Networking): free cloud management for unlimited GWN devices GWN Manager: on-premise software controller for up to 3,000 GWN APs |
| Power & Green Energy Efficiency |
Supports 802.3az PoE 802.3af / 802.3at Max output of all PSE ports: 12W Maximum Power Consumption: 25W |
| Environmental |
Operation: 0°C to 45°C Storage: -30°C to 60°C Humidity: 5% to 95% (Non-condensing) |
| Physical |
Unit: 135mm(L) × 86mm(W) × 38.5mm(H); Weight: 241g Package: 176mm(L) × 118.5mm(W) × 65mm(H); Weight: 361g |
| Package Content | GWN7661E Wi-Fi 6 In-Wall Wireless AP, Mounting Kits, Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC |
