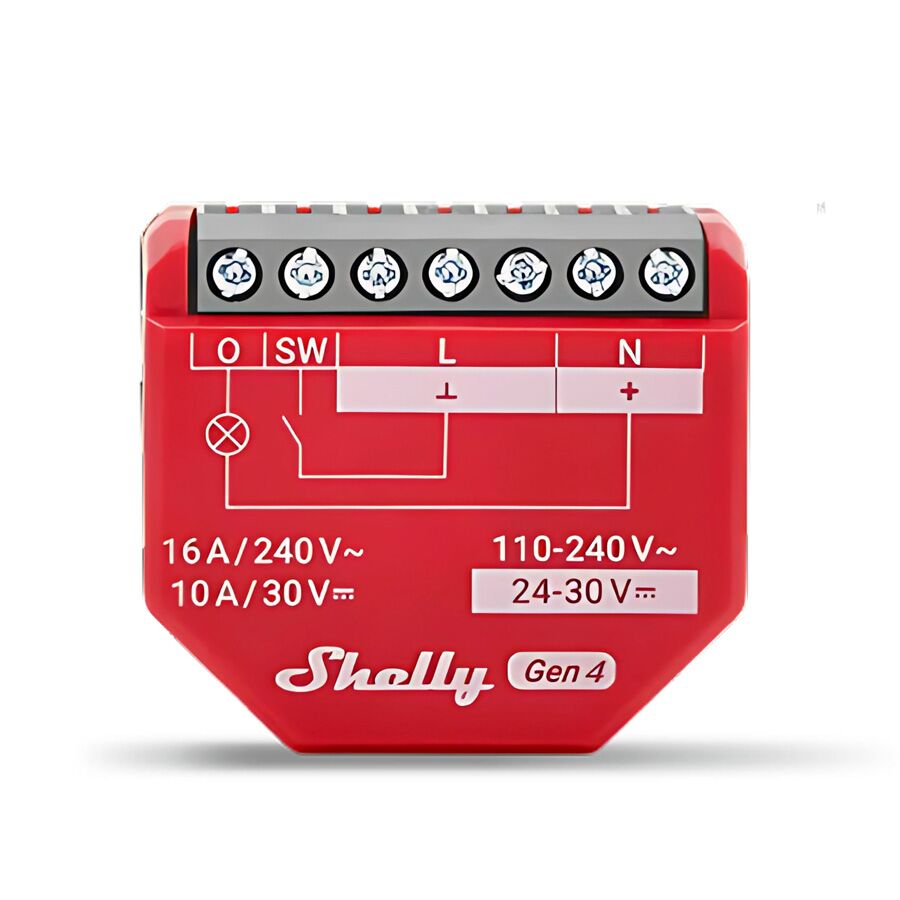

Shelly 1PM Gen4 Relay Switch
$45.00
A smart switch designed for optimal appliance control and energy savings. With new multi-protocol connectivity, you can choose the protocol that best suits your home network – Zigbee, Matter, Wi-Fi or Bluetooth. Shelly 1PM Gen4 features built-in power monitoring to track real-time energy consumption and optimise usage, helping you save energy and reduce electricity costs. Enjoy enhanced compatibility and speed, all in its usual compact and easy-to-install design. 16A max load.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
On. Off.
Gen4.
Experience next-level smart home automation with the new Shelly Gen4.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network.
WI-FI
MATTER
ZIGBEE
BLUETOOTH
Multi-protocol support
Highly compatible! Choose the best protocol for your smart home… Zigbee, Matter or Wi-Fi.
Supports Matter
Certified for the new Matter standard – works directly with Apple, Google and Alexa.
Low voltage support
Shelly 1PM Gen4 can control and be powered by 110-240 VAC or 24-30 VDC.
Power metering
Shelly 1PM Gen4 provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Gen4 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
New.
Shelly Gen4.
Shelly 1PM Gen4 – the smart switch for efficient appliance / lighting control and energy monitoring, now even more powerful with the new Shelly chip and multi-protocol support. Perfect for automating lighting, controlling on/off appliances and monitoring energy usage. Shelly 1PM Gen4 features precise power metering and free data storage for detailed analysis of your energy consumption.
Automate.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly 1PM Gen4 will allow you to automate your lights and appliances on a schedule or when certain conditions around your home are met (e.g. smart sensors are triggered).
Monitor.
You can now monitor and analyse the power consumption of your electrical appliances and lighting. Shelly 1PM Gen4 has an integrated precise power meter that allow you to measure the power consumption and features free data storage for analysis. Help save the environment and save money.
Control.
From anywhere in the World.
With Shelly 1PM Gen4 you can automate lighting and almost any electrical appliance in your home and control it remotely. Shelly 1PM Gen4 can even control appliances with large loads (up to 16A) which makes it perfect for monitoring and control of power hungry appliances.
The finer details
Physical | |
| Dimensions: | 37mm x 42mm x 16mm |
| Weight: | 27 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Environmental | |
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical | |
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | 24 – 30V |
| Max. switching voltage: | 240 V~ / 30 V⎓ |
| Max. switching current: | 16 A/240 V~ / 10 A/30 V⎓ |
| Power consumption: | < 1 W |
| Neutral wire: | Required |
Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
Special functions | |
| Dry contacts: | No |
| Roller shutter mode: | No |
| Overheat protection: | Yes |
| Overload protection: | No |
| Power measurement: | Yes |
Wi-Fi | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Radio frequency: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30m indoors (depending on the building materials) |
Bluetooth | |
| Protocol: | 4.2 with BLE |
| Radio frequency: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Zigbee | |
| Protocol: | 802.15.4 |
| Repeater: | Yes |
| Radio frequency: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
Matter | |
| Protocol: | Matter over Wi-Fi |
Microcontroller unit | |
| CPU: | ESP-Shelly-C68F |
| Flash memory: | 8MB |
Features | |
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
