Shelly 1 Mini Gen4 Relay Switch
$34.00
Shelly 1 Mini Gen4 brings powerful upgrades to the popular Shelly 1 device. With new multi-protocol connectivity, you can choose the protocol that best suits your home network – Zigbee, Matter or Wi-Fi. An improved processor ensures faster responses and smoother performance of your automations. Shelly 1 Mini Gen4 continues to be the perfect retrofit solution for your lights and appliances, now with enhanced compatibility and speed, all in its usual compact and easy-to-install design. Suitable for loads up to 8A (no dry-contact support).
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
Impossibly small.
Shelly 1PM Mini Gen4.
Gen4.
Experience next-level smart home automation with the new Shelly Gen4.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network.
WI-FI
MATTER
ZIGBEE
BLUETOOTH
Multi-protocol support
Supports Matter
Certified for the new Matter standard – works directly with Apple, Google and Alexa.
Impossibly small
240V switchable
Supports up to 8 A at 240 VAC – perfect for on/off lighting control.
Extremely fast processor
Gen4 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
New.
Shelly Gen4.
Introducing the upgraded version of Shelly’s best selling 1 Series. Now even more powerful, equipped with Shelly’s new chipset and featuring double the memory. Perfect for automating lighting, managing garage doors, and modernising old appliances, Shelly 1 Mini Gen4 is the ideal choice for creating a more efficient, connected smart home or office.
Control.
Easily control from anywhere.
Automate.
Schedule.

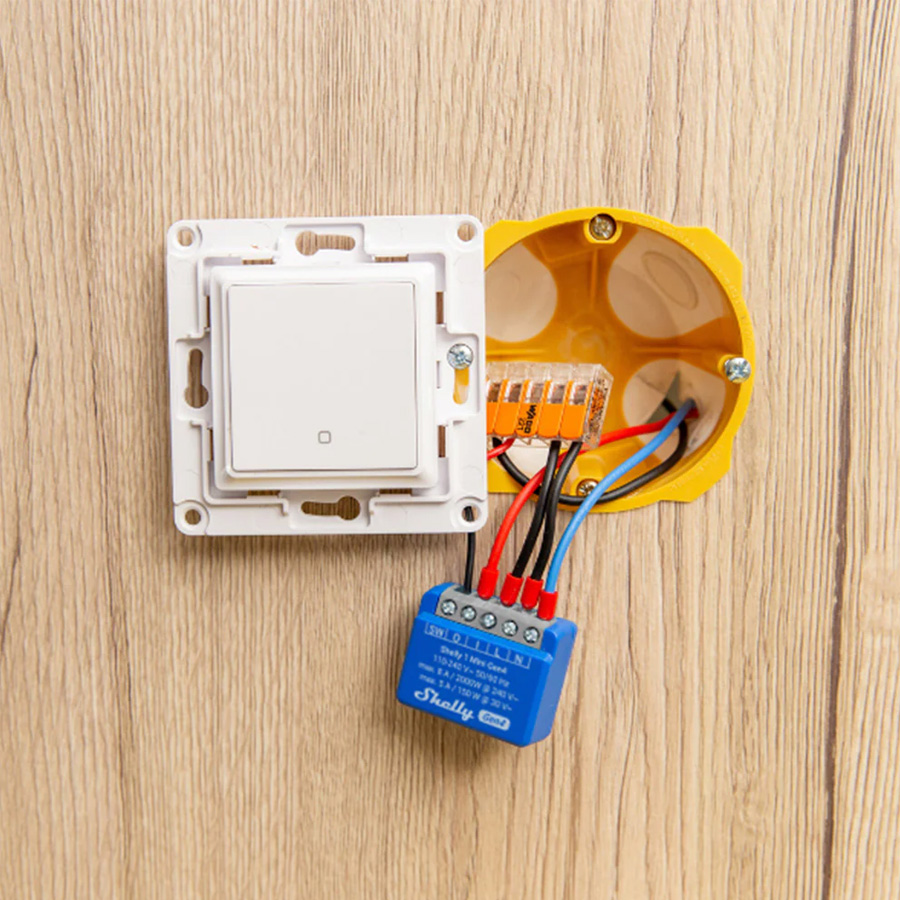

Make any light switch smart with Shelly 1 Mini Gen4 and control them through your phone or with voice assistants. You can even set automated scenes based on time or sunset/sunrise. This way you can set the porch lights to switch on around the time you come home from work, or the lights in your hallway to switch off once it is past your family’s bed time. And don’t worry – light switches can still be used manually.
The finer details
Physical |
|
| Dimensions: | 29 x 34 x 16 ±0.5 mm |
| Weight: | 19 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Environmental |
|
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical |
|
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | None |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 8 A/240 V~ |
| Power consumption: | < 1.2 W |
| Neutral wire: | Required |
Sensors, meters |
|
| Internal-temperature sensor: | Yes |
Special functions |
|
| Dry contacts: | No |
| Roller shutter mode: | No |
| Overheat protection: | Yes |
| Overload protection: | No |
| Power measurement: | No |
Wi-Fi |
|
| Wi-Fi Protocol: | 802.11 b/g/n |
| Radio frequency: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30m indoors (depending on the building materials) |
Bluetooth |
|
| Protocol: | 4.2 with BLE |
| Radio frequency: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Zigbee |
|
| Protocol: | 802.15.4 |
| Repeater: | Yes |
| Radio frequency: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
Matter |
|
| Protocol: | Matter over Wi-Fi |
Microcontroller unit |
|
| CPU: | ESP-Shelly-C68F |
| Flash memory: | 8MB |
Features |
|
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
