Shelly 2PM Gen4 Wi-Fi Double Relay or Motor Controller
$69.00
The Shelly 2PM Gen4 is a 2 channel smart relay (on/off), able to manage loads of up to 10A per channel (16A max combined), with built-in power metering. Alternatively, you can use 2PM Gen 4 to control 240V AC shutter and blind motors. Easy, app-based remote control over standard WiFi (no hub required), the 2PM Gen4 can also connect over Matter or Zigbee to be seamlessly adopted into your pre-existing smart home systems.
In stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
SHELLY 2PM Gen4.
Double on/off or motor controller.
Gen4.
Experience next-level smart home automation with the new Shelly Gen4.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network.
WI-FI
MATTER
ZIGBEE
BLUETOOTH
Multi-protocol support
Highly compatible! Choose the best protocol for your smart home… Zigbee, Matter or Wi-Fi.
Supports Matter
Certified for the new Matter standard – works directly with Apple, Google and Alexa.
Motor Support
Two independent on / off channels or 240V AC motor controller.
Power metering
Shelly 2PM Gen4 provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Gen4 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
New.
Shelly Gen4.
A versatile dual-channel smart switch that lets you automate 2 independent lighting channels or manage roller shutters, curtains, awnings, pool covers, and bi-directional AC motors. With new multi-protocol connectivity, you can choose the protocol that best suits your home network – Wi-Fi, Matter or Zigbee. Shelly 2PM Gen4 includes integrated power monitoring, allowing you to track real-time energy consumption. Optimise energy usage, lower electricity bills, and improve efficiency.
Automate.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly 2PM Gen4 will allow you to automate your lights or curtains and blinds on a schedule or when certain conditions around your home are met (e.g. smart sensors are triggered).
Monitor.
You can now monitor and analyse the power consumption of your electrical appliances and lighting. Shelly 2PM Gen4 has an integrated precise power meter that allow you to measure the power consumption and features free data storage for analysis. Help save the environment and save money.
Control.
From anywhere in the World.

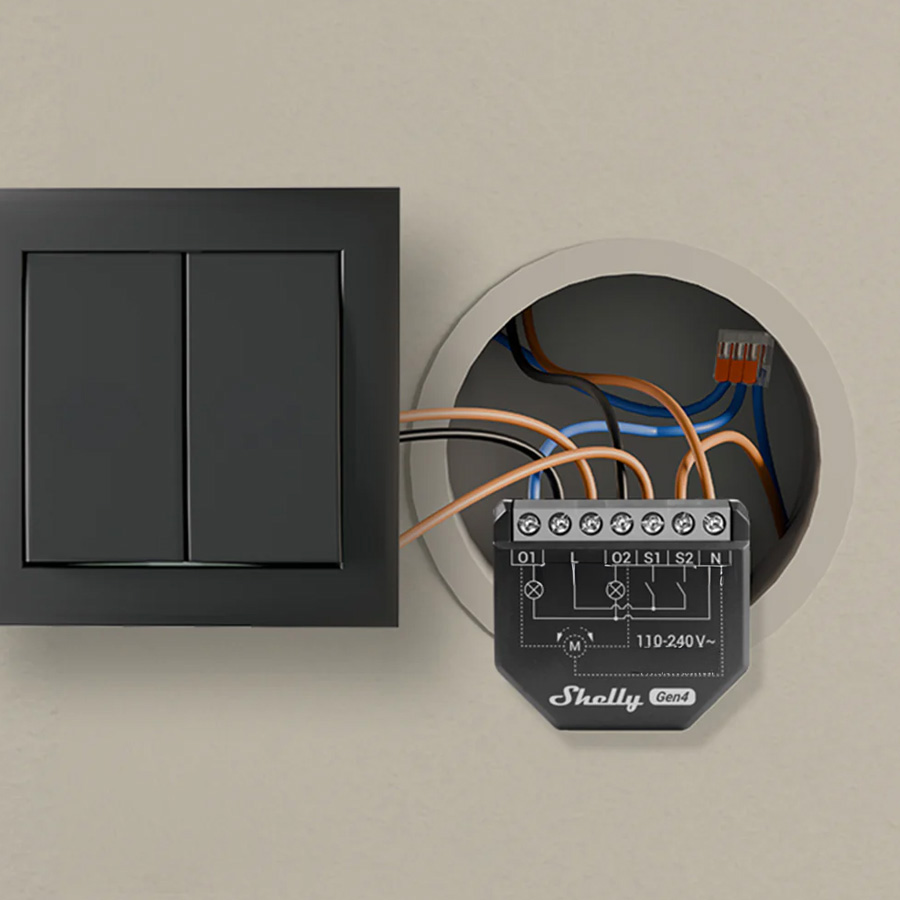

With Shelly 2PM Gen4 you can automate lighting or motorised curtains, blinds and awnings in your home and control them remotely.
The finer details
Physical |
|
| Dimensions: | 37mm x 42mm x 16mm |
| Weight: | 30 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Environmental |
|
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical |
|
| Power supply AC: | 110 - 240 V |
| Power supply DC: | NA |
| Max. switching voltage: | 240V AC |
| Max. switching current: | AC: 10 A (per channel), 16 A (total), 18 A (total peak) |
| Power consumption: | < 1.4 W |
| Neutral wire: | Required |
Sensors, meters |
|
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
Special functions |
|
| Dry contacts: | No |
| Roller shutter mode: | Yes |
| Overheat protection: | Yes |
| Overload protection: | No |
| Power measurement: | Yes |
Wi-Fi |
|
| Wi-Fi Protocol: | 802.11 b/g/n |
| Radio frequency: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30m indoors (depending on the building materials) |
Bluetooth |
|
| Protocol: | 4.2 with BLE |
| Radio frequency: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Zigbee |
|
| Protocol: | 802.15.4 |
| Repeater: | Yes |
| Radio frequency: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
Matter |
|
| Protocol: | Matter over Wi-Fi |
Microcontroller unit |
|
| CPU: | ESP-Shelly-C68F |
| Flash memory: | 8MB |
Features |
|
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
