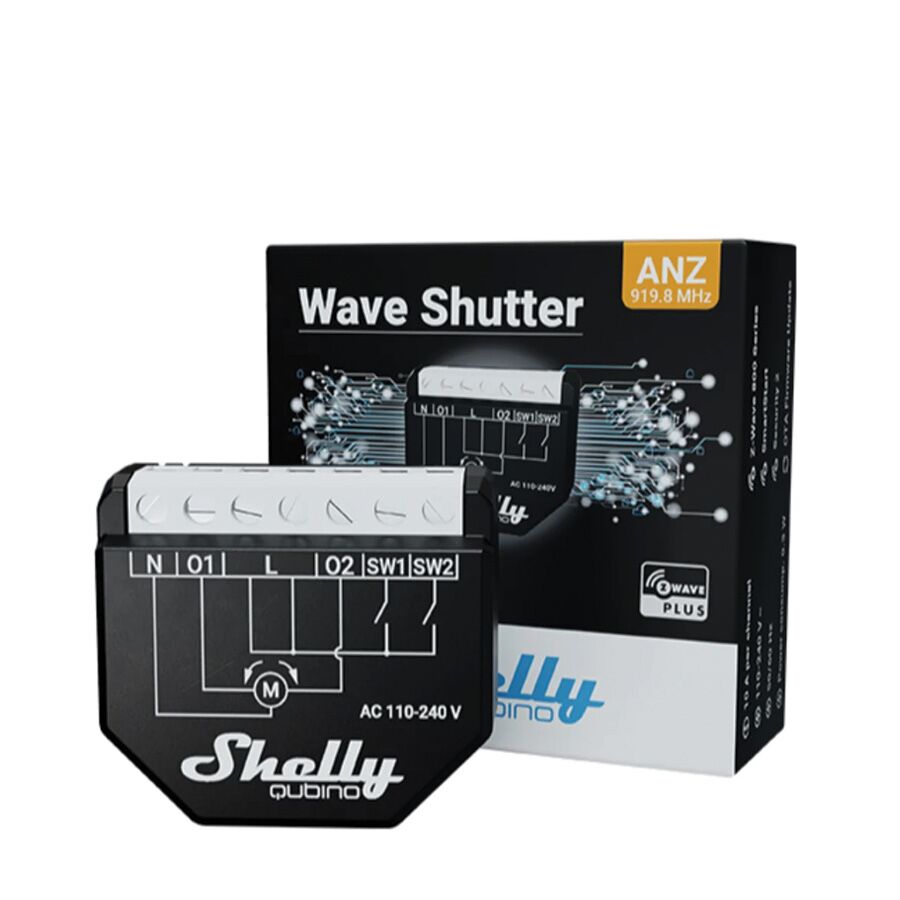

Shelly Qubino Z-Wave Shutter / Motor Controller
Original price was: $69.00.$52.00Current price is: $52.00.
Automate, monitor power consumption and precisely control the position of roller shutters, blinds, windows, awnings, pool covers and other devices powered by bi-directional motors – from anywhere in the World via your Z-Wave system.
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
Up / Down.
Open / Close.
Automate* and remotely control the position of roller shutters, blinds, windows, awnings, pool covers and other devices powered by bi-directional 240V AC motors.
Z-Wave operated
Compatible with all certified Z-Wave gateways and features the latest 800 series chipset.
Extended wireless range
Bulletproof security
S2 (Security 2) AES 128 encryption for the ultimate in security of your Z-Wave network.
Easy setup
High reliability
Associations
Power monitoring
Z-Wave.
Works with any Z-Wave gateway or software.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways, using the latest Z-Wave 800 Series chipset.
Shelly Wave 1 is retrofit-able and designed to fit behind any switch or socket, instantly transforming it into a smart one. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances and lighting from anywhere using your smartphone or tablet.
Aeotec Smart Home Hub
Home Assistant Green
Homey Bridge
Homey Pro (2023)
Aeotec Z-Wave USB Z-Stick 7
Fibaro Z-Wave Home Center 3 Lite
Fibaro Z-Wave Home Center 3
Schedule.
Control.
Open or close your blinds via your Z-Wave hub’s app, voice control, Z-Wave remote control or manually from the wall switch… the choice is yours.
Automate.
Secure.
Enhance your home’s safety by integrating Wave Shutter with other devices to establish a “Vacation Scene.” When you’re away, your window coverings will adjust automatically at pre-determined times daily, and both indoor and outdoor lights will randomly illuminate every evening. This will give the impression that someone is at home, deterring potential intruders. Secure peace of mind along with your property, even when you’re miles away.
The finer details
| Power supply: | 110–240 V AC ±10% |
| Power consumption: | < 0.3 W |
| Power measurement [W]: | Yes |
| Max switching voltage AC: | 240 V |
| Max switching current AC: | 10 A per channel |
| Overheating protection: | Yes |
| Overcurrent protection: | Yes |
| Distance: | up to 40 m indoors (131 ft.)(depends on local condition) |
| Z-Wave repeater:: | Yes |
| CPU: | Z-Wave S800 |
| Z-Wave frequencies band(s): | 919,8 MHz (Australia & New Zealand) |
| Max. radio frequency power: | < 25 mW |
| Size (H x W x D): | 37 mm x 42 mm x 16 mm ± 0.5 mm / 1.46 in x 1.65 in x 0.63 in ± 0.02 in |
| Weight: | 29 g / 1.02 oz. |
| Mounting: | Wall console |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm? / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Black |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft. |
