On. Off.
With power monitoring.
Automation* of your lights, water heater, bathroom fan, any old electrical appliance up to 16A… virtually anything that turns on or off!
Z-Wave operated
Compatible with all certified Z-Wave gateways and features the latest 800 series chipset.
Extended wireless range
Bulletproof security
S2 (Security 2) AES 128 encryption for the ultimate in security of your Z-Wave network.
Easy setup
High reliability
Associations
Power monitoring
Measure in real-time and log the power consumption of the connected load.
Z-Wave.
Works with any Z-Wave gateway or software.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways, using the latest Z-Wave 800 Series chipset.

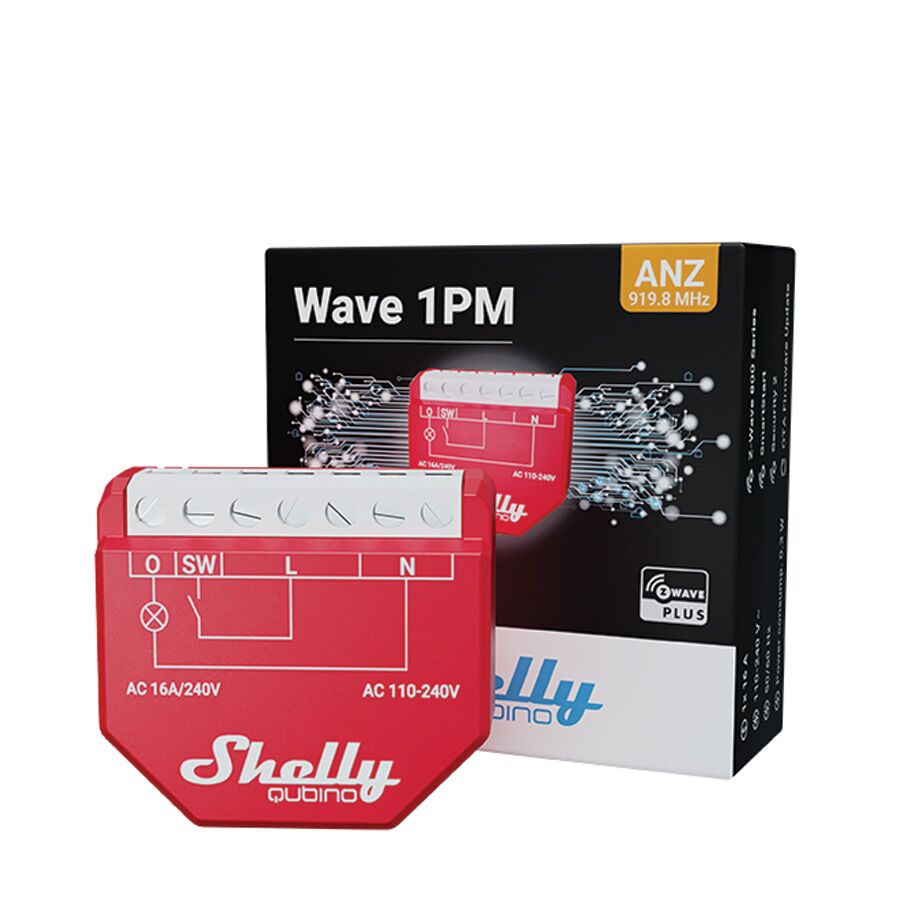

Shelly Wave 1PM is retrofit-able and designed to fit behind any switch or socket, instantly transforming it into a smart one. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances and lighting from anywhere using your smartphone or tablet.
Home Assistant Green
Aeotec Smart Home Hub
Aeotec Z-Wave USB Z-Stick 7
Homey Bridge
Homey Pro (2023)
Fibaro Z-Wave Home Center 3 Lite
Fibaro Z-Wave Home Center 3
Schedule.
Make any light switch smart with Shelly Wave 1PM and control them from your phone or with a voice assistant. Use your Z-Wave hub’s app to set automated scenes based on an hour or sunset/sunrise. This way you can set the lights on the porch to switch on around the time you come home from work, or the lights in your hallway to switch off once it is past your family’s bed hour. And don’t worry – light switches can still be used manually to control your lights.
Control.
From anywhere in the World.
Easily automate and remotely control a wide range of appliances in your home, including water heaters, heating devices, lights, and many more! Imagine coming home to the perfect temperature remotely turning on your heater when you leave the office. You can also turn on your electric hot water heater remotely, ensuring your have hot water after a long day. Enjoy the convenience, energy efficiency, and tailored control that Wave 1PM brings to your everyday life.
Automate.
Comfort, security and convenience.
Monitor.
Track your power consumption.
The finer details
| Power supply: | 110-240 V AC, 50/60 Hz |
| Power consumption: | < 0.3 W |
| Power measurement (W): | Yes |
| Max. switching voltage AC: | 240 V |
| Max. switching current AC: | 16 A |
| Overheating protection: | Yes |
| Overload protection: | Yes |
| Distance: | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU: | Z-Wave S800 |
| Z-Wave frequency bands: | 919.8 MHz (Australia & New Zealand) |
| Max. radio frequency power: | < 25 mW |
| Size (H x W x D): | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight: | 27 g / 0.95 oz. |
| Mounting: | Wall console |
| Screw terminals max. Torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm? / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Red |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft. |
