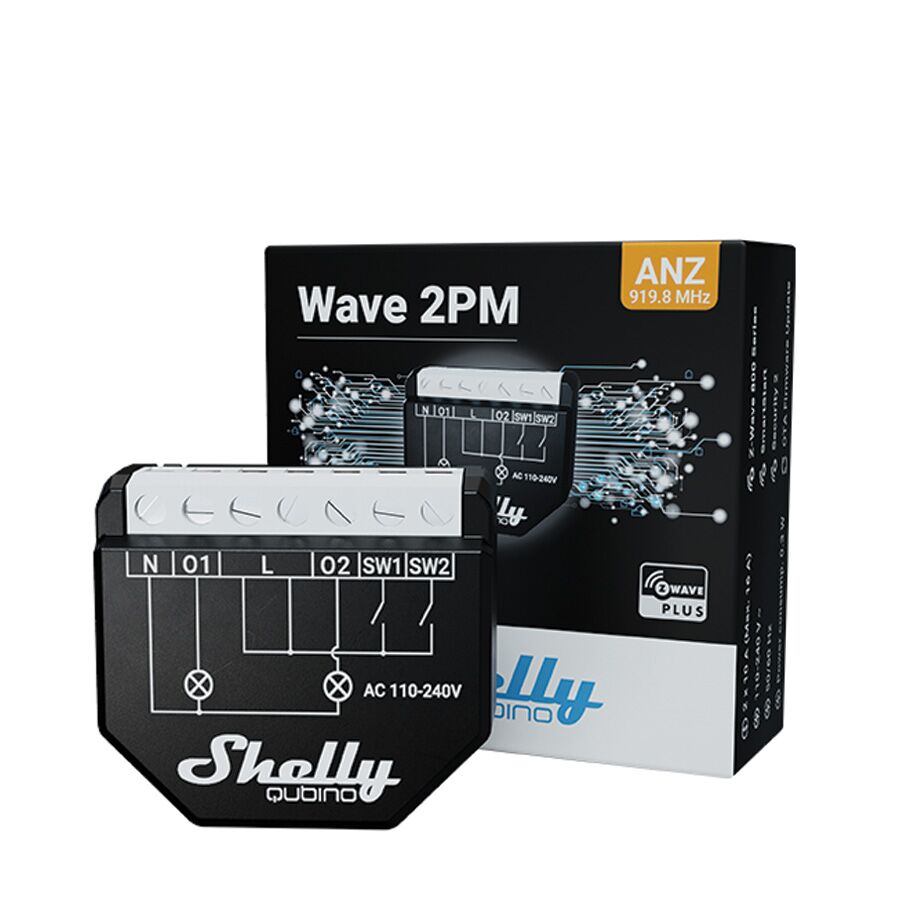

Shelly Qubino Z-Wave 2PM Double Relay Switch
Original price was: $69.00.$52.00Current price is: $52.00.
Control and monitor power consumption for 2 separate, independent loads… including lighting, water heaters, power sockets, etc – from anywhere in the World via your Z-Wave system. Suitable for lighting and electrical appliances up to 10A each (16A max combined).
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
2 x On / Off.
With power monitoring.
Z-Wave operated
Compatible with all certified Z-Wave gateways and features the latest 800 series chipset.
Extended wireless range
Bulletproof security
S2 (Security 2) AES 128 encryption for the ultimate in security of your Z-Wave network.
Easy setup
High reliability
Associations
Power monitoring
Measure in real-time and log the power consumption of the connected loads.
Z-Wave.
Works with any Z-Wave gateway or software.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways, using the latest Z-Wave 800 Series chipset.
Shelly Wave 1PM is retrofit-able and designed to fit behind any switch or socket, instantly transforming it into a smart one. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances and lighting from anywhere using your smartphone or tablet.
Aeotec Smart Home Hub
Home Assistant Green
Homey Bridge
Homey Pro (2023)
Aeotec Z-Wave USB Z-Stick 7
Fibaro Z-Wave Home Center 3 Lite
Fibaro Z-Wave Home Center 3
Control.
Wave 2PM allows you to remotely control two lights or other electrical appliances and monitor their energy usage via your Z-Wave hub or software. Use the manual wall switch, smart home app, home automation software or voice control. Easy, convenient and energy-efficient!
Monitor.
Track your power consumption.
With Wave 2PM’s integrated precise power metering, you can track and control the consumption of your electrical appliances and lighting, making it simple to save on your electricity bills. Optimise energy usage without sacrificing comfort!
Automate.
Enhance the energy efficiency of your home and simplify your daily life. Set your lights to turn on every morning at sunrise or at sunset, but only if the house is occupied. This way, your home can automatically follow your daily routine and create an atmosphere that suits your lifestyle.
The finer details
| Power supply: | 110-240 V AC, 50/60 Hz |
| Power consumption: | < 0.3 W |
| Power measurement (W): | Yes |
| Max switching voltage AC: | 240 V |
| Max switching current AC: | 10 A per channel, 16 A total, 18 A total peak |
| Overheating protection: | Yes |
| Overload protection: | Yes |
| Distance: | up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU: | Z-Wave S800 |
| Z-Wave frequency bands: | 919,8 MHz (Australia & New Zealand) |
| Max. radio frequency power: | < 25 mW |
| Size (H x W x D): | 37 x 42 x 16 ± 0.5 mm / 1.46 x 1.65 x 0.63 ± 0.02 in |
| Mounting: | Wall console |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Black |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft. |
Product Questions & Answers
- Does this need a neutral wire at the switch?
- Q Does this need a neutral wire at the switch?A
Yes.
