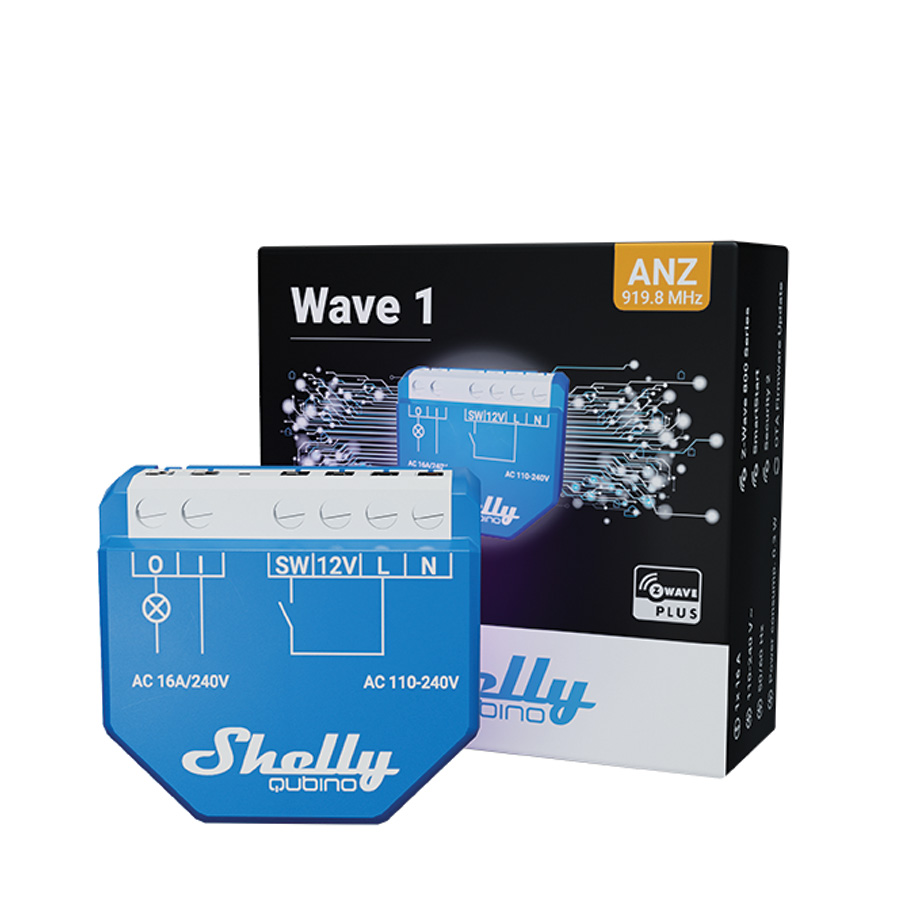

Shelly Qubino Z-Wave 1 Relay Switch
Original price was: $59.00.$44.00Current price is: $44.00.
Control a wide range of powered devices and lighting, including electric door strikes, gates, garage doors, irrigation systems, LED strips, lights and power sockets – from anywhere in the World via your Z-Wave system. The output contact is voltage-free (dry contact), allowing you to connect and mix various power supply and load… DC (up to 30V) and up to 16A, 240V AC loads.
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
On. Off.
Z-Wave 800 Series.
Automation* of your lights, garage door, irrigation system, bathroom fan, any old electrical appliance… virtually anything that turns on or off!
Z-Wave operated
Compatible with all certified Z-Wave gateways and features the latest 800 series chipset.
Extended wireless range
Bulletproof security
S2 (Security 2) AES 128 encryption for the ultimate in security of your Z-Wave network.
Easy setup
High reliability
Associations
Dry contacts
Z-Wave.
Works with any Z-Wave gateway or software.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways, using the latest Z-Wave 800 Series chipset.

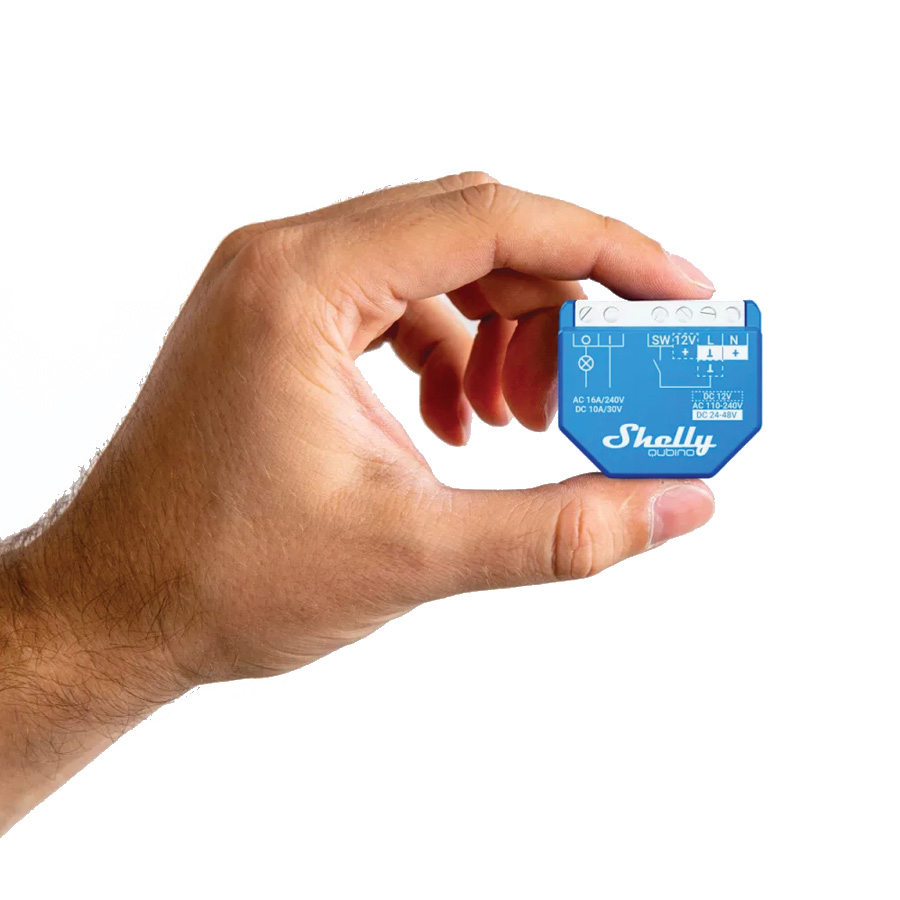

Shelly Wave 1 is retrofit-able and designed to fit behind any switch or socket, instantly transforming it into a smart one. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances and lighting from anywhere using your smartphone or tablet.
Aeotec Smart Home Hub
Home Assistant Green
Homey Bridge
Homey Pro (2023)

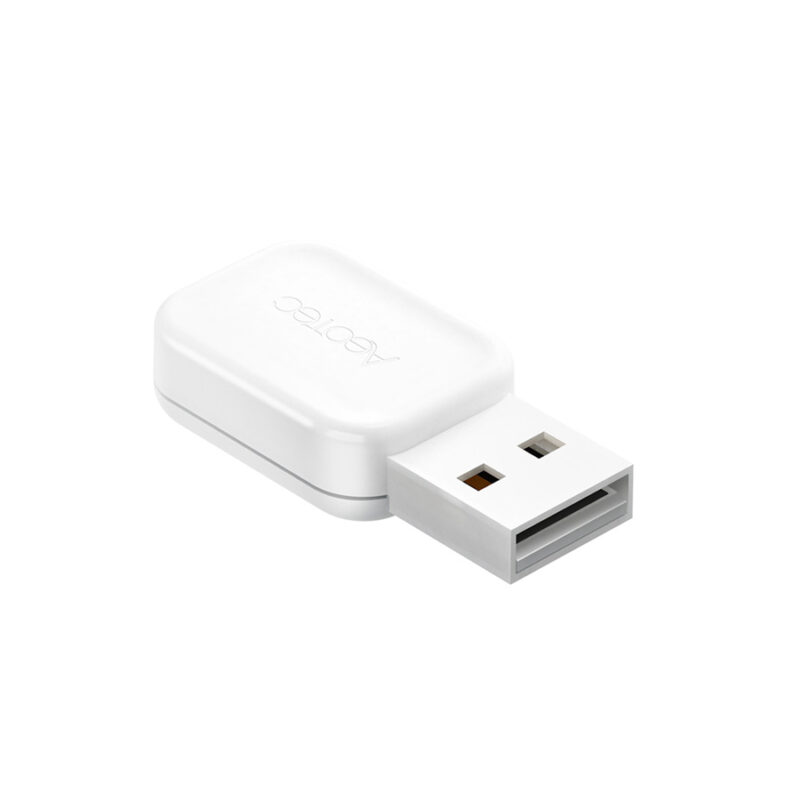

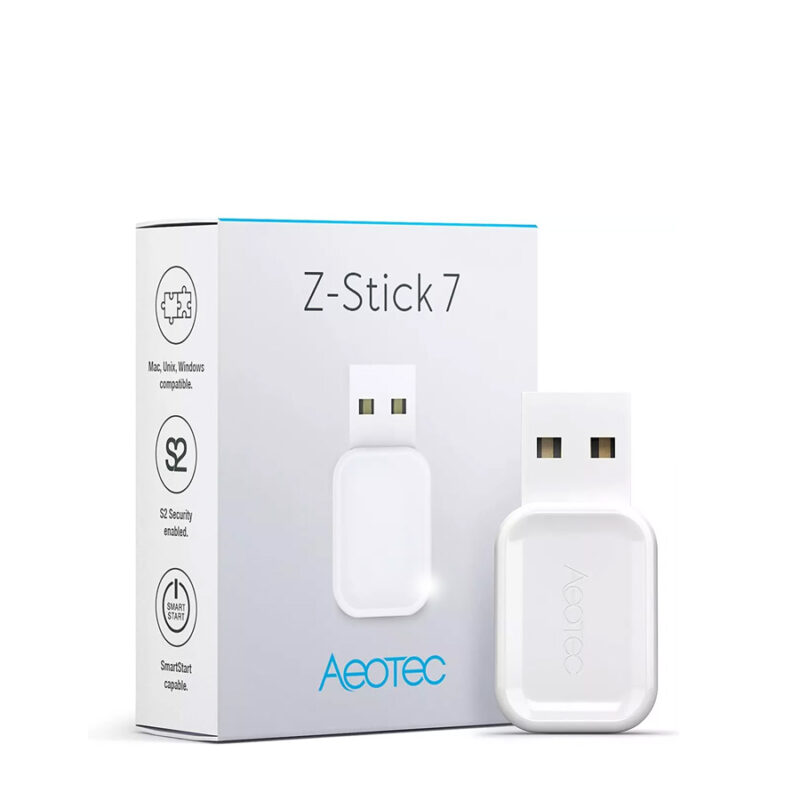

Aeotec Z-Wave USB Z-Stick 7
Fibaro Z-Wave Home Center 3 Lite
Fibaro Z-Wave Home Center 3
Schedule.
Control.
Easily automate your garage door and control it no matter where you are! Shelly Wave 1 has operational voltages of 12V DC and 24-30V DC, which makes it perfect for garage door control – or any other “dry-contact” application.
Automate.
Having a beautiful garden is not an easy task, especially when you have tons of other responsibilities during the day. Using Shelly Wave 1 and your Z-Wave hub or software, you can automate your irrigation system to follow the weather conditions and water your garden only when it is sunny, skipping the rainy days.
The finer details
| Power supply: | 110 - 240 V AC, 50/60 Hz |
| Power consumption: | < 0.3 W |
| Max. switching voltage AC: | 240 V |
| Max. switching current AC: | 16 A |
| Overheating protection: | Yes |
| Distance: | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Waveâ„¢ repeater: | Yes |
| CPU | Z-Waveâ„¢ S800 |
| Z-Waveâ„¢ frequency bands: | 919.8 MHz (Australia & New Zealand) |
| Max. radio frequency power: | < 25 mW |
| Size (H x W x D): | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight: | 26 g / 0.92 oz. |
| Mounting: | Wall console |
| Screw terminals max. torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Blue |
| Ambient temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft. |
