Grandstream 2.5 GigE PoE Injector
Price range: $35.00 through $42.00
Grandstream Unmanaged PoE Network Switches
Price range: $60.00 through $205.00
The Grandstream GWN7700P / GWN7701P / GWN7702P series are plug-and-play Gigabit PoE “unmanaged” switches designed to make it easy to power and connect network devices in both homes and commercial sites. Ideal for powering Wi-Fi access points, IP phones, IP cameras and other PoE devices, these switches deliver data and optional power over a single Ethernet cable. With simple setup, reliable performance and PoE support for growing networks, the GWN770xP range is a great fit for smart homes, home offices, retail, workshops and small business networks.
FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
Grandstream

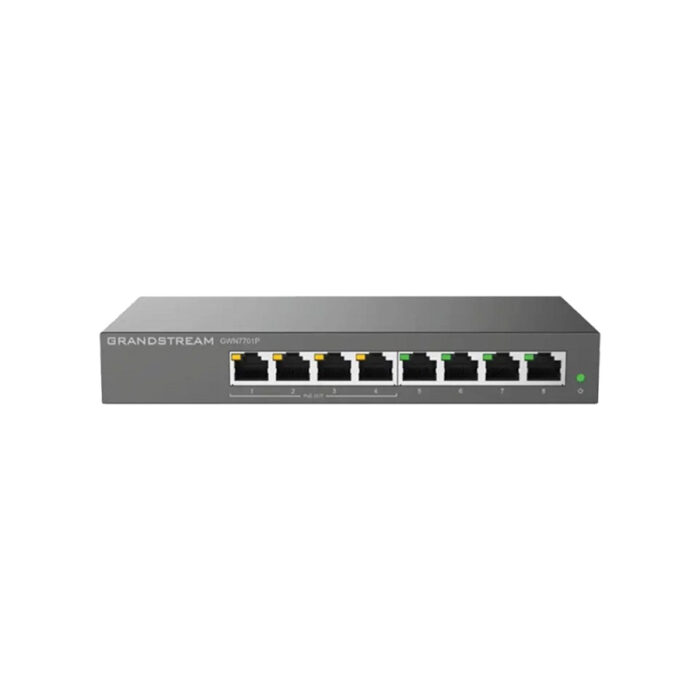

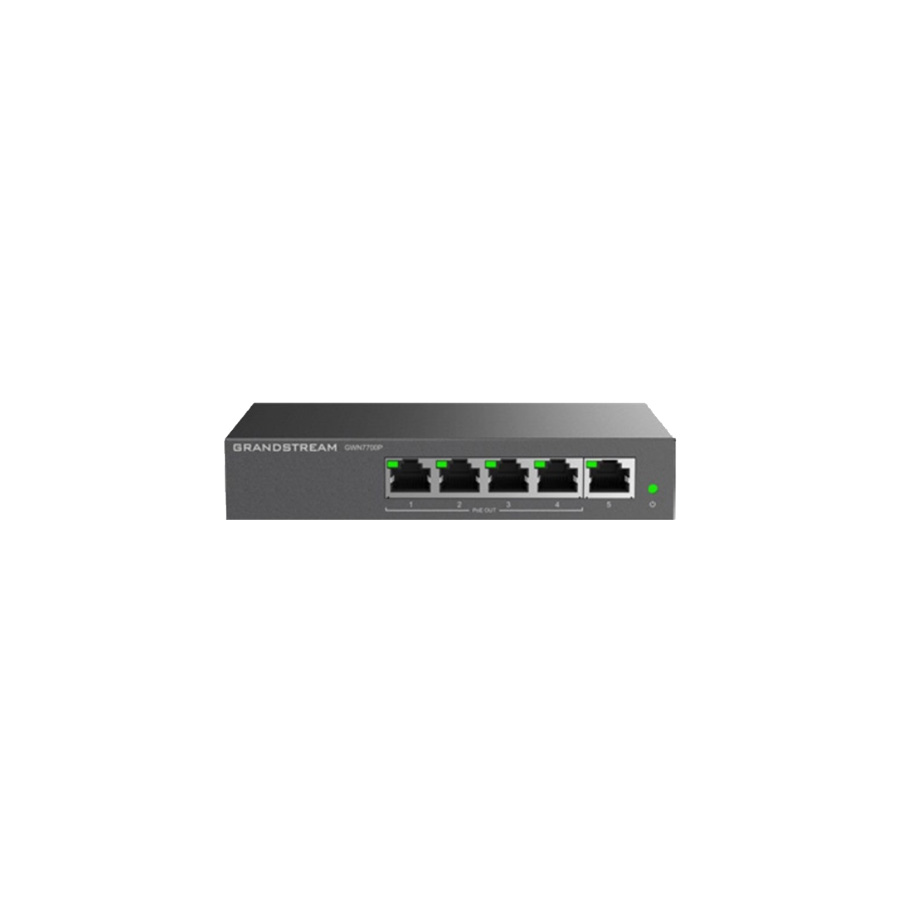

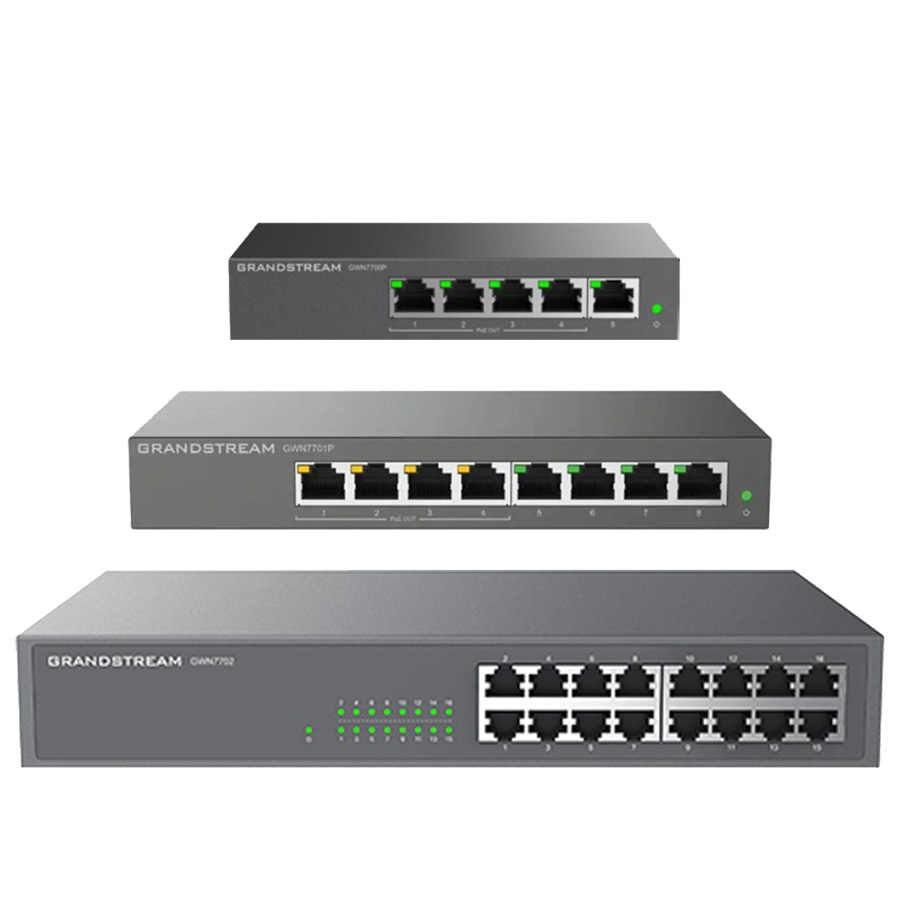

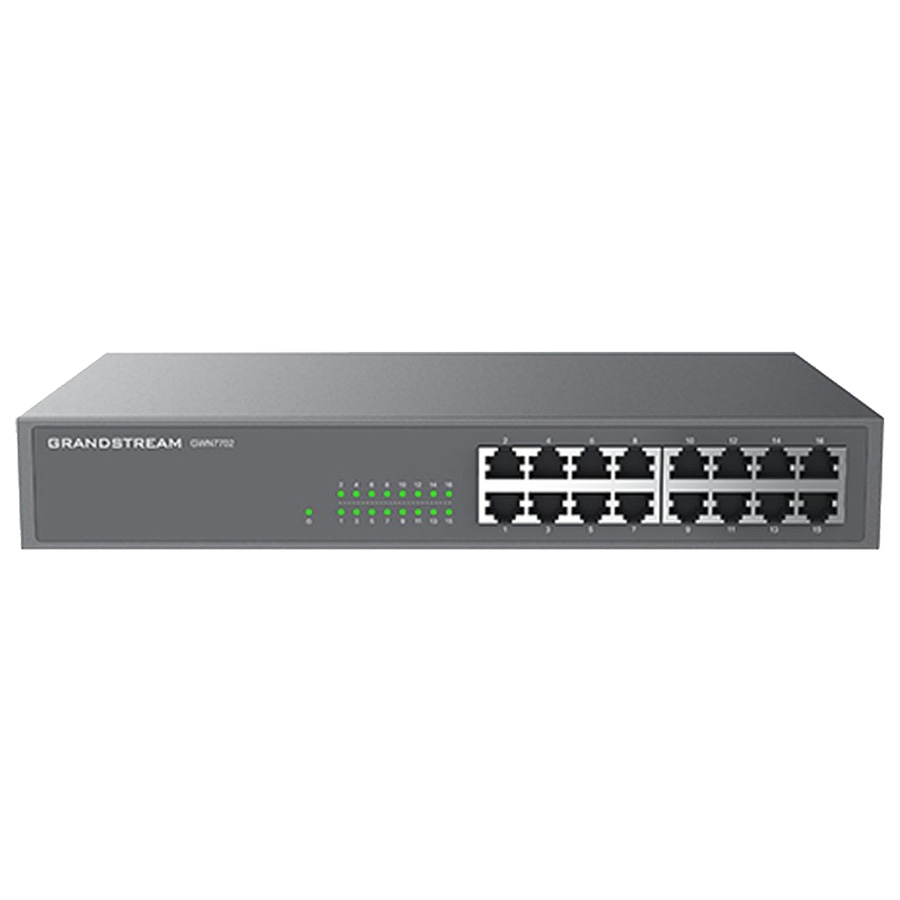

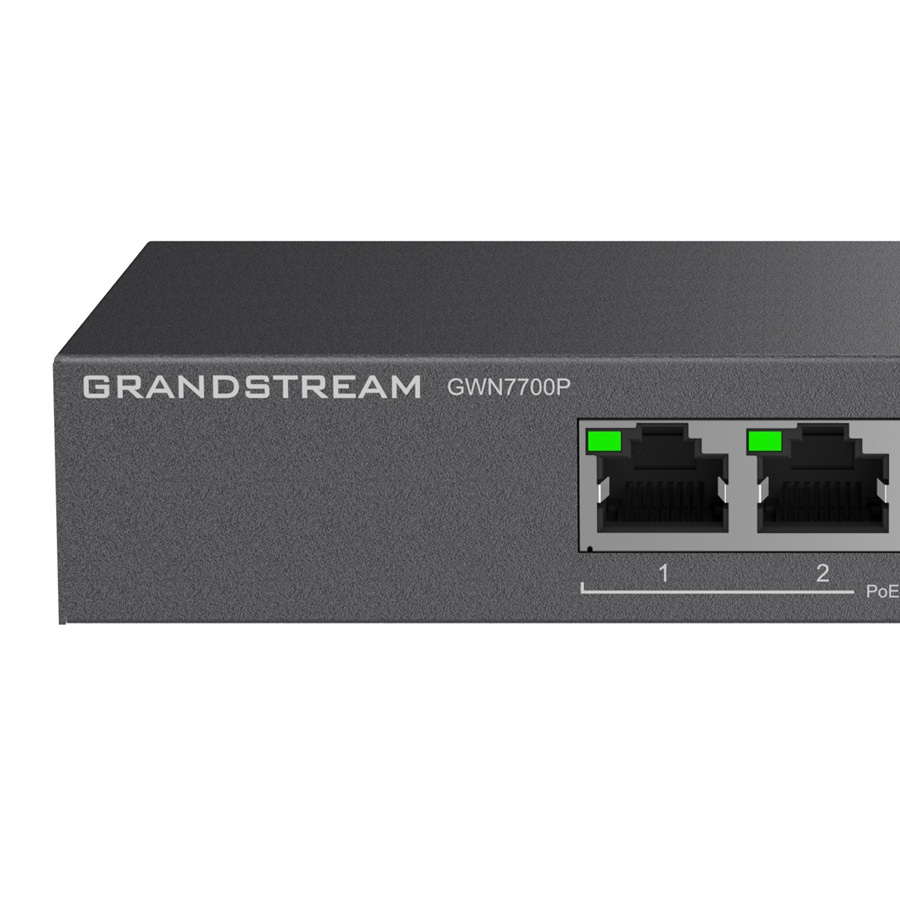

770X Series Unmanaged POE Network Switches
- 5/8/16 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7702P)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
Gigabit
5/8/16 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ (GWN7702P)
Low power consumption
Green technology reduces operating power consumption.
LED indicators
Per port: Link/Activity – Per device: Power
Auto crossover
Auto MDI/MDIX crossover for all ports.
PoE
802.3 af/at compliant up to 30W on each port.
Storm Control
Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels.
QoS support
QoS – Supports Default Strict Priority when present.
Support long cables
Supports long cable connections.
Unmanaged network switches.
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity
to home offices and small-to-medium sized businesses.
Plug and Play.
Grandstream unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
The finer details
| Specification | GWN7700P | GWN7701P | GWN7702P |
|---|---|---|---|
| Gigabit Ports | 5 | 8 | 16 |
| PoE Ports | 4 | 4 | 8 |
| Enclosure | Metal | Metal | Metal |
| Mounting | Desktop / Wall-Mount | Desktop / Wall-Mount | Desktop / Rack-Mount |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| PoE Standards | IEEE 802.3af, IEEE 802.3at | IEEE 802.3af, IEEE 802.3at | IEEE 802.3af, IEEE 802.3at |
| Port Feature | 5× 10/100/1000Mbps RJ45; AUTO Negotiation; AUTO MDI/MDIX | 8× 10/100/1000Mbps RJ45; AUTO Negotiation; AUTO MDI/MDIX | 16× 10/100/1000Mbps RJ45; AUTO Negotiation; AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration |
1–4 Ports 802.3af/at compliant; Up to 30W each port, total 60W budget; Overload cuts off lowest-priority port; Priority: Port 4 → Port 1 |
1–4 Ports 802.3af/at compliant; Up to 30W each port, total 60W budget; Overload cuts off lowest-priority port; Priority: Port 4 → Port 1 |
1–8 Ports 802.3af/at compliant; Up to 30W each port, total 138W budget; Overload cuts off lowest-priority port; Priority: Port 1 → Port 8 |
| LED Indicators | Per port: Link/Activity (Green); Per device: Power (Green) | Per port: Link/Activity (Green); Per device: Power (Green) | Per port: Link/Activity (Green); Per port: PoE output (Yellow); Per device: Power (Green) |
| MAC Address Table | 2K | 8K | 8K |
| Switching Capacity | 10Gbps | 16Gbps | 32Gbps |
| Jumbo Frame | 9KB | 9KB | 10KB |
| Advanced Features |
MAC Auto-Learning/Auto-Aging; IEEE 802.3x Flow Control; 802.1p/DSCP QoS; IGMP (Fast-Leave, Snoop, Route Port Autolearn, Query Refresh Member Port) |
MAC Auto-Learning/Auto-Aging; IEEE 802.3x Flow Control; 802.1p/DSCP QoS; Unlink clear FDB; IGMP (Fast-Leave, Snoop, Route Port Autolearn, Query Refresh Member Port) |
MAC Auto-Learning/Auto-Aging; IEEE 802.3x Flow Control; Half-duplex backpressure |
| Power Adapter | External 48–53.5VDC / 1.22A | External 48–53.5VDC / 1.22A | Internal 100–240V AC, 50/60Hz, 150W |
| Max Power Consumption (Base System) | 2W (excluding PoE output power) | 3W (excluding PoE output power) | 10.1W @ 220V/50Hz (excluding PoE output power) |
| Environmental |
Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F) Operating Humidity: 10% to 90% (Non-condensing) Storage Humidity: 10% to 90% (Non-condensing) |
Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F) Operating Humidity: 10% to 90% (Non-condensing) Storage Humidity: 10% to 90% (Non-condensing) |
Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F) Operating Humidity: 10% to 90% (Non-condensing) Storage Humidity: 10% to 90% (Non-condensing) |
| Dimensions (L × W × H) | Unit: 145 × 80 × 27mm; Package: 230 × 190 × 51mm | Unit: 190 × 100 × 28mm; Package: 230 × 210 × 51mm | Unit: 280 × 180 × 44mm; Package: 366 × 211 × 53mm |
| Weight | Unit: 0.26kg; Entire Package: 0.75kg | Unit: 0.44kg; Entire Package: 0.92kg | Unit: 1.58kg; Entire Package: 2.18kg |
| Package Contents | 1× Switch, 1× Power Adapter, 1× QIG | 1× Switch, 1× Power Adapter, 1× QIG | 1× Switch, 1× 1.2m AC Cable, Rack-mounting Standard Brackets, 4× Rubber Feet, 1× QIG |
| Compliance | FCC, CE, RCM, IC, UKCA | FCC, CE, RCM, IC, UKCA | FCC, CE, RCM, IC, UKCA |
