Shelly 1PM Gen3 Wi-Fi Relay Switch Original price was: $34.00.$27.20Current price is: $27.20.

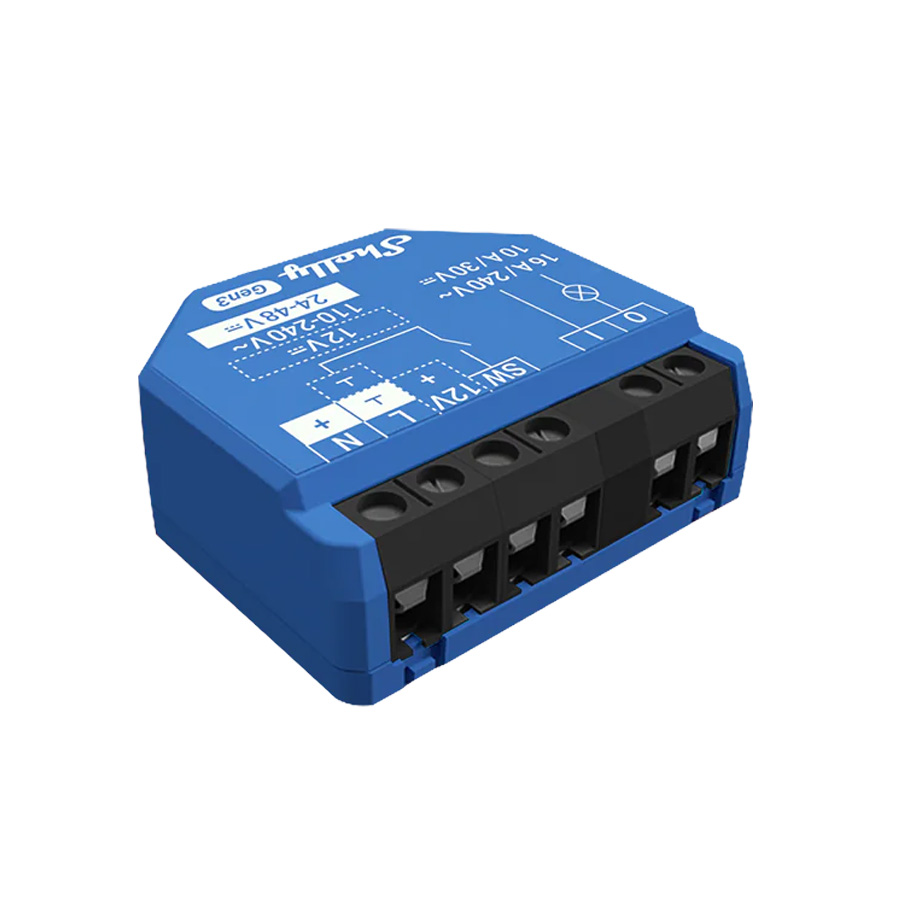

Shelly 1 Gen3 Wi-Fi Relay Switch
Original price was: $30.00.$24.00Current price is: $24.00.
NEW. Introducing the latest Gen3 version of Shelly’s most popular Wi-Fi module. Automation of lights, garage door, irrigation solenoids, bathroom fan or any old electrical appliances… virtually anything that turns on or off! Shelly 1 Gen3 has numerous applications providing enhanced smart home control. Small enough to fit behind a wall switch or wall socket, Shelly 1 Gen3 is retrofittable and can be easily installed by a licensed electrician (or DIY for low-voltage) in less than 10 minutes. Connect Shelly 1 Gen3 directly to your Wi-Fi network (no HUB required) – or include it in your hub of choice (including Home Assistant).
In stock
Found this product at a lower price?EASTER SALE
20% OFF SHELLY
(Excludes Shelly Gen4 and Z-Wave devices. Prices as marked – Ends Midnight EASTER Monday AEST – 21/05/25 – Or until sold out – No rainchecks)
FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description
On. Off.
Simple.
Automation of your lights, garage door, irrigation system, bathroom fan, any old electrical appliance… virtually anything that turns on or off!
Wi-Fi operated
Connect Shelly 1 Gen3 directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App.
Low voltage support
Shelly 1 Gen3 can be powered by 110-240 VAC, 24-48 VDC, or 12VDC.
Dry contacts
Use a wide range of output voltage levels. Supports low voltages.
Extremely fast processor
Gen3 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
Broad range of cloud connections and local integrations with much lower integration cost.
Shelly Gen3.
More memory. More power.
The Gen3 series ensures the quality and reliability of Shelly devices by using their own proprietary, powerful Shelly chipset. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Virtual components.
The Shelly Gen3 Series introduces “virtual components”. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the road to Matter.
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
New.
Perfectly upgraded.
Introducing the upgraded version of Shelly’s best selling 1 Plus. Now even more powerful, equipped with Shelly’s new chipset and featuring double the memory. Perfect for automating lighting, managing garage doors, and modernising old appliances, Shelly 1 Gen3 is the ideal choice for creating a more efficient, connected smart home or office.
Control.
Easily control the garage door from anywhere.
Easily automate your garage door and control it no matter where you are! Shelly 1 Gen3 has operational voltages of 12V DC and 24-48V DC, which makes it perfect for garage door control – or any other “dry-contact” application.
Automate.
Automate your irrigation system based on the weather.
Having a beautiful garden is not an easy task, especially when you have tons of other responsibilities during the day. Thanks to scripting functionalities, you can automate your irrigation system to follow the weather conditions and water your garden only when it is sunny, skipping the rainy days.
Schedule.
Automate the lights and make them follow your schedule.
Make any light switch smart with Shelly 1 Gen3 and control them through your phone or with voice assistants. Use the Shelly App to set automated scenes based on hour or sunset/sunrise. This way you can set the porch lights to switch on around the time you come home from work, or the lights in your hallway to switch off once it is past your family’s bed time. And don’t worry – light switches can still be used manually.
App Control.
With the best cloud service in the World, user-friendly interface, scenes, bulk control and much more… the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.
Voice control.
Shelly devices are fully compatible with Amazon Alexa and Google Home.
“Hey Google, turn off the bedroom light.”
“Alexa, open the garage door.”
Flexible control.
Shelly Wi-Fi devices can work without a hub… but they are also compatible with…
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Physical | |
| Dimensions: | 37mm x 42mm x 16mm |
| Weight: | 26 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Environmental | |
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical | |
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | 24 – 48V / 12V stabilised |
| Max. switching voltage: | 240 V~ / 30 V⎓ |
| Max. switching current: | 16 A/240 V~ / 10 A/30 V⎓ |
| Power consumption: | < 1.2 W |
| Neutral wire: | Required |
Sensors, meters | |
| Internal-temperature sensor: | Yes |
Special functions | |
| Dry contacts: | Yes |
| Roller shutter mode: | No |
| Overheat protection: | Yes |
| Overload protection: | No |
| Power measurement: | No |
Connectivity | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2401 – 2483 MHz |
| Wi-Fi Max. RF power: | < 20 dBm |
| Wi-Fi range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes (4.2 with BLE) |
| Bluetooth radio frequency: | 2400 - 2483.5 MHz |
| Bluetooth Max. RF power: | < 4 dBm |
| Bluetooth range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit | |
| CPU: | ESP-Shelly-C38F |
| Flash memory: | 8MB |
Features | |
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
