Shelly 1PM Gen3 Wi-Fi Relay Switch
Click to enlarge
Shelly 1PM Gen3 Wi-Fi Relay Switch
Shelly 1 Gen3 Wi-Fi Relay Switch
Shelly 1 Gen3 Wi-Fi Relay Switch Original price was: $30.00.Current price is: $24.00.
Back to products
Shelly 2PM Gen3 Wi-Fi Double Relay and Motor Controller
Shelly 2PM Gen3 Wi-Fi Double Relay and Motor Controller Original price was: $51.00.Current price is: $40.80.
Shelly

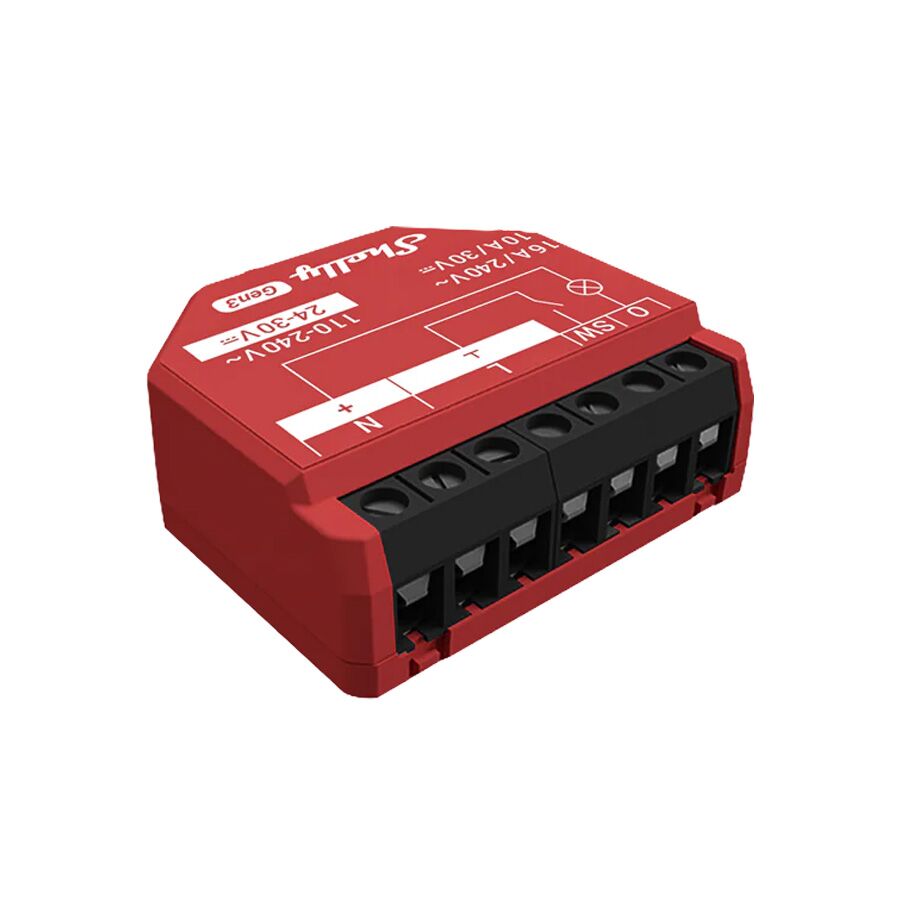

Shelly 1PM Gen3 Wi-Fi Relay Switch

SKU: SHELLY-1PM-GEN3 Category:

Original price was: $34.00.Current price is: $27.20.

NEW. Introducing the latest Gen3 version of one of Shelly’s most popular Wi-Fi modules. Automation and monitoring of power consumption for lights or electrical appliances… virtually anything that turns on or off! Small enough to fit behind a wall switch or wall socket, Shelly 1PM Gen3 is retrofittable and can be easily installed by a licensed electrician. Connect Shelly 1PM Gen3 directly to your Wi-Fi network (no HUB required) – or include it in your hub of choice (including Home Assistant).

In stock

Free 12 Month Extended Warranty included: 2 Years

Purchase now and earn 27 Reward Points.
x
Found this product at a lower price?
Add to compare
Add to wishlist

EASTER SALE

20% OFF SHELLY

(Excludes Shelly Gen4 and Z-Wave devices. Prices as marked – Ends Midnight EASTER Monday AEST – 21/05/25 – Or until sold out – No rainchecks)

FREE EXTENDED WARRANTY
SmartHome includes an additional 12 Month Extended Warranty on all products. Find out more.
SMARTHOME REWARD POINTS
We reward our valued customers by providing Reward Points on every purchase. Find out more.
FAST DELIVERY - FREE OVER $199
Only $10 shipping within Australia (free over $199). Great rates to New Zealand. Find out more.
Description

On. Off.

With power metering.
shelly-1pm-gen3-wi-fi-relay-switch-head

The Shelly 1PM Gen3 (with power monitoring) is the upgraded version of the popular Shelly 1PM Plus.

Wi-Fi operated

Connect Shelly 1PM Gen3 directly to your Wi-Fi network. No Smart Hub required.

Bluetooth
Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App.
Low voltage support

Shelly 1PM Gen3 can control and be powered by 110-240 VAC or 24-30 VDC.

Power metering
Shelly 1PM Gen3 provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Gen3 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety

Enhanced over-temperature protection with software thresholds for prevention of failures.

Enhanced security

MQTT and WSS support, TLS and custom certificates support for a broad range of use.

Improved API interface
Broad range of cloud connections and local integrations with much lower integration cost.

Shelly Gen3.

More memory. More power.
The Gen3 series ensures the quality and reliability of Shelly devices by using their own proprietary, powerful Shelly chipset. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Virtual components.

The Shelly Gen3 Series introduces “virtual components”.  Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.

On the road to Matter.
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.

New.

Perfectly upgraded.

Shelly 1PM Gen3 – the smart switch for efficient appliance / lighting control and energy monitoring, now even more powerful with the new Shelly chip. Perfect for automating lighting, controlling space heaters and monitoring appliances. Shelly 1PM Gen3 features precise power metering and free data storage for detailed analysis of your energy consumption.

Automate.

Create schedules and timers.

The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly 1PM Gen3 will allow you to automate your lights and appliances on a schedule or when certain conditions around your home are met (e.g. smart sensors are triggered).

Shelly Plus 1PM - Automate

Monitor.

Track your power consumption and save money.

You can now monitor and analyse the power consumption of your electrical appliances and lighting. Shelly 1PM Gen3 has an integrated precise power meter that allow you to measure the power consumption and features free data storage for analysis. Help save the environment and save money.

Control.

From anywhere in the World.

With Shelly 1PM Gen3 you can automate lighting and almost any electrical appliance in your home and control it remotely. Shelly 1PM Gen3 can even control appliances with large loads (up to 16A) which makes it perfect for monitoring and control of power hungry appliances.

Shelly Plus 1PM - Control

App Control.

With the best cloud service in the World, user-friendly interface, scenes, bulk control and much more… the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.
Shelly 1 - App Control

Voice control.

Shelly devices are fully compatible with Amazon Alexa and Google Home.
“Hey Google, turn off the bedroom light.”
chuango-h4-lte-voice-google
“Alexa, turn on the lounge heater.”
chuango-h4-lte-voice-alexa

Flexible control.

Shelly Wi-Fi devices can work without a hub… but they are also compatible with…
mqtt
home_seer
openhab
ha
domoticz
iobroker
rest
hubitat
hoobs
symcon
homey
nymea

Full control.

Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.

Shelly - Developers

The finer details

Physical
Dimensions: 37mm x 42mm x 16mm
Weight: 27 grams
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in

Environmental
Temp. Range: -20°C to + 40 °C
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft

Electrical
Power supply AC: 110-230V ±10%, 50/60Hz
Power supply DC: 24 – 30V
Max. switching voltage: 240 V~ / 30 V⎓
Max. switching current: 16 A/240 V~ / 10 A/30 V⎓
Power consumption: < 1.2 W
Neutral wire: Required

Sensors, meters
Internal-temperature sensor: Yes
Voltmeter (AC): Yes
Ammeter (AC): Yes

Special functions
Dry contacts: No
Roller shutter mode: No
Overheat protection: Yes
Overload protection: No
Power measurement: Yes

Connectivity
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Radio frequency: 2401 – 2483 MHz
Wi-Fi Max. RF power: < 20 dBm
Wi-Fi range: Up to 30m indoors (depending on the building materials)
Bluetooth: Yes (4.2 with BLE)
Bluetooth radio frequency: 2400 - 2483.5 MHz
Bluetooth Max. RF power: < 4 dBm
Bluetooth range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Microcontroller unit
CPU: ESP-Shelly-C38F
Flash memory: 8MB

Features
Schedules: Yes - Up to 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
