Impossibly small.

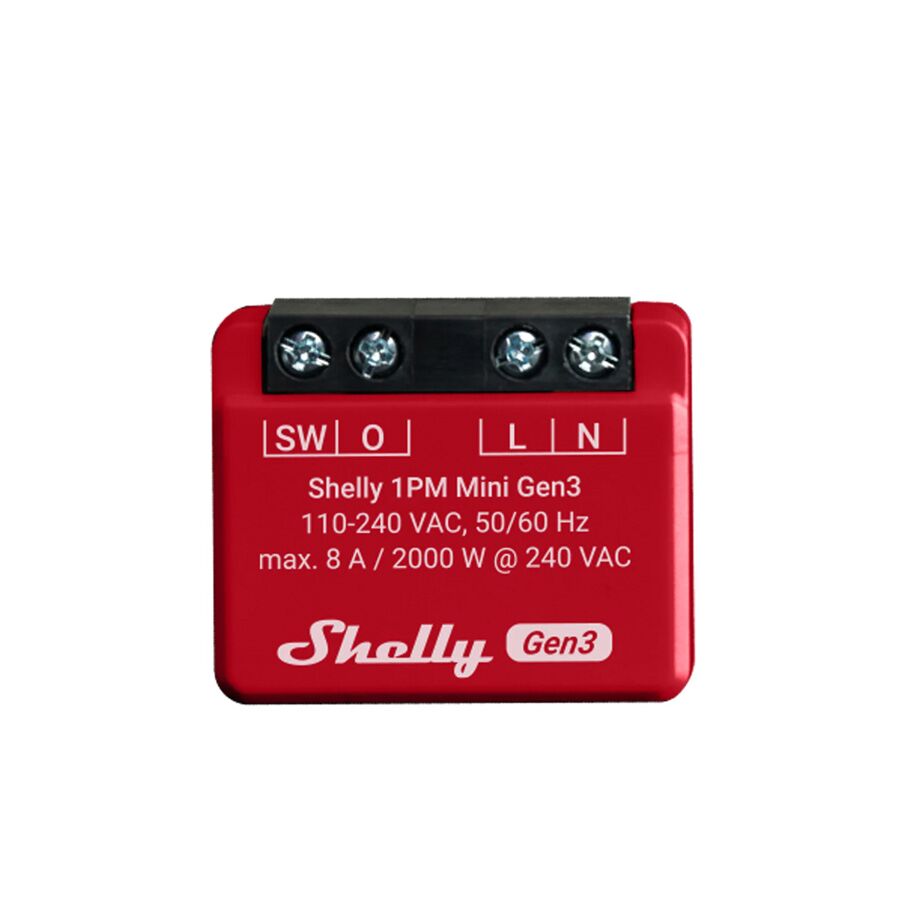

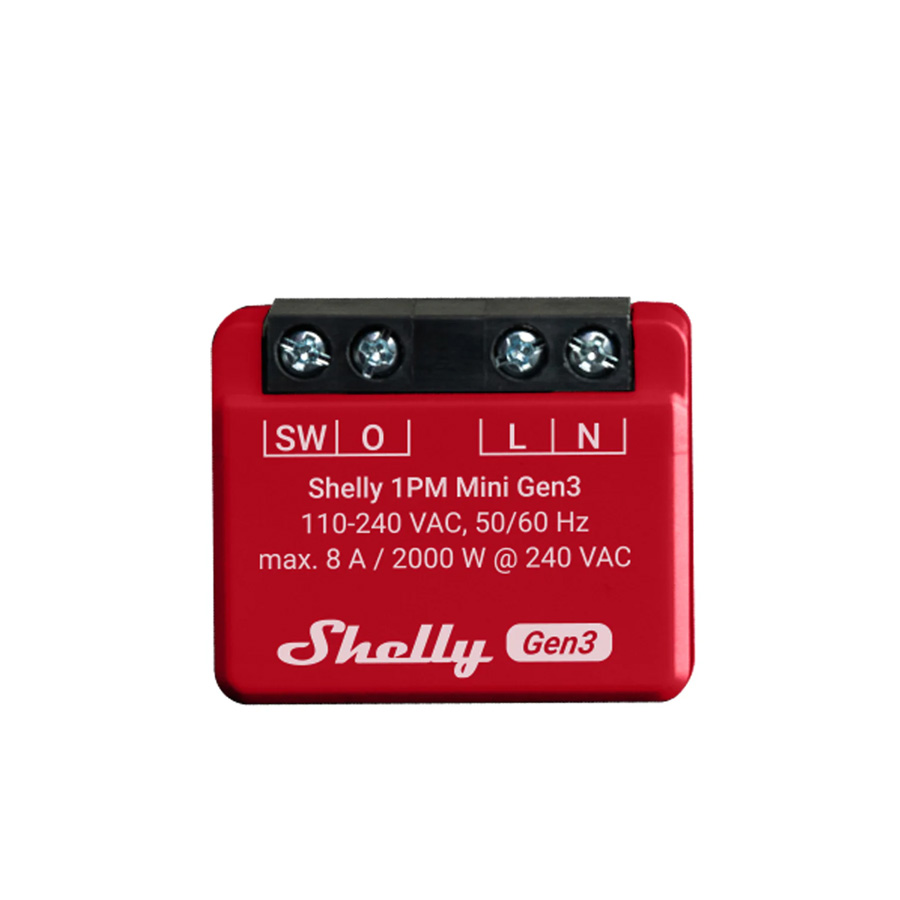

Shelly 1PM Mini Gen3.
Automation and power monitoring of your lights, bathroom fan, any old electrical appliance… virtually anything that turns on or off!
Wi-Fi operated
Connect Shelly 1PM Mini Gen3 directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Power monitoring
Smart schedules
Smart scenes
Set and easily trigger custom scenes by combining Shelly 1PM Mini Gen3 with your other Shelly devices.
Scripting
Shelly 1PM Mini Gen3 fully supports mjS scripting, allowing you to create custom features and functionalities.
PLAY THE VIDEO
Gen3 Series.
More power. More memory. Future proof.
On the road to Matter
More memory, more power
Virtual components
Small.
Thanks to its compact size, Shelly Mini 1PM Gen3 can discreetly fit within the ceiling rose of your lamp or in jammed wall boxes behind switches. Once installed, Shelly Mini 1PM Gen3 enables you to effortlessly control your lights or other appliances using the Smart Control App, your preferred automation platform or voice assistant. And don’t worry – you can still use your light switches manually to suit the needs of everyone in your home.
Monitor.
You can now monitor and analyse the power consumption of your electrical appliances and lighting. Shelly 1PM Mini Gen3 has an integrated precise power meter that allow you to measure the power consumption and features free data storage for analysis. Help save the environment and save money.
Control.
From anywhere in the World.
With Shelly 1PM Mini you can automate lighting and almost any electrical appliance (up to 8A) in your home and control it remotely.
Automate.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly 1PM Mini will allow you to automate your lights and appliances on a schedule or when certain conditions around your home are met (e.g. when your Shelly Door / Window Sensor is triggered).
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Physical Specifications | |
| Dimensions: | 29x34x16 ±0.5 mm |
| Weight: | 18 ±1 grams |
| Temp. Range: | -20 °C to 40 °C |
Power | |
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | No |
| Maximum AC load: | 8A (2000 W) |
| Max switching voltage AC: | 240 V |
| Maximum DC load: | None |
| Max switching voltage DC: | None |
| Power consumption: | < 1.2 W |
| Neutral wire: | Required |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Special functions | |
| Dry contacts: | No |
| Roller shutter mode: | No |
| Overheat protection: | No |
| Overload protection: | No |
| Power measurement: | Yes |
MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash Memory: | 8 MB |
Features | |
| HTTP/HTTPS webhooks: | 20 with 5 URLs per hook |
| Custom scripts(mJs): | Yes |
| MQTT: | Yes |
| UDP: | Yes |
| Channels: | 1 Channel |
| Schedules: | 20 |
| Control: | Local and cloud control |
Connectivity | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2412 – 2484 MHz |
| Signal power: | 1mW |
| Wi-Fi Range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes |
