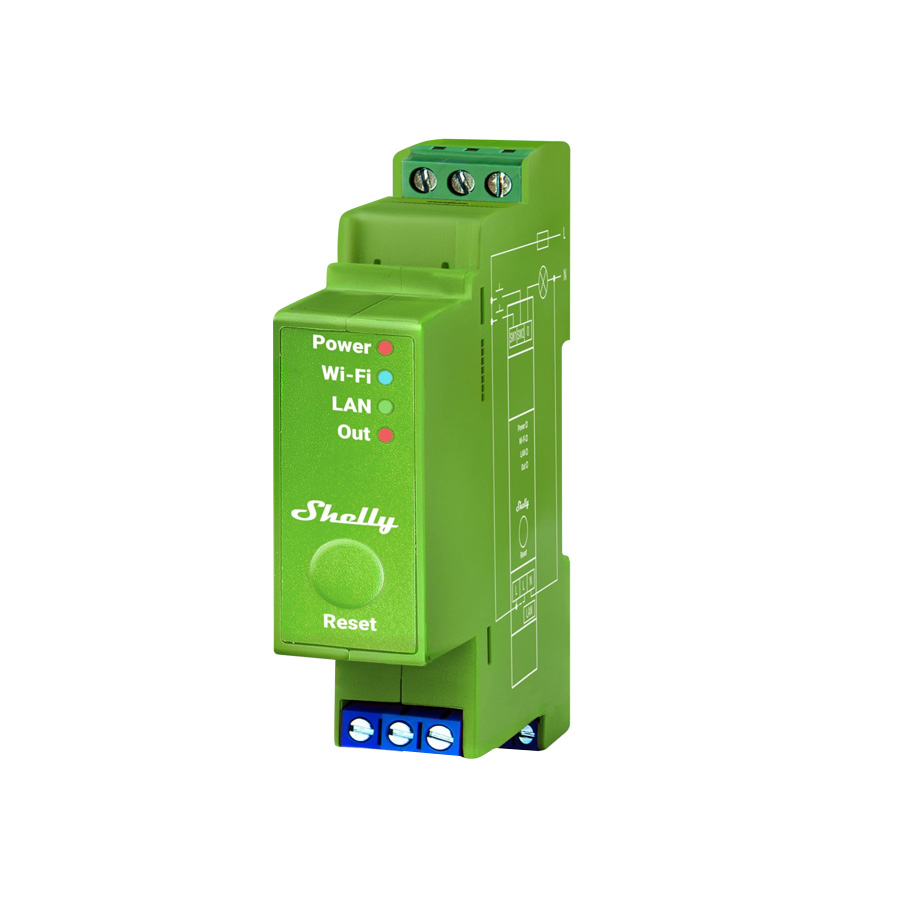

Professional.
DIN-Rail Dimmer.
Wi-Fi or Ethernet
Connect Shelly Pro Dimmer 1PM directly to your network. No Smart Hub required.
Bluetooth
Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App.
DIN Rail mountable
Designed to be mounted in a breaker box on a DIN Rail for a professional installation.
Power monitoring
Shelly Pro Dimmer 1PM provides precise monitoring and measuring of the connected load.
Extremely fast processor
Significantly improved for faster command execution, feedback and notification.
Flexible switch control
Use it with your existing light switches, no matter if they’re single or dual button / switch.
Enhanced security
Solid security with TLS 1.2 support, allowing secure cloud-connected and local integrations.
Improved API interface
Broad range of cloud connections and local integrations with much lower integration cost.
Monitor.
Track your power consumption and save money.
Shelly Pro Dimmer 1PM stands as an ideal solution for various dimming and power-metering needs – from expansive multi-room residences to the sophisticated demands of hotels or office spaces. As part of the professional line series, the device is engineered for seamless integration into a DIN Rail enclosure, which allows you to precisely control and monitor the lights in different rooms. Thus, you can plan your business expenses better, and strategically optimise the energy consumption for enhancing efficiency and cost-effectiveness.
Control.
Smart and manual control.
Shelly Pro Dimmer 1PM gives your fine-tuned control to tailor your lighting to perfection. Set the minimum and maximum brightness levels to match both your personal preferences and the capabilities of your bulbs, ensuring that the lighting in your home is always just right. You can control and dim your lights manually from a connected wall switch – or via your smartphone from anywhere in the World.
Automate.
Create schedules and timers.
The true power of a smart home is in the automations. Not having to touch your phone or use your voice assistant. Shelly Pro Dimmer 1PM will allow you to automate your lights on a schedule or when certain pre-defined conditions around your home are met.
App Control.
With the best cloud service in the World, user-friendly interface, scenes, bulk control and much more… the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.
Voice control.
Shelly devices are fully compatible with Amazon Alexa and Google Home.
“Hey Google, turn off the bedroom light.”
“Alexa, dim the loungeroom light to 50%.”
Flexible control.
Shelly Wi-Fi devices can work without a hub… but they are also compatible with…
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
| Power supply AC: | 110 - 240 V~ 50/60 Hz |
| Power supply DC: | No |
| Maximum load: | 200 W |
| Dimming type: | Trailing edge |
| Device power consumption: | < 2 W |
Special functions | |
| DIN Rail mountable: | Yes |
| Dry contacts: | No |
| Roller shutter mode: | No |
| Device temperature protection: | Yes |
| Overload protection: | Yes |
| Power measurement: | Yes |
| Working without a neutral wire: | No |
Features | |
| Control channels: | 1 On/Off / Dimming Channel |
| Operational temperature: | -20°C to + 40°C |
| Intelligent On/Off: | Yes |
| Local and smart control: | Yes |
| Sunrise/Sunset timer: | Yes |
| Built-in weekly scheduler: | Yes |
Connectivity | |
| Wi-Fi protocol: | 802.11 b/g/n |
| Radio frequency: | 2400 – 2500 MHz |
| Radio signal power: | 1mW |
| Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth: | Yes |
| Ethernet: | Yes |
Dimensions | |
| Size: | 69mm x 19mm x 94mm |
