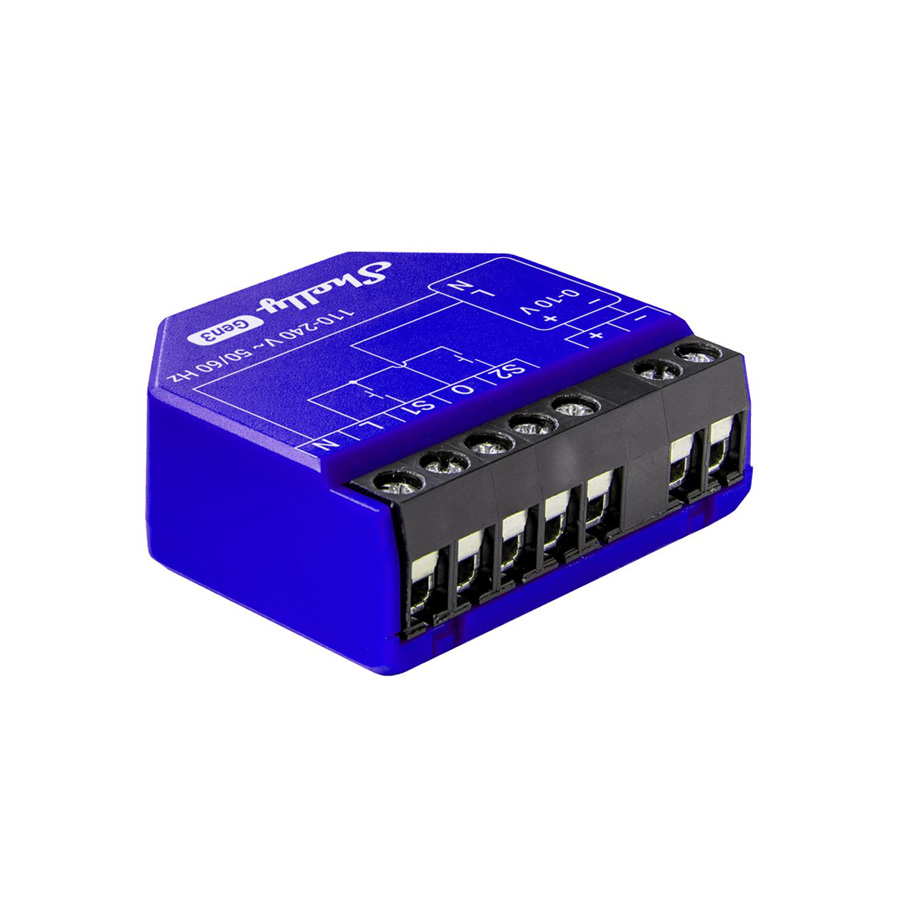

Shelly Dimmer 0/1-10V PM Gen3
$39.00
NEW. Introducing the Shelly’s latest Gen3 0/1-10V Dimmer Wi-Fi module. Control, automation and monitoring of power consumption for 0-10 or 1-10V dimmable lighting and electrical appliances. Connect Shelly Dimmer 0/1-10V PM Gen3 directly to your Wi-Fi network (no HUB required) – or include it in your hub of choice (including Home Assistant).
Please note this is not a standard dimmer module – it works with 0-10V or 1-10V drivers only.
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
0-10 & 1-10V.
Dimmable.
Smart dimming controller supporting 0-10V and 1-10V drivers with power monitoring.
Wi-Fi operated
Connect Shelly 0/1-10V Dimmer Gen3 directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
0-10V & 1-10V
Power metering
Provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Gen3 – Significantly improved for faster command execution, feedback and notification.
Enhanced safety
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
Shelly Gen3.
More memory. More power.
Virtual components.
The Shelly Gen3 Series introduces “virtual components”. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the road to Matter.
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Physical | |
| Dimensions: | 38.5mm x 43.5mm x 17mm |
| Weight: | 28.5 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
Environmental | |
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical | |
| Power supply AC: | 110-230V ±10%, 50/60Hz |
| Power supply DC: | None |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 13 A |
| Max. control current: | 35 mA |
| voltage control type: | 0-10V/1-10V Current sourcing |
| Power consumption: | < 1.5 W |
| Neutral wire: | Required |
Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
Special functions | |
| Dry contacts: | No |
| Roller shutter mode: | No |
| Overheat protection: | Yes |
| Overload protection: | Yes |
| Power measurement: | Yes |
Connectivity | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2401 – 2483 MHz |
| Wi-Fi Max. RF power: | < 20 dBm |
| Wi-Fi range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes (4.2 with BLE) |
| Bluetooth radio frequency: | 2400 - 2483.5 MHz |
| Bluetooth Max. RF power: | < 4 dBm |
| Bluetooth range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit | |
| CPU: | Shelly ESP32 C3 |
| Flash memory: | 8MB |
Features | |
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
