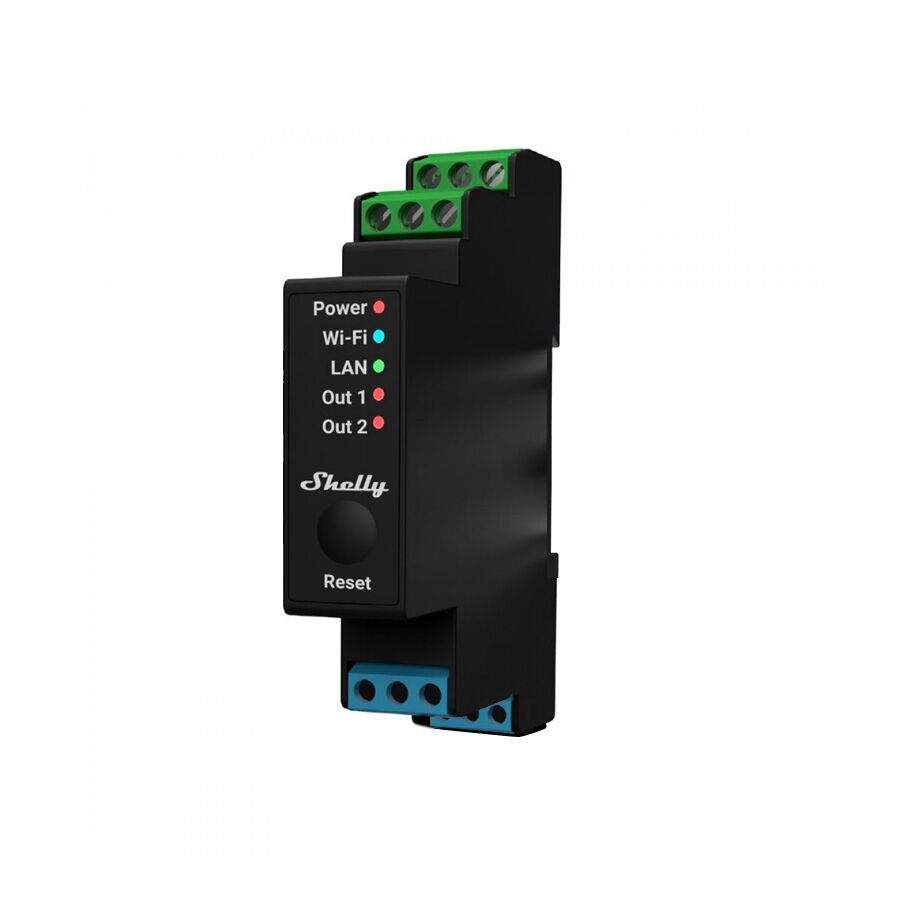

Professional.
Double relay up to 25A.
Wi-Fi or Ethernet
Connect Shelly Pro 2PM directly to your network. No Smart Hub required.
Bluetooth
DIN Rail mountable
Power metering
Shelly Pro 2PM provides precise monitoring of the power consumption of the connected loads.
Extremely fast processor
Enhanced safety
Enhanced security
MQTT and WSS support, TLS and custom certificates support for a broad range of use.
Improved API interface
PLAY THE VIDEO
2 x appliance control.
Shelly Pro 2PM provides independent control of two separate devices and appliances (up to 12.5A for each relay channel).
2 x lighting control.
Control 2 seperate sets of lights and maintain manual control from 2 separate wall-switches (on the same wall-switch plate).
Blinds and awnings.
Instantly add smart control and intelligent automation to any 240V “dumb” motors and awnings.
Power monitoring.
Know your spend – Shelly Pro 2PM will precisely monitor and measure the connected loads power consumption.
Overload protection.
If Shelly Pro 2PM detects the internal temperature or attached power consumption is too high – it will turn off automatically.
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
Power supply AC: | 110-230V ±10%, 50/60Hz |
Power supply DC: | No |
Maximum load: | 2 outputs, 16A each. Total device maximum of 25A |
Device power consumption: | < 3 W |
Special functions | |
DIN Rail mountable: | Yes |
Dry contacts: | No |
Roller shutter mode: | No |
Device temperature protection: | Yes |
Overload protection: | Yes |
Power measurement: | Yes |
Working without a neutral wire: | No |
Features | |
Control channels: | 2 Independent On/Off Relay Channels |
Roller shutter mode: | Yes, with position control (roller shutters, gates, curtains, garage doors, awnings, bi-directional AC motors) |
Operational temperature: | -20°C to + 40°C |
Intelligent On/Off: | Yes |
Local and smart control: | Yes |
Sunrise/Sunset timer: | Yes |
Built-in weekly scheduler: | Yes |
Connectivity | |
Wi-Fi protocol: | 802.11 b/g/n |
Radio frequency: | 2400 – 2500 MHz |
Radio signal power: | 1mW |
Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth: | Yes |
Ethernet: | Yes |
Dimensions | |
Size: | 68.5mm x 18.5mm x 89.5mm |
