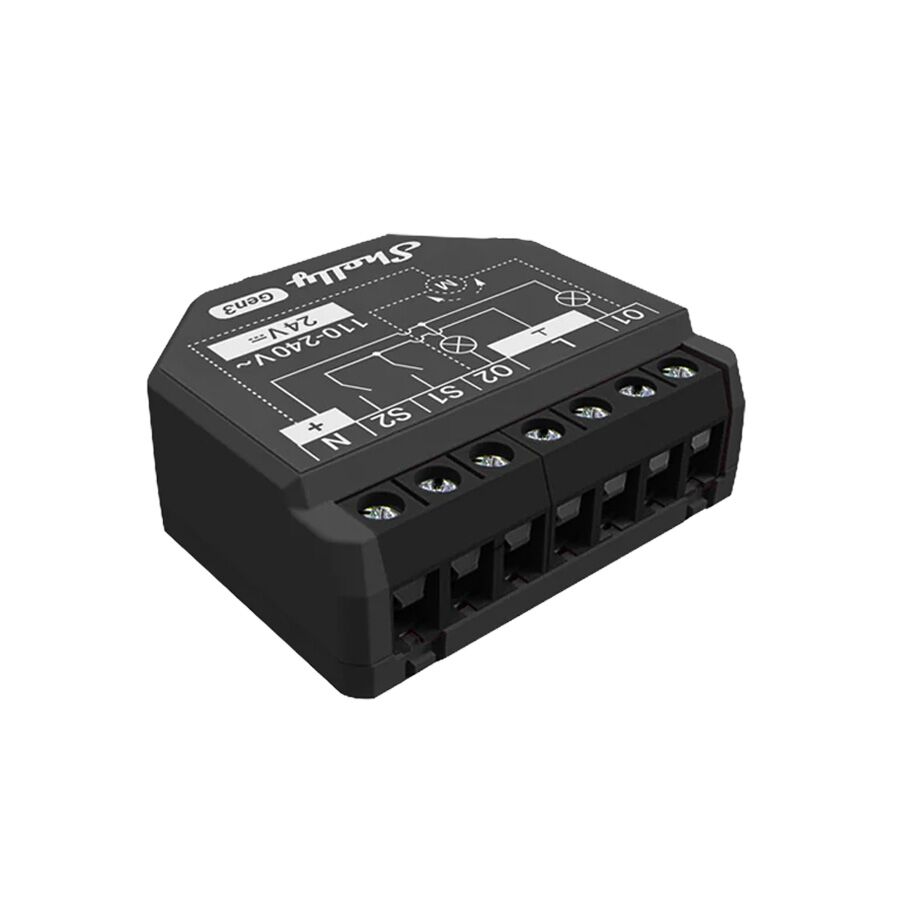

Shelly 2PM Gen3 Wi-Fi Double Relay and Motor Controller
$45.00
NEW. Introducing the latest Gen3 version of Shelly’s most popular dual channel Wi-Fi module… Shelly 2PM Gen3. Easily add smart, independent on /off control to 2 separate electrical circuits and monitor the connected load’s power consumption. Or control a wide range of motorised blinds, shutters or awnings from anywhere with the World’s smallest WiFi-operated double relay switch with roller shutter functionality. Connect Shelly 2PM Gen3 directly to your Wi-Fi network (no HUB required) – or include it in your hub of choice (including Home Assistant).
COMING SOON: Expected early January 2025
Out of stock
Found this product at a lower price?FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
SHELLY 2PM Gen3.
Smarter and more powerful.
Wi-Fi operated
Connect Shelly 2PM Gen3 directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Low voltage support
Power metering
Shelly 2PM Gen3 provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Motor control
Improved API interface
Shelly Gen3.
More memory. More power.
Virtual components.
The Shelly Gen3 Series introduces “virtual components”. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the road to Matter.
New.
Perfectly upgraded.
2 x appliance control.
2 x lighting control.
Control 2 seperate sets of lights and maintain manual control from 2 separate wall-switches (on the same wall-switch plate).
Blinds and awnings.
Power monitoring.
Overload protection.
If Shelly 2PM Gen3 detects the internal temperature or attached power consumption is too high – it will turn off automatically.
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Physical | |
| Dimensions: | 37mm x 42mm x 16mm |
| Weight: | 30 grams |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
Environmental | |
| Temp. Range: | -20°C to + 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical | |
| Power supply AC: | 110-240V ±10%, 50/60Hz |
| Power supply DC: | 24V ±10% |
| Max. switching voltage: | 240 V~ / 30 V⎓ |
| Max. switching current: | 10 A (per channel), 16 A (total), 18 A (total peak) / 10 A/30 V⎓ |
| Power consumption: | < 1.4 W |
| Neutral wire: | Required |
Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
Special functions | |
| Dry contacts: | No |
| Roller shutter mode: | Yes |
| Overheat protection: | Yes |
| Overload protection: | Yes |
| Power measurement: | Yes |
Connectivity | |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2401 – 2483 MHz |
| Wi-Fi Max. RF power: | < 20 dBm |
| Wi-Fi range: | Up to 30m indoors (depending on the building materials) |
| Bluetooth: | Yes (4.2 with BLE) |
| Bluetooth radio frequency: | 2400 - 2483.5 MHz |
| Bluetooth Max. RF power: | < 4 dBm |
| Bluetooth range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit | |
| CPU: | ESP-Shelly-C38F |
| Flash memory: | 8MB |
Features | |
| Schedules: | Yes - Up to 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
