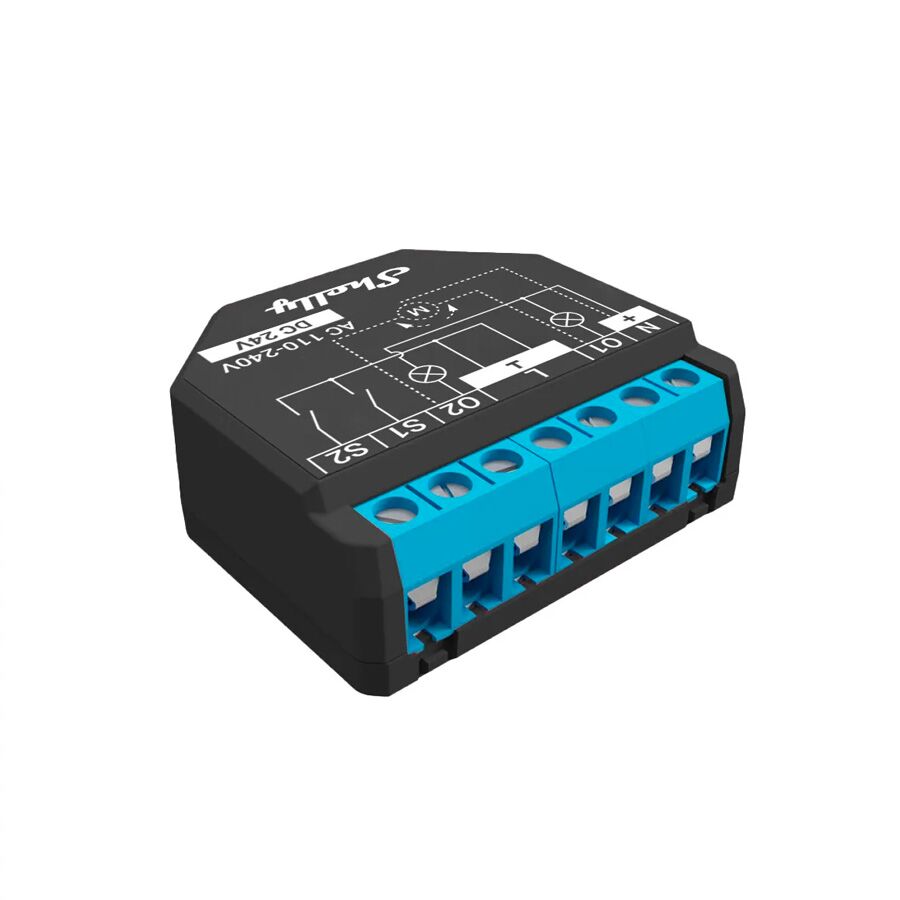

SHELLY 2PM Plus.
20% more powerful. 30% smaller. 50% increased range.
Wi-Fi operated
Connect Shelly 2PM Plus directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Low voltage support
Power metering
Shelly 2PM Plus provides precise monitoring of the power consumption of the connected load.
Extremely fast processor
Enhanced safety
Enhanced over-temperature protection with software thresholds for prevention of failures.
Motor control
Improved API interface
2 x appliance control.
Shelly 2PM Plus provides independent control of two separate devices and appliances (up to 10A for each relay channel – 16A total) – Supports low voltage 24DC and 240V AC.
2 x lighting control.
Control 2 seperate sets of lights and maintain manual control from 2 separate wall-switches (on the same wall-switch plate).
Blinds and awnings.
Power monitoring.
Know your spend – Shelly 2PM Plus will precisely monitor and measure the connected loads power consumption.
Overload protection.
If Shelly 2PM Plus detects the internal temperature or attached power consumption is too high – it will turn off automatically.
App Control.
Voice control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
Power supply AC: | 110-240V ±10%, 50/60Hz |
Power supply DC: | 24 V ±10% |
Maximum load: | 10A per channel (16A total) |
Device power consumption: | < 1.4 W |
Special functions | |
Dry contacts: | No |
Roller shutter mode: | Yes |
Device temperature protection: | Yes |
Overload protection: | Yes |
Power measurement: | Yes |
Working without a neutral wire: | No |
Features | |
Control channels: | 2 independant on/off relay channel |
Operational temperature: | -20°C to + 40°C |
Intelligent On/Off: | Yes |
Local and smart control: | Yes |
Sunrise/Sunset timer: | Yes |
Built-in weekly scheduler: | Yes |
Connectivity | |
Wi-Fi protocol: | 802.11 b/g/n |
Radio frequency: | 2400 – 2500 MHz |
Radio signal power: | 1mW |
Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Dimensions | |
Size: | 42mm x 38mm x 17mm |
