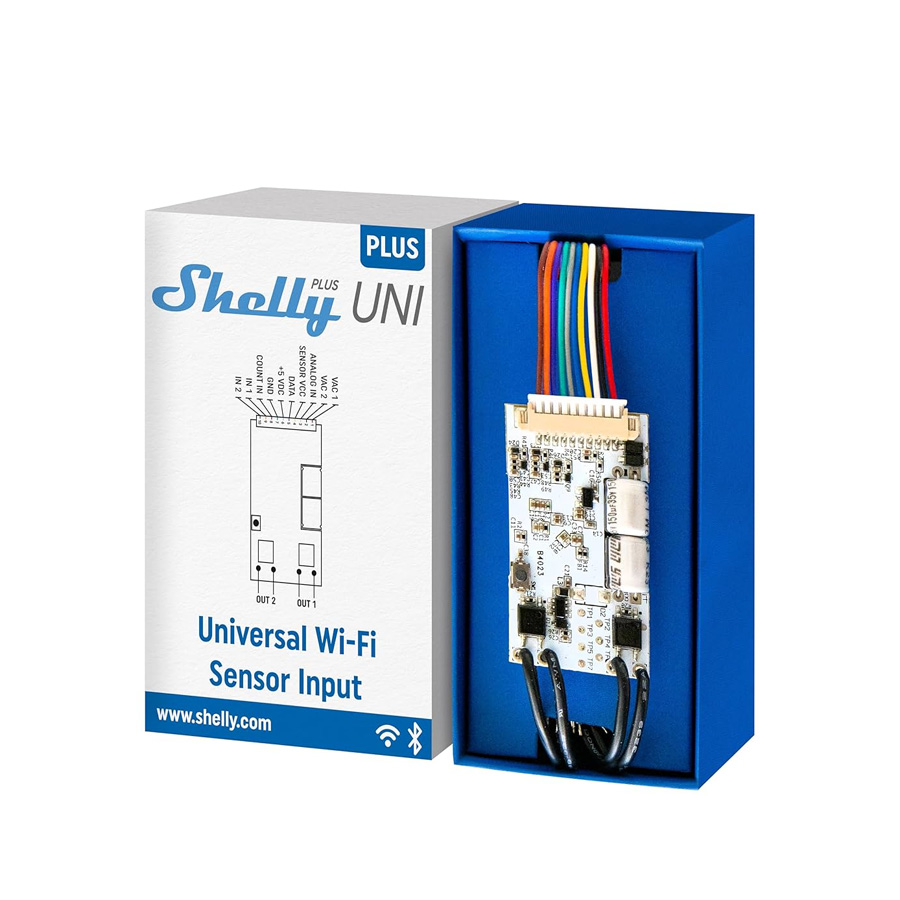

Shelly Plus Uni Wi-Fi Implant
Original price was: $39.00.$30.00Current price is: $30.00.
The Shelly Plus Uni is a versatile little Wi-Fi device designed for low voltage DIY projects. Includes 2 digital and 1 analogue inputs as well as 2 potential free low-voltage (dry contact) outputs. Receive precise data readings from your energy/gas/water meter (or any other meter that supports pulse count readings via external sensors). Measuring just 39 x 21 x 8mm, it has been designed to fit almost anywhere… Set your imagination free and make dumb sensors and appliances smart.
FREE EXTENDED WARRANTY
SMARTHOME REWARD POINTS
FAST DELIVERY - FREE OVER $199
SHELLY Uni Plus.
Smart DIY Implant.
Wi-Fi operated
Easily connect Shelly Plus Uni Plus directly to your Wi-Fi network. No Smart Hub required.
Bluetooth
Easy setup via Bluetooth or use it as a Bluetooth gateway for Shelly Blu devices.
Sensor support
Pulse counting
Receive precise data readings from your energy/gas/water meter via pulse counting.
Dry contacts
Precise Voltmeter
Scripting
Incredibly small
Measuring a tiny 39mm (w) x 21mm (h) x 8mm (d) – Shelly Plus Uni can fit almost anywhere.
Small.
Measuring a minuscule 39mm (w) x 21mm (h) x 8mm (d), this tiny device can fit almost everywhere you like.
Monitor.
The dual inputs allow you to connect almost any analog sensors and measure them. Water tank levels, wind speed, rain gauges…
Control.
Includes 2 “dry-contact” outputs that can switch up to 36VDC and 100 mA. Control garage doors, gates, solenoids, appliances…
Fun.
You will be amazed by what you can automate and monitor with Shelly Plus Uni. Doorbells, the mailbox, pet doors, chicken gates…
Count.
App Control.
Flexible control.
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power | |
| Power supply AC: | 8-24 VAC |
| Power supply DC: | 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND) |
| Device power consumption: | < 1 W |
Special functions | |
| Digital inputs resistance: | 50 kΩ |
| Digital inputs triggering voltage: | 1.5 V (active low level) |
| Dry contacts: | Yes |
| Max switching voltage: | 30 V |
| Max switching current: | 250 mA |
| Voltmeter: | 0-15 VDC / 0-30 VDC (Two-range) |
| Pulse counter triggering voltage: | 1.5 V (active low level) |
| Pulse counter max frequency: | 1 kHz |
| External sensors supported: | Single DHT22 or up to five DS18B20 |
Connectivity | |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Radio frequency: | 2400 – 2500 MHz |
| Wi-Fi Radio signal power: | 1mW |
| Wi-Fi Wireless range: | Up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth version: | 4.2 |
| Bluetooth range: | Up to 30m outdoors / 10m indoors |
Dimensions | |
| Size: | 39mm x 21mm x 9mm |
OPTIONAL ACCESSORIES
2 Wire Magnetic Reed Switch
Shelly Temperature Sensor DS18B20 (1m or 3m)
FROM OUR BLOG
How to use Shelly Wall Display with Home Assistant
An introduction to Shelly Wi-Fi smart devices
Shelly wireless 2-way switch
How to create Shelly scenes and schedules
Shelly Wi-Fi Setup & Troubleshooting Guide
Free Shelly Quick Apps for Fibaro Home Center 3
1 review for Shelly Plus Uni Wi-Fi Implant
Product Questions & Answers
There are no questions yet. Be the first to ask a question about this product.
Steven (verified owner) –
The analogue input doesn’t display by default and you have to add the sensor types as a peripheral. Took me a bit of googling to work out as the old uni model just worked out of the box.
WIFI signal is extremely poor. I would not buy one again due to this reason. I had to install a Shelly Plus1PM in the same enclosure and use that as a WIFI extender for the plus uni.
It appears to work well when its in very close proximity to the WIFI access point.
